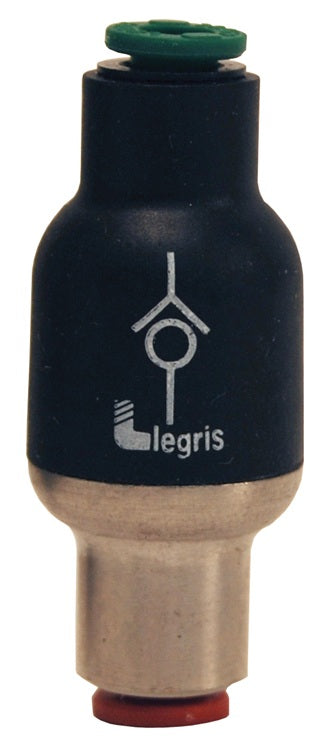

79960800 by Dixon Valve | Legris Non-Return In-Line Check Valve | 5/16" Tube OD | Nylon / Nickel-Plated Brass

79960800 by Dixon Valve | Legris Non-Return In-Line Check Valve | 5/16" Tube OD | Nylon / Nickel-Plated Brass

Save $3.76 Save $3.76
$40.32
$40.32 - $40.32
$40.32
$36.56
$36.56 - $36.56
$36.56

Dixon Valve & Coupling
Legris Check Valve | Non-Return In-Line

Allows air to pass in one direction while blocking flow in the other direction, a pressure of more than 7 PSI will overcome the spring pressure and allow flow.
Specifications for Variant SKU: 79960800 Dixon
Brand: Legris
Shape (Orientation): Straight
Material(s): Nylon, Nickel-Plated Brass
Features:
  • Arrow indicates free flow direction.
Materials:
  • Body: nylon/nickel-plated brass
  • Seal: Nitrile
Specifications:
  • Maximum operating pressure: 145 PSI at ambient temperature 70°F (21°C)
  • Temperature Range: 34°F to 150°F (1.1°C to 6.5°C)
  • Pressure Range: 15 to 145 PSI
Part Number Tube O.D.
79960400 5/32"
79960600 6mm
79965600 1/4"
79960800 5/16"
