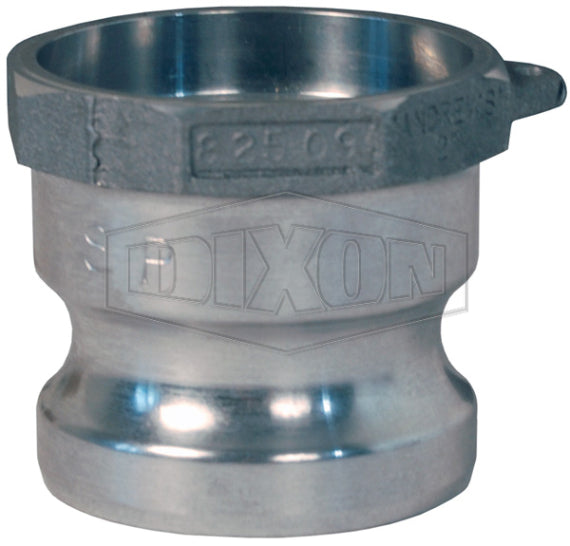

800AWSPAL by Dixon Valve | Cam & Groove Adapter for Welding | 8" Adapter Socket Weld x Schedule 40 Pipe | Aluminum

800AWSPAL by Dixon Valve | Cam & Groove Adapter for Welding | 8" Adapter Socket Weld x Schedule 40 Pipe | Aluminum

Save $34.14 Save $34.14
$307.23
$307.23 - $307.23
$307.23
$273.09
$273.09 - $273.09
$273.09

Dixon Valve
Cam & Groove Adapter for Welding | Adapter Socket Weld x Schedule 40 Pipe

Designed for use with liquids.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 800AWSPAL Dixon
Shape (Orientation): Straight
Ends Configuration: 8in Weld End, 8in Weld End, Some Ends Match
Material(s): Aluminum
Safety Notes:
  • Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Final weld preparation, as with all weld fittings, is the responsibility of the welder.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size Bore Maximum Operating Pressure
- 75AWSPSS 3/4" 1.065" 250 PSI
- 100AWSPSS 1" 1.330" 250 PSI
150AWSPAL 150AWSPSS 1-1/2" 1.915" 250 PSI
200AWSPAL 200AWSPSS 2" 2.390" 250 PSI
300AWSPAL 300AWSPSS 3" 3.530" 125 PSI
400AWSPAL 400AWSPSS 4" 4.530" 100 PSI
500AWSPAL 500AWSPSS 5" 5.593" 75 PSI
600AWSPAL 600AWSPSS 6" 6.655" 75 PSI
800AWSPAL - 8" 8.711" 50 PSI
