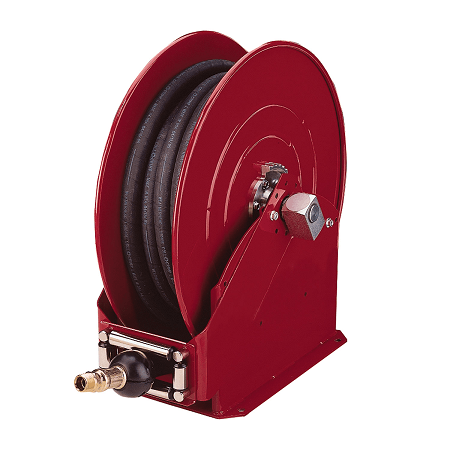

8080-C by Alemite | High Capacity Reel | Air/Water | Reel Inlet: 1/2" Female NPTF | Delivery Hose Outlet: 1/2" Male NPTF | Delivery Hose Specification: 1/2" x 80ft (317811-80) | Max Pressure: 300 PSI

8080-C by Alemite | High Capacity Reel | Air/Water | Reel Inlet: 1/2" Female NPTF | Delivery Hose Outlet: 1/2" Male NPTF | Delivery Hose Specification: 1/2" x 80ft (317811-80) | Max Pressure: 300 PSI

Save $268.50 Save $268.50
$2,416.51
$2,416.51 - $2,416.51
$2,416.51
$2,148.01
$2,148.01 - $2,148.01
$2,148.01

PRODUCT DESCRIPTION

Alemite High Capacity Reel - Air/Water
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 8080-C Alemite
Applications,
  • Alemite High Capacity Reels offer high volume delivery in the most extreme outdoor conditions. The high capacity flow passage reduces fill rate time, improving efficiency and helping reduce cost.
Features,
  • Superior Performance - Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time.
  • Anti-Lockout Design - Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel.
  • Corrosion Resistant - Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments. Sealed rollers eliminate contamination which can bind hose guide rollers.
  • Easy Installation and Maintenance - Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy. Outlet port swivel nut makes installing delivery hose quick and easy.
  • Strong and Stable - Double arm design provides extra support for a larger hose during use. Four corner bolt hole pattern on outside of base provides extra stability.
  • Compatibility - Oil, air, water, fuel
  • INCLUDED ITEMS,
  • Hose Reel, Delivery Hose and Hose Stop

Part Number Bare Reel Max Pressure Delivery Hose
Specification		 Reel Inlet Delivery Hose Outlet Weight
8080-C 7341 300 PSI 1/2" x 80' (317811-80) 1/2" NPTF(f) 1/2" NPTF(m) 115 Lb.
8080-D 7341 300 PSI 1/2" x 100' (317811-100) 1/2" NPTF(f) 1/2" NPTF(m) 125 Lb.
