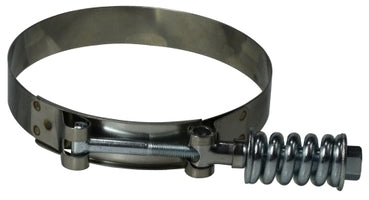

844363 (844-363) Midland Spring Loaded T-Bolt Hose Clamp - 3/4" Width - Clamp Range: 3.63" to 3.94" - 300 Stainless Steel Band / Zinc Plated Carbon Steel T-Bolt

844363 by Midland | Spring Loaded T-Bolt Hose Clamp | 3/4" Width | Clamp Range: 3.63" to 3.94" | 300 Stainless Steel Band / Zinc Plated Carbon Steel T-Bolt

Save $0.51 Save $0.51
$5.82
$5.82 - $5.82
$5.82
$5.31
$5.31 - $5.31
$5.31

Midland Industries
Spring Loaded T-Bolt Hose Clamp - 300 Stainless Steel Band / Zinc Plated Carbon Steel T-Bolt

Purpose: To provide constant tension performance to compensate for the expansion and contraction when temperatures fluctuate. Provides high strength and a 360° seal. Tighten with a 7/16" wrench or hex nutdriver.

Services: Designed for use in high vibration and large diameter applications common in heavy trucks, industrial machinery, off road equipment, agricultural irrigation and machinery, for air intake and coolant adapter.

Per SAE standard J1508 Type "SLTB".

This product will take 2-3 Weeks minimum to ship.

Inventory @ Manufacturers Warehouse: 244 Units
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 844363 Midland
Material(s): 300 Stainless Steel, Zinc Plated Carbon Steel
Applicable Specs & Approvals: SAE J1508
Clamp Width: 0.75
Minimum Clamp I.D.: 3.63
Maximum Clamp I.D.: 3.94
Features:
  • .025" Band Thickness
  • 3/4 (19mm) band width
  • Heavy duty springs
  • Band Material: 300 stainless
  • T-bolt: Carbon steel with zinc plating
  • Housing (Bridge): 300 Stainless
  • Hex nut: Carbon Steel, Nylon insert
  • Torque rating: 150 in-lbs (8.5 mm)
Part Number SAE # Clamp Range
Min-Max		 Weight
(Lbs.)
844213
(844-213)		 40 2.13" - 2.44" 0.170
844225
(844-225)		 44 2.25" - 2.56" 0.174
844238
(844-238)		 48 2.38" - 2.69" 0.179
844250
(844-250)		 52 2.50" - 2.81" 0.181
844263
(844-263)		 56 2.63" - 2.94" 0.183
844275
(844-275)		 60 2.75" - 3.06" 0.185
844300
(844-300)		 68 3" - 3.31" 0.187
844306
(844-306)		 70 3.06" - 3.38" 0.190
844313
(844-313)		 72 3.13" - 3.44" 0.192
844325
(844-325)		 76 3.25" - 3.56" 0.194
844338
(844-338)		 80 3.38" - 3.69" 0.196
844350
(844-350)		 84 3.50" - 3.81" 0.196
844356
(844-356)		 86 3.56" - 3.88" 0.196
844363
(844-363)		 88 3.63" - 3.94" 0.198
844375
(844-375)		 92 3.75" - 4.06" 0.198
844406
(844-406)		 102 4.06" - 4.38" 0.203
844413
(844-413)		 104 4.13" - 4.44" 0.209
844425
(844-425)		 108 4.25" - 4.56" 0.214
844456
(844-456)		 118 4.56" - 4.88" 0.216
844500
(844-500)		 132 5" - 5.31" 0.218
844525
(844-525)		 140 5.25" - 5.56" 0.220
844600
(844-600)		 164 6" - 6.31" 0.223
844625
(844-625)		 172 6.25" - 6.56" 0.225
