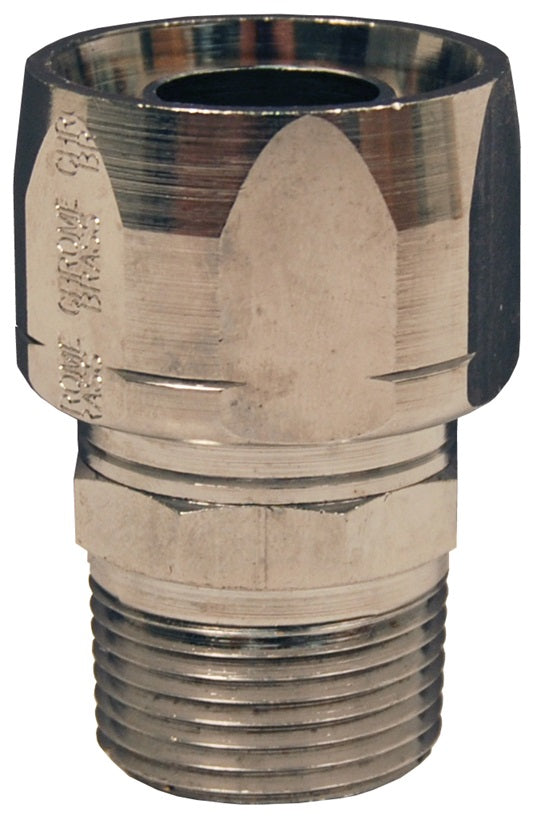

850453 by Dixon Valve | Holedall® Dubl-Grip | Field Attachable Coupling for Curb Pump Hose | Non-Swivel | 3/4" Hose ID | 3/4" Male NPT | 1-1/4" Hose OD | Chrome Plated Brass

850453 by Dixon Valve | Holedall® Dubl-Grip | Field Attachable Coupling for Curb Pump Hose | Non-Swivel | 3/4" Hose ID | 3/4" Male NPT | 1-1/4" Hose OD | Chrome Plated Brass

Save $2.54 Save $2.54
$22.89
$22.89 - $22.89
$22.89
$20.35
$20.35 - $20.35
$20.35

Dixon Valve
Holedall® Dubl-Grip Field Attachable Non-Swivel Couplings for Curb Pump Hose

Streamlined design prevents damage to hose and fits well on new pump equipment.
Specifications for Variant SKU: 850453 Dixon
Brand: Holedall
Series: Dubl-Grip
Shape (Orientation): Straight
Material(s): Chrome Plated Brass
Features:
  • Two-piece construction.
  • Streamline design prevents damage to the hose and fits well on new pump equipment.
  • Wide, flat surfaces of body threads protect inside of hose from breaking.
  • Tapered surfaces of sleeve and body cradle hose, prevent one-point strain from flexing.
  • Hose is gripped on its full circumference in two places, ensuring a rigid leak-proof connection.
  • Couplings have standard male NPT threads.
Installation:
  • Easy assembly: hose is held in position by sleeve as body is threaded home, only a wrench is required to assemble the Dubl-Grip®.
Safety Notes:
  • Reattach static wire if required.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
Specifications:
  • UL recognized
Swivel
Chrome Plated Brass
Part Number		 Non-Swivel
Chrome Plated Brass
Part Number		 Hose ID Male NPT Hose OD
H603 850451 3/4" 3/4" 1-1/8"
H604 850455 3/4" 3/4" 1-13/64"
H605 850453 3/4" 3/4" 1-1/4"
H609* 850841* 1" 1" 1-3/8"
H610* 850801* 1" 1" 1-7/16"
H611* 850811* 1" 1" 1-1/2"

* Octagonal shape

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
