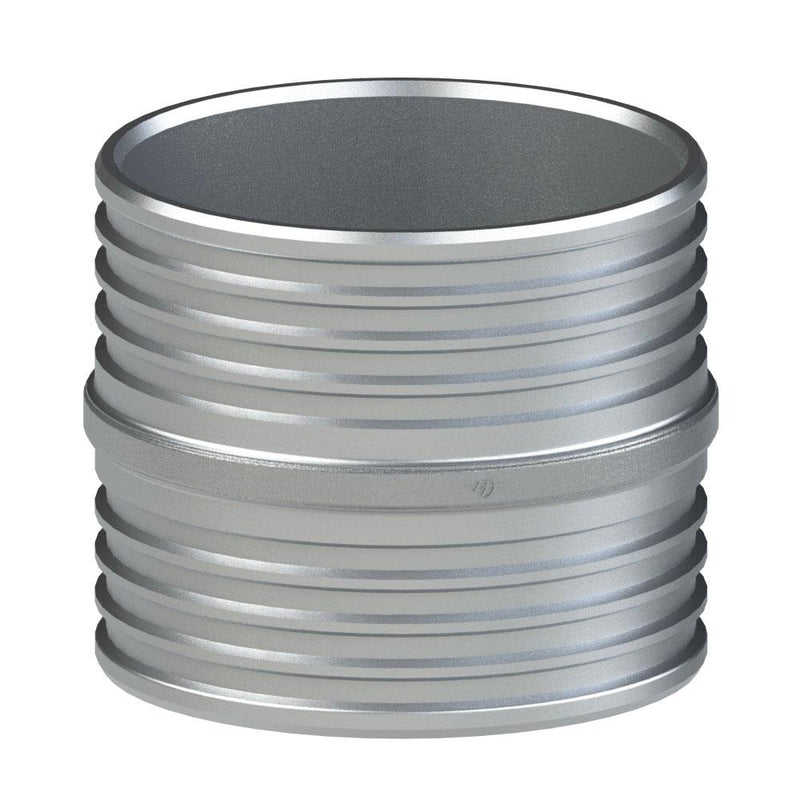

856610001 (PTHM1000HD2) by PT-Coupling | PTHM Series | Lay-Flat Fluid Transfer Fitting | Hose Mender | 10" HD2 Shank x 10" HD2 Shank | Aluminum

Save $379.69

$1,022.88

$1,022.88 - $1,022.88

$1,022.88

$643.19

$643.19 - $643.19

$643.19

PT Coupling
Lay-flat Fluid Transfer System | PTHM Series | Hose Mender | HD2 Shank x HD2 Shank/p>

PT COUPLING's new HD2 fluid transfer system offers a quick and economical way to use lay-flat hose in the transfer of fluid.

Made in the USA.

Specifications for Variant SKU: 856610001 PT-Coupling
Shape (Orientation):	Straight
Ends Configuration:	10in Hose Barb, 10in Hose Barb, Some Ends Match
Material(s):	Aluminum

Overview:
PT COUPLING COMPANY's new HD2 fluid transfer system offers a quick and economical way to use lay-flat hose in the transfer of fluid. These aluminum products utilized Victaulic® groove connections and HD2 hose shanks. The lay-flat hose is connected to the HD2 bodies by use of segmented bolt clamps or grooved crimp sleeves. HD2 System parts are available in 6 inch through 12 inch sizes. PT USA has developed new fittings for 6", 8", 10" & 12" lay-flat hose to be used in the fracking industry for water delivery. Fittings are field serviceable
Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Made in the USA

Part Name	Item #	Size	PSI
PTHM1000HD2	856610001	10"	150 PSI
PTHM1200HD2	856612001	12"	150 PSI

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
