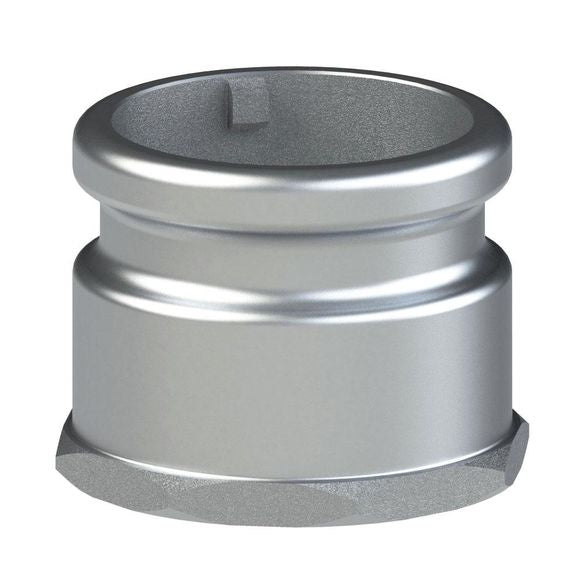

86344000A (TF40LC) by PT-Coupling | Petroleum Handling Tank Adapter | Type TFAS | Tank Fill Adapter x 4" Female NPSH Straight Thread | Buna-N Fuel Gasket | Aluminum

86344000A (TF40LC) by PT-Coupling | Petroleum Handling Tank Adapter | Type TFAS | Tank Fill Adapter x 4" Female NPSH Straight Thread | Buna-N Fuel Gasket | Aluminum

Save $41.06 Save $41.06
$110.62
$110.62 - $110.62
$110.62
$69.56
$69.56 - $69.56
$69.56

PT Coupling
Petroleum Handling Tank Adapter | Type TFAS | Tank Fill Adapter x Female NPSH Straight Thread

Made in the USA.
Specifications for Variant SKU: 86344000A PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Aluminum:
    • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
    • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Brass:
    • Good corrosion resistance, less expensive than stainless steel. Softer and easier to thread than stainless steel and forms tight seals.
    • Ideal for use with water. Can also be used with hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA
Part
Name		 Item # Material Size Description
TFSAS - Tank Adapter 4" NPSH Straight Thread - For use with UTF40, VR400A & UVR400
Comes standard with a NPSH Straight PipeThread Buna N Gasket Fuel.
TF40SAS 86344000B Brass 4" with Internal Lug
TFAS - Tank Fill Adapter X 4" Female NPSH Straight Thread - For use with UTF40, VR400A & UVR400
Comes standard with a NPSH Straight PipeThread Buna N Gasket Fuel.
TF40LC 86344000A Aluminum 4" -
TF40LC 86294000 Brass 4" -
SSA - Side Seal Coupler x Top Seal Tank Adapter - For use with UTF40, VR400A & UVR400
Comes standard with a NPSH Straight PipeThread Buna N Gasket Fuel.
40X40SSA 5007040A Aluminum 4" Lever Assembly
40X40SSA 86354040 Aluminum 4" Side Seal Adapter

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
