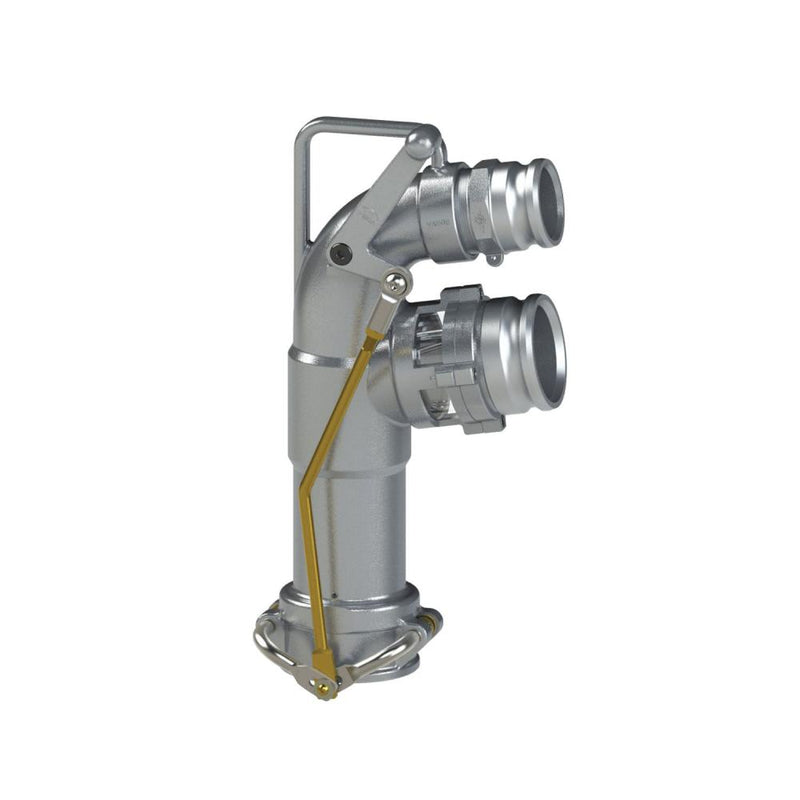

88000400 (VR400A) by PT-Coupling | Petroleum Handling Single Point Vapor Recovery Elbow (Coaxial Delivery Elbow | Vapor Top, Product Bottom) with 4" Adapter

88000400 (VR400A) by PT-Coupling | Petroleum Handling Single Point Vapor Recovery Elbow (Coaxial Delivery Elbow | Vapor Top, Product Bottom) with 4" Adapter

Save $410.42 Save $410.42
$1,105.65
$1,105.65 - $1,105.65
$1,105.65
$695.23
$695.23 - $695.23
$695.23

PT Coupling
Petroleum Handling Single Point Vapor Recovery Elbow (Coaxial Delivery Elbow | Vapor Top, Product Bottom) with 4" Adapter

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 88000400 PT-Coupling
Shape (Orientation): Straight
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Handle does not require a locking feature (cams over center).
  • Adjustable linkage, (linkage can be adjusted in the field, for older worn adapters).
  • Brass Cams are solid (no rollers).
  • All PT elbows have interchangable Cam Arm Assembly Kits
  • Half the moving/replacement parts, lightest weight in the industry.
    • Weight: VR400A 17.7 lb
  • Made in the USA
Part
Name		 Item # Description
VR400A 88000400 with 4" Adapter
Optional Parts
Part
Name		 Item # Description
TF30X40AF 86133040 3" Adapter x 4" Flange
TF30X40CF 86383040 3" Coupler x 4" Flange
TF40CF 86384000 4" Coupler x 4" Flange
TF40TF 86394000 4" Female NPT Thread x 4" Flange
Repair Parts List
Ref # Item # Description
3 86004120 UTF40 Cam Assembly Kit
7 86004002 1/2" Thick Fuel Gasket
8 86004108 Actuation Lever Bolt
11 86004123 Sight Glass Kit
12 86004122 Capscrew Kit
13 5504230 B30ASY Buna Fuel Resistant Gasket
14 88000420 VR400A Tube Seal Kit
16 88000424 VR 424 Set Screw
18 86004014 TF40AF Alum Adapter
19 1000630 30F Alum Adapter
