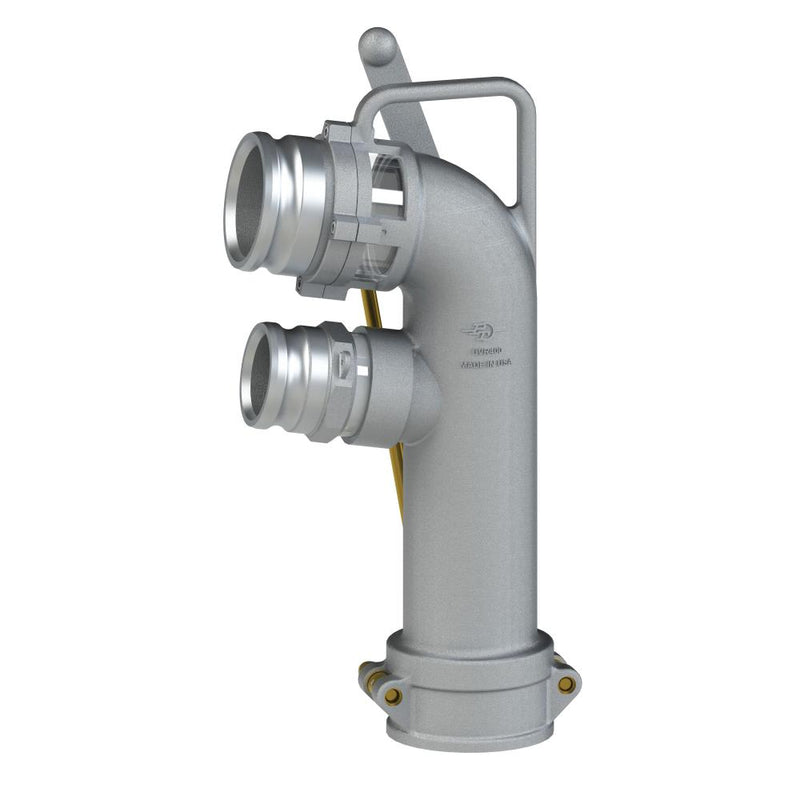

88004040C (UVR400) by PT-Coupling | Petroleum Handling Single Point Vapor Recovery Elbow (Coaxial Delivery Elbow | Product Top, Vapor Bottom) with 4" Coupler

88004040C (UVR400) by PT-Coupling | Petroleum Handling Single Point Vapor Recovery Elbow (Coaxial Delivery Elbow | Product Top, Vapor Bottom) with 4" Coupler

Save $525.87 Save $525.87
$1,416.67
$1,416.67 - $1,416.67
$1,416.67
$890.80
$890.80 - $890.80
$890.80

PT Coupling
Petroleum Handling Single Point Vapor Recovery Elbow (Coaxial Delivery Elbow | Product Top, Vapor Bottom)

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 88004040C PT-Coupling
Shape (Orientation): Straight
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Handle does not require a locking feature (cams over center).
  • Adjustable linkage, (linkage can be adjusted in the field, for older worn adapters).
  • Brass Cams are solid (no rollers).
  • All PT elbows have interchangable Cam Arm Assembly Kits
  • Half the moving/replacement parts, lightest weight in the industry.
    • Weight: UVR400 16.8 lb lb
  • Made in the USA
Part
Name		 Item # Description
UVR400 88004000 with 4" Adapter (Standard)
UVR400 88004040C with 4" Coupler (Optional)
UVR400 88004030A with 3" Adapter (Optional)
UVR400 88004030C with 3" Coupler (Optional)
Repair Parts List
Ref # Item # Description
3 86004120 UTF40 Cam Assembly Kit
7 86004002 1/2" Thick Fuel Gasket
8 86004108 Actuation Lever Bolt
10 86004121 UTF Connecting Link Pin Kit
11 86004123 UTF/UVR Sight Glass
12 86004122 UTF/UVR Capscrew
13 5504230 B30ASY Buna Fuel Resistant Gasket
14 88004002 UVR400 Tube
15 88000420 UVR400 Tube Seal Kit
16 88000424 VR 424 Set Screw
18 86004014 TF40AF Alum Adapter
19 1000630 30F Alum Adapter

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
