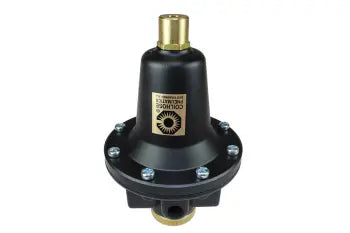

8804K by Coilhose | Heavy Duty Series Regulator | Tamperproof | 1/2" Pipe Size | Die Cast Aluminum

8804K by Coilhose | Heavy Duty Series Regulator | Tamperproof | 1/2" Pipe Size | Die Cast Aluminum

Save $58.75 Save $58.75
$146.87
$146.87 - $146.87
$146.87
$88.12
$88.12 - $88.12
$88.12
Coilhose Pneumatics - Filters, Regulators & Lubricators - Heavy Duty Series - Regulators
Specifications for Variant SKU: 8804K Coilhose
Material(s): Aluminum, Bronze, Polycarbonate
Overview:
  • The Heavy Duty Series Regulators have a long established reputation for high quality and unsurpassed reliability. Their balanced design maintains precise downstream pressure, and a diaphragm stop prevents ruptures in the event of surges.
Features:
  • High flow rates with accurate control and fast response.
  • 0-200 PSI, 0-125 PSI and 0-50 PSI pressure ranges.
  • Tamperproof option available.
  • Panel mount and gauge options.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure: 250 PSI Maximum Temperature: 250° F
Materials: Body: Die Cast Aluminum

Size Height Diameter Bowl Capacity Weight
1/4" & 3/8" 5-1/2" 3" 4 oz. 3/4 lbs.
1/2" 7" 4" 8 oz. 1-1/2 lbs.
3/4" & 1" 8-1/2" 5" 23 oz. 3 lbs.

Supply 100 PSI Regulated Pressure Pressure Drop
2 5 10
1/4" at 80 PSI 10 SCFM 30 SCFM 40 SCFM
3/8" at 80 PSI 10 SCFM 30 SCFM 40 SCFM
1/2" at 80 PSI 20 SCFM 60 SCFM 80 SCFM
3/4" at 80 PSI 40 SCFM 120 SCFM 160 SCFM
1" at 80 PSI 40 SCFM 120 SCFM 160 SCFM
Note: All values are approximate.

Model Pipe Size Gauge Panel Mount Tamper Proof Max Pressure Pressure Range
8802 1/4" No No No 250 PSI 0-125 PSI
8802K 1/4" No No Yes 250 PSI 0-125 PSI
8802KH 1/4" No No Yes 250 PSI 0-200 PSI
8802KL 1/4" No No Yes 250 PSI 0-60 PSI
8802L 1/4" No No No 250 PSI 0-50 PSI
8802H 1/4" No No No 250 PSI 0-200 PSI
8802GL 1/4" Yes No No 250 PSI 0-60 PSI
8802GH 1/4" Yes No No 250 PSI 0-200 PSI
8802G-CS* 1/4" Yes No No 250 PSI 0-125 PSI
8802G 1/4" Yes No No 250 PSI 0-125 PSI

8803 3/8" No No No 250 PSI 0-125 PSI
8803K 3/8" No No Yes 250 PSI 0-125 PSI
8803KH 3/8" No No Yes 250 PSI 0-200 PSI
8803KL 3/8" No No Yes 250 PSI 0-60 PSI
8803L 3/8" No No No 250 PSI 0-60 PSI
8803H 3/8" No No No 250 PSI 0-200 PSI
8803GL 3/8" Yes No No 250 PSI 0-60 PSI
8803GH-CS* 3/8" Yes No No 250 PSI 0-200 PSI
8803GH 3/8" Yes No No 250 PSI 0-200 PSI
8803G-CS* 3/8" Yes No No 250 PSI 0-125 PSI
8803G 3/8" Yes No No 250 PSI 0-125 PSI

8804 1/2" No No No 250 PSI 0-125 PSI
8804KH 1/2" No No Yes 250 PSI 0-200 PSI
8804KL 1/2" No No Yes 250 PSI 0-60 PSI
8804L 1/2" No No No 250 PSI 0-60 PSI
8804K 1/2" No No Yes 250 PSI 0-125 PSI
8804H 1/2" No No No 250 PSI 0-200 PSI
8804GL 1/2" Yes No No 250 PSI 0-60 PSI
8804GK 1/2" Yes No Yes 250 PSI 0-125 PSI
8804GH 1/2" Yes No No 250 PSI 0-200 PSI
8804G 1/2" Yes No No 250 PSI 0-125 PSI

8806 3/4" No No No 250 PSI 0-125 PSI
8806H 3/4" No No No 250 PSI 0-200 PSI
8806K 3/4" No No Yes 250 PSI 0-125 PSI
8806KH 3/4" No No Yes 250 PSI 0-200 PSI
8806KL 3/4" No No Yes 250 PSI 0-60 PSI
8806L 3/4" No No No 250 PSI 0-60 PSI
8806GL 3/4" Yes No No 250 PSI 0-60 PSI
8806GK 3/4" Yes No Yes 250 PSI 0-125 PSI
8806GH 3/4" Yes No No 250 PSI 0-200 PSI
8806G 3/4" Yes No No 250 PSI 0-125 PSI

8808 1" No No No 250 PSI 0-125 PSI
8808L 1" No No No 250 PSI 0-60 PSI
8808KL 1" No No Yes 250 PSI 0-60 PSI
8808KH 1" No No Yes 250 PSI 0-200 PSI
8808K 1" No No Yes 250 PSI 0-125 PSI
8808H 1" No No No 250 PSI 0-200 PSI
8808GLK 1" Yes No Yes 250 PSI 0-60 PSI
8808GL 1" Yes No No 250 PSI 0-60 PSI
8808GH 1" Yes No No 250 PSI 0-200 PSI
8808G 1" Yes No No 250 PSI 0-125 PSI
* Clamshell Packaging
