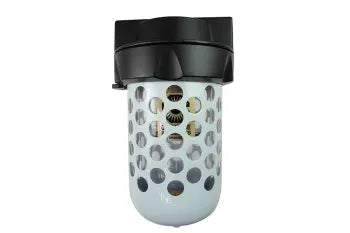

8823R by Coilhose | Heavy Duty Series Filter | Bowl Guard- 3/8" Pipe Size | Die Cast Aluminum

8823R by Coilhose | Heavy Duty Series Filter | Bowl Guard- 3/8" Pipe Size | Die Cast Aluminum

Save $52.53 Save $52.53
$131.32
$131.32 - $131.32
$131.32
$78.79
$78.79 - $78.79
$78.79
Coilhose Pneumatics - Filters, Regulators & Lubricators - Heavy Duty Series - Filters
Specifications for Variant SKU: 8823R Coilhose
Material(s): Aluminum, Bronze, Polycarbonate
Overview:
  • The Heavy Duty Series Filters have a long-established reputation for high quality and reliability. This series continues to provide time proven value with a 1/4" to 1" size range, die cast aluminum bodies, extra large filter elements, easy maintenance and design consistency.
Features:
  • Large 40, 20 or 12 micron sintered bronze elements.
  • Bayonet locking ring allows easy bowl removal by hand.
  • Hi-strength plastic bowls supplied standard.
  • Bowl guards supplied standard on 3/4" and 1" sizes. Optional on 1/4", 3/8" and 1/2" sizes.
  • Automatic drains available.
Warning:
  • Although polycarbonate bowls are capable of withstanding extreme physical abuse, they are susceptible to damage and may possibly burst when subjected to some cleaning products and synthetic oils, particularly phosphate esters. Should there be any questions regarding their compatibility with your applications, consult the factory or use a metal bowl.

Maximum Supply Pressure: Plastic Bowl: 150 PSI
Metal Bowl: 250 PSI		 Maximum Operating Temp.: Plastic Bowl: 120° F
Metal Bowl: 250° F
Filter Element: Standard: 40 Micron
Optional: 20 & 12 Micron		 Materials: Plastic Bowl: Polycarbonate
Metal Bowl: Aluminum
Body: Die Cast Aluminum
Filter Element: Sintered Bronze

Size Height Diameter Bowl Capacity Weight
1/4" & 3/8" 6" 3" 4 oz. 3/4 lbs.
1/2" 7" 3 1/2" 8 oz. 1 lbs.
3/4" & 1" 9" 5" 23 oz. 4 lbs.

Supply Pressure Pressure Drop
1 2 3 4 5
1/4" at 80 PSI 25 SCFM 35 SCFM 42 SCFM 50 SCFM 55 SCFM
3/8" at 80 PSI 25 SCFM 35 SCFM 42 SCFM 50 SCFM 55 SCFM
1/2" at 80 PSI 38 SCFM 61 SCFM 80 SCFM 95 SCFM 108 SCFM
3/4" at 80 PSI 119 SCFM 160 SCFM 200 SCFM 240 SCFM 260 SCFM
1" at 80 PSI 119 SCFM 160 SCFM 200 SCFM 240 SCFM 260 SCFM
Note: All values are approximate.

Model Pipe Size Drain Material Max Pressure Micron Level
8822 1/4" Manual Polycarbonate 150 PSI 40 Micron Element
8822-CS* 1/4" Manual Polycarbonate 150 PSI 40 Micron Element
8822X 1/4" Manual Polycarbonate 150 PSI 12 Micron Element
8822RX 1/4" Manual Poly w/ Bowl Guard 150 PSI 12 Micron Element
8822MX 1/4" Manual Metal Bowl 250 PSI 12 Micron Element
8822MF 1/4" Manual Metal Bowl 250 PSI 20 Micron Element
8822FD 1/4" Auto Polycarbonate 150 PSI 20 Micron Element
8822F 1/4" Manual Polycarbonate 150 PSI 20 Micron Element
8822RD 1/4" Auto Poly w/ Bowl Guard 150 PSI 40 Micron Element
8822R 1/4" Manual Poly w/ Bowl Guard 150 PSI 40 Micron Element
8822MD 1/4" Auto Metal Bowl 250 PSI 40 Micron Element
8822M 1/4" Manual Metal Bowl 250 PSI 40 Micron Element
8822D 1/4" Auto Polycarbonate 150 PSI 40 Micron Element

8823-CS* 3/8" Manual Polycarbonate 150 PSI 40 Micron Element
8823 3/8" Manual Polycarbonate 150 PSI 40 Micron Element
8823X 3/8" Manual Polycarbonate 150 PSI 12 Micron Element
8823RXD 3/8" Auto Poly w/ Bowl Guard 150 PSI 12 Micron Element
8823RX 3/8" Manual Poly w/ Bowl Guard 150 PSI 12 Micron Element
8823MX 3/8" Manual Metal Bowl 250 PSI 12 Micron Element
8823F 3/8" Manual Polycarbonate 150 PSI 20 Micron Element
8823RD 3/8" Auto Poly w/ Bowl Guard 150 PSI 40 Micron Element
8823R 3/8" Manual Poly w/ Bowl Guard 150 PSI 40 Micron Element
8823MD 3/8" Auto Metal Bowl 250 PSI 40 Micron Element
8823M 3/8" Manual Metal Bowl 250 PSI 40 Micron Element
8823D 3/8" Auto Polycarbonate 150 PSI 40 Micron Element

8824 1/2" Manual Polycarbonate 150 PSI 40 Micron Element
8824MX 1/2" Manual Metal Bowl 250 PSI 12 Micron Element
8824MXD 1/2" Auto Metal Bowl 250 PSI 12 Micron Element
8824RXD 1/2" Auto Poly w/ Bowl Guard 150 PSI 12 Micron Element
8824X 1/2" Manual Polycarbonate 150 PSI 12 Micron Element
8824XD 1/2" Auto Polycarbonate 150 PSI 12 Micron Element
8824MFD 1/2" Auto Metal Bowl 250 PSI 20 Micron Element
8824MF 1/2" Manual Metal Bowl 250 PSI 20 Micron Element
8824F 1/2" Manual Polycarbonate 150 PSI 20 Micron Element
8824D 1/2" Auto Polycarbonate 150 PSI 40 Micron Element
8824M 1/2" Manual Metal Bowl 250 PSI 40 Micron Element
8824MD 1/2" Auto Metal Bowl 250 PSI 40 Micron Element
8824R 1/2" Manual Poly w/ Bowl Guard 150 PSI 40 Micron Element
8824RD 1/2" Auto Poly w/ Bowl Guard 150 PSI 40 Micron Element

8826 3/4" Manual Poly w/ Bowl Guard 150 PSI 40 Micron Element
8826D 3/4" Auto Poly w/ Bowl Guard 150 PSI 40 Micron Element
8826XD 3/4" Auto Poly w/ Bowl Guard 150 PSI 12 Micron Element
8826X 3/4" Manual Poly w/ Bowl Guard 150 PSI 12 Micron Element
8826MXD 3/4" Auto Metal Bowl 250 PSI 12 Micron Element
8826MX 3/4" Manual Metal Bowl 250 PSI 12 Micron Element
8826MFD 3/4" Auto Metal Bowl 250 PSI 20 Micron Element
8826FD 3/4" Auto Poly w/ Bowl Guard 150 PSI 20 Micron Element
8826F 3/4" Manual Poly w/ Bowl Guard 150 PSI 20 Micron Element
8826MD 3/4" Auto Metal Bowl 250 PSI 40 Micron Element
8826M 3/4" Manual Poly w/ Bowl Guard 250 PSI 40 Micron Element
8826MF 3/4" Manual Metal Bowl 250 PSI 20 Micron Element

8828 1" Manual Poly w/ Bowl Guard 150 PSI 40 Micron Element
8828MXD 1" Auto Metal Bowl 250 PSI 12 Micron Element
8828MX 1" Manual Metal Bowl 250 PSI 12 Micron Element
8828MFD 1" Auto Metal Bowl 250 PSI 20 Micron Element
8828MF 1" Manual Metal Bowl 250 PSI 20 Micron Element
8828F 1" Manual Poly w/ Bowl Guard 150 PSI 20 Micron Element
8828MD 1" Auto Metal Bowl 250 PSI 40 Micron Element
8828M 1" Manual Metal Bowl 250 PSI 40 Micron Element
8828D 1" Auto Poly w/ Bowl Guard 150 PSI 40 Micron Element
8828X 1" Manual Poly w/ Bowl Guard 150 PSI 12 Micron Element
* Clamshell Packaging
