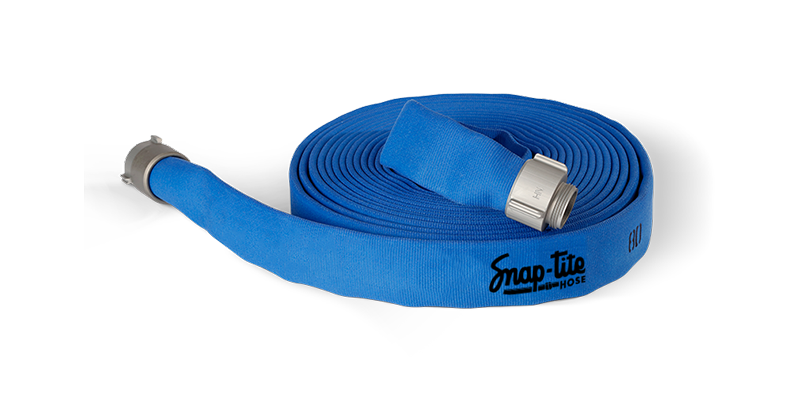

8D30x50B25N by Snap-Tite | 8D Series | Double Jacket Polyester Fire Hose Assembly with EPDM Liner | 3" Hose I.D. | 2-1/2" Male NH x 2-1/2" Female NH Couplings | 400 PSI | Blue Dura-Cote | 50ft Length

Save $170.13

$595.46

$595.46 - $595.46

$595.46

$425.33

$425.33 - $425.33

$425.33

Snap-Tite Hose
8D™ - POLYESTER DOUBLE JACKETED ATTACK HOSE

This hose may take 1-2 weeks to ship.

Package Quantity: 50 FT

Specifications for Variant SKU: 8D30x50B25N Snap-Tite
Series:	8D Series
Hose Color(s):	Blue
Internal Diameter:	3in
Tubing Construction:	EPDM
Cover Construction:	Polyester
Ends Configuration:	2-1/2in Male NH, 2-1/2in Female NH
Material(s):	Aluminum
Applicable Specs & Approvals:	NFPA 1960

Description:
Model:	8D™
Basic Construction:	Polyester outer/inner jacket, EPDM rubber liner
Application:	Attack
Colors:	Yellow, Red, Blue, Orange, Green, White (uncoated)
Temperature Range:	-40° F - 150° F
Specifications:	1 year warranty. "1-3/4" and 2-1/2 are ULC Certified. Potable water approved: No. Quality Management System Certification: ISO 9001:2015 Registration # IT-81045
Snap-tite's 8D™ is a premium quality, industrial grade, double jacketed hose with a lightweight EPDM (Ethylene Propylene Diene Monomer) rubber liner and a maximum operating pressure of 400 psi (2758 kPa). The outside jacket utilizes a tight weave that is less likely to "catch" while dragging through the work site and helps to reduce kinking at low pressures, keeping the flow constant. The EPDM liner is inert to most chemicals, is inherently ozone resistant, and won't degrade or crack. 8D™ also has a wide temperature range; capable of being used both at a mine in Alaska or a construction site in Arizona.
Features:
Double jacketed EPDM rubber lined hose made from 100% high tensile strength polyester yarn. Optional Dura-Cote™ treatment greatly increases abrasion, heat, flame and petrochemical resistance while virtually eliminating water pick-up. When treated, 8D™ is protected from mildew and no drying is required. Hose remains flexible to temperatures as low as -40°F (-40°C) and is resistant to ozone, oxidation, and most chemicals or petroleum products. Excellent for tough applications such as construction sites, mines and industrial firefighting. Available with aluminum or brass couplings. Made in USA to ISO-9001:2015 certified quality assurance system.

Yellow
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	8D15x25Y15N	8D15x50Y15N	8D15x100Y15N	Standard	400 psi	800 psi	1200 psi	0.32	55,000+
1-1/2"	8D15x25Y15NBR	8D15x50Y15NBR	8D15x100Y15NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.32	55,000+
2-1/2"	8D25x25Y25N	8D25x50Y25N	8D25x100Y25N	Standard	400 psi	800 psi	1200 psi	0.56	55,000+
2-1/2"	8D25x25Y25NBR	8D25x50Y25NBR	8D25x100Y25NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.56	55,000+
3"	8D30x25Y25N	8D30x50Y25N	8D30x100Y25N	Standard	400 psi	800 psi	1200 psi	0.66	55,000+

Red
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	8D15x25R15N	8D15x50R15N	8D15x100R15N	Standard	400 psi	800 psi	1200 psi	0.32	55,000+
1-1/2"	8D15x25R15NBR	8D15x50R15NBR	8D15x100R15NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.32	55,000+
2-1/2"	8D25x25R25N	8D25x50R25N	8D25x100R25N	Standard	400 psi	800 psi	1200 psi	0.56	55,000+
2-1/2"	8D25x25R25NBR	8D25x50R25NBR	8D25x100R25NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.56	55,000+
3"	8D30x25R25N	8D30x50R25N	8D30x100R25N	Standard	400 psi	800 psi	1200 psi	0.66	55,000+

Blue
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	8D15x25B15N	8D15x50B15N	8D15x100B15N	Standard	400 psi	800 psi	1200 psi	0.32	55,000+
1-1/2"	8D15x25B15NBR	8D15x50B15NBR	8D15x100B15NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.32	55,000+
2-1/2"	8D25x25B25N	8D25x50B25N	8D25x100B25N	Standard	400 psi	800 psi	1200 psi	0.56	55,000+
2-1/2"	8D25x25B25NBR	8D25x50B25NBR	8D25x100B25NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.56	55,000+
3"	8D30x25B25N	8D30x50B25N	8D30x100B25N	Standard	400 psi	800 psi	1200 psi	0.66	55,000+

Orange
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	8D15x25O15N	8D15x50O15N	8D15x100O15N	Standard	400 psi	800 psi	1200 psi	0.32	55,000+
1-1/2"	8D15x25O15NBR	8D15x50O15NBR	8D15x100O15NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.32	55,000+
2-1/2"	8D25x25O25N	8D25x50O25N	8D25x100O25N	Standard	400 psi	800 psi	1200 psi	0.56	55,000+
2-1/2"	8D25x25O25NBR	8D25x50O25NBR	8D25x100O25NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.56	55,000+
3"	8D30x25O25N	8D30x50O25N	8D30x100O25N	Standard	400 psi	800 psi	1200 psi	0.66	55,000+

Green
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	8D15x25G15N	8D15x50G15N	8D15x100G15N	Standard	400 psi	800 psi	1200 psi	0.32	55,000+
1-1/2"	8D15x25G15NBR	8D15x50G15NBR	8D15x100G15NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.32	55,000+
2-1/2"	8D25x25G25N	8D25x50G25N	8D25x100G25N	Standard	400 psi	800 psi	1200 psi	0.56	55,000+
2-1/2"	8D25x25G25NBR	8D25x50G25NBR	8D25x100G25NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.56	55,000+
3"	8D30x25G25N	8D30x50G25N	8D30x100G25N	Standard	400 psi	800 psi	1200 psi	0.66	55,000+

Uncoated White
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Testing Pressures (PSI)			Weight (LBS/FT)	Abrasion Resistance
Nominal Size	Part Number 25ft	Part Number 50ft	Part Number 100ft	Coupling Type	Working	Proof	Burst	Uncoupled	# of Taber Abrasion Cycles (H-22 wheel)
1-1/2"	8D15x25W15N	8D15x50W15N	8D15x100W15N	Standard	400 psi	800 psi	1200 psi	0.32	55,000+
1-1/2"	8D15x25W15NBR	8D15x50W15NBR	8D15x100W15NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.32	55,000+
2-1/2"	8D25x25W25N	8D25x50W25N	8D25x100W25N	Standard	400 psi	800 psi	1200 psi	0.56	55,000+
2-1/2"	8D25x25W25NBR	8D25x50W25NBR	8D25x100W25NBR	Brass Rocker Lugs	400 psi	800 psi	1200 psi	0.56	55,000+
3"	8D30x25W25N	8D30x50W25N	8D30x100W25N	Standard	400 psi	800 psi	1200 psi	0.66	55,000+

Snap-Tite Hose

Snap-tite Hose is a premier American manufacturer of high-performance lay-flat and industrial hoses trusted across firefighting, municipal, agricultural, and industrial markets. With more than 55 years of engineering excellence and innovation, Snap-tite produces rugged, lightweight, and reliable hose solutions built to perform in the toughest conditions — from firegrounds to farms and heavy-duty industrial sites. Every hose is proudly made in the USA to strict quality standards, delivering durability and confidence to the professionals who depend on them.
