8HT-BMK Dixon Steel HT-Series Quick Disconnect 1" ISO16028 Flushface Interchange Coupler Bulkhead Kit - 2.310" Mounting Hole ID

8HT-BMK Dixon Valve Steel HT-Series Quick Disconnect 1" ISO16028 Flushface Interchange Coupler Bulkhead Kit - 2.310" Mounting Hole ID

Save $0.44 Save $0.44
$10.88
$10.88 - $10.88
$10.88
$10.44
$10.44 - $10.44
$10.44

Dixon Quick Disconnect Couplings - HT-Series Hydraulic Couplings - HT-Series ISO16028 Flushface Interchange Coupler Bulkhead Kits
Specifications for Variant SKU: 8HT-BMK Dixon
Seal Material(s): Buna-N/Nitrile Rubber
Compatibility & Interchange Data:
  • Interchangeable to ISO16028
  • Parker FEM-Series
  • Snap-Tite 74-Series
  • Hansen FF
  • Aeroquip/Eaton FD89
  • Stucchi A/FIRG
  • Faster FFH/2FFN/2FFI
  • Safeway FF49-Series
Applications:
Part Number Body Size Mounting Hole ID Ring Material Bulkhead Kit Contents

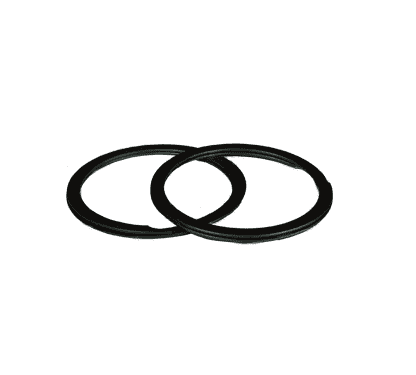

2HT-BMK 1/4" 1.125" Steel two 360 deg. retaining rings
3HT-BMK 3/8" 1.250" Steel two 360 deg. retaining rings
4HT-BMK 1/2" 1.560" Steel two 360 deg. retaining rings
5HT-BMK 5/8" 1.685" Steel two 360 deg. retaining rings
6HT-BMK 3/4" 1.870" Steel two 360 deg. retaining rings
8HT-BMK 1" 2.310" Steel two 360 deg. retaining rings
