900564-5S Aeroquip by Danfoss | Protective Coil Spring | Steel | 20 Foot Length

$171.84 - $171.84

$171.84

$171.84 - $171.84

$171.84

Package Quantity: 20 FT

Quantity

Specifications for Variant SKU: 900564-5S Danfoss \| 20 \|

PRODUCT DESCRIPTION

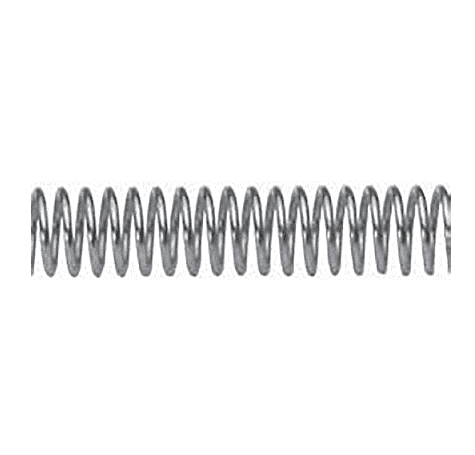

Steel Protective Coil Spring

Accessories - Protective Coils

Protects hose cover and reinforcement from abrasion and accidental damage. Construction: Steel wire, rust resistant This coil should fit snugly to the hose O.D. expanding the coil I.D. (unwind the coil) may be necessary for proper installation.

Sleeve Dash No.	Sleeve I.D.
900564-1S	15,5	.61
900564-2S	19,0	.75
900564-3S	23,1	.91
900564-4S	26,4	1.04
900564-5S	30,0	1.18
900564-6S	34,0	1.34
900564-7S	42,2	1.66
900564-8S	54,1	2.13
900564-9S	47,5	1.87
900564-10S	60,4	2.38
900564-12S	17,0	.67
900564-14S	21,6	.85
900564-15S	20,6	.81

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
