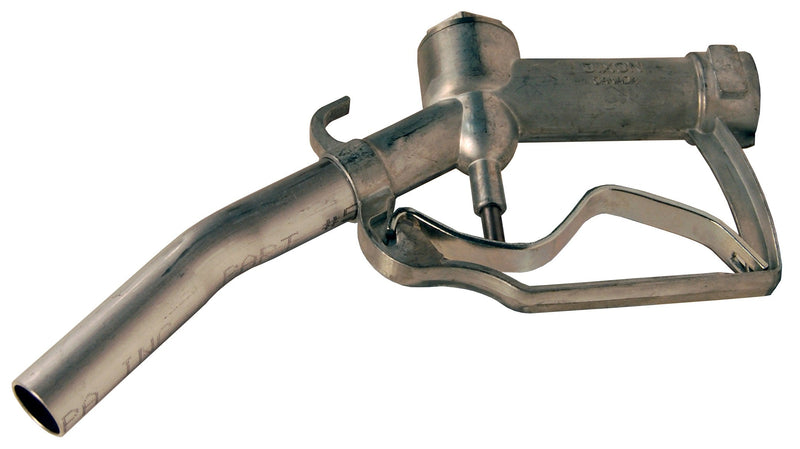

900B34 by Dixon Valve | Gravity Utility Nozzle | 3/4" Female NPT Inlet | 3/4" Bent Spout | Die Cast Zinc Aluminum

900B34 by Dixon Valve | Gravity Utility Nozzle | 3/4" Female NPT Inlet | 3/4" Bent Spout | Die Cast Zinc Aluminum

Save $47.87 Save $47.87
$119.67
$119.67 - $119.67
$119.67
$71.80
$71.80 - $71.80
$71.80

Dixon Valve
Tank Truck | Gravity Utility Nozzle

For low pressure use such as agricultural and 12 volt truck utility pumps, or gravity flow fittings in economy applications.
Specifications for Variant SKU: 900B34 Dixon
Brand: Bayco
Shape (Orientation): 45 Degree
Ends Configuration: 3/4in Female NPT
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Nozzles are manual operation, they do not have an automatic flow shut off.
  • Rugged design.
  • Good flow rating.
Construction:
  • Die cast zinc aluminum body.
  • Plated steel trigger.
  • Nitrile Rubber seals.
  • Aluminum spout.
  • Steel reducer bushing.
Safety Notes:
  • Nozzles with a 3/4" female NPT inlet, use a 1" x 3/4" steel reducer bushing to achieve 3/4" female NPT inlet (included).
  • All fuel contains additives, which can vary by fuel brand and season. Please contact Dixon with a list of all additives and we will advise of any known compatibility issues.
Specifications:
  • Working pressure: 25 PSI.
  • UL Listed
Die Cast Zinc Aluminum
Part Number		 Female NPT Inlet Outlet Type
900* 1" 1" Female UNS
900S 1" 1" Straight Spout
900B 1" 1" Bent Spout
900W34S 1" 3/4" Straight Spout
900W34B 1" 3/4" Bent Spout
900S34** 3/4" 3/4" Straight Spout
900B34** 3/4" 3/4" Bent Spout

* Nozzle body only (no spout)

** 2 3/4" nozzle inlet uses 1" x 3/4" reducer bushing, supplied

Replacement Parts for Gravity Utility Nozzles
Part Number Description
234-80-4 3/4" Replacement Straight Spout
234-80-5 3/4" Replacement Bent Spout
875-4 1" Replacement Straight Spout
875-5 1" Replacement Bent Spout
900TK Trigger
900SK Plunger And Valve Assemblies, Cap, O-Ring
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
