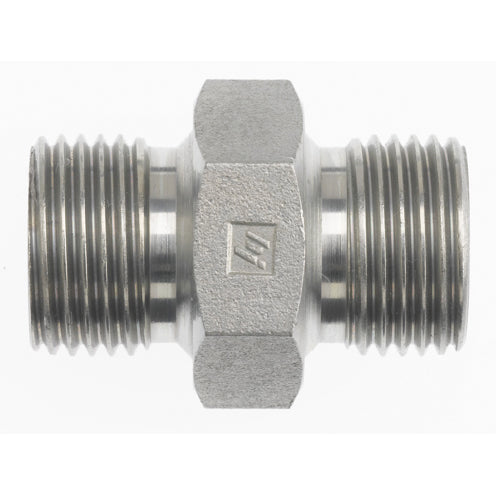

9022-20-16 by Brennan Inc. | -20 Male BSPP x -16 Male BSPP Nipple | Straight | Steel

9022-20-16 by Brennan Inc. | -20 Male BSPP x -16 Male BSPP Nipple | Straight | Steel

$23.93 - $23.93
$23.93
$30.36
$30.36 - $30.36
$30.36

Brennan Inc.
Conversion Adapters: 9022 - Male BSPP x Male BSPP Nipple Straight
Specifications for Variant SKU: 9022-20-16 Brennan
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Male BSPP, 1in Male BSPP, Some Ends Match
Material(s): Steel
Part Number Material B1BSPP B2BSPP B1Drill B2Drill LLength CHex
9022-16-06 Steel 1-11" 3/8-19" 22.00mm 09.00mm 47.00mm 41.00mm
9022-16-08 Steel 1-11" 1/2-14" 22.00mm 11.50mm 49.00mm 41.00mm
9022-16-10 Steel 1-11" 5/8-14" 22.20mm 15.20mm 48.50mm 41.00mm
9022-16-12 Steel 1-11" 3/4-14" 22.00mm 17.00mm 52.00mm 41.00mm
9022-16-16 Steel 1-11" 1-11" 22.00mm 22.00mm 54.00mm 41.00mm
9022-20-12 Steel 1-1/4-11" 3/4-14" 30.00mm 17.00mm 54.50mm 50.00mm
9022-20-16 Steel 1-1/4-11" 1-11" 30.30mm 22.20mm 50.50mm 50.00mm
9022-20-20 Steel 1-1/4-11" 1-1/4-11" 30.00mm 30.00mm 57.00mm 50.00mm
9022-24-16 Steel 1-1/2-11" 1-11" 36.00mm 22.20mm 53.50mm 55.00mm
9022-24-20 Steel 1-1/2-11" 1-1/4-11" 33.00mm 30.00mm 60.50mm 55.00mm
9022-24-24 Steel 1-1/2-11" 1-1/2-11" 33.00mm 33.00mm 62.00mm 55.00mm
9022-32-20 Steel 2-11" 1-1/4-11" 46.00mm 28.60mm 74.00mm 70.00mm
9022-32-24 Steel 2-11" 1-1/2-11" 46.00mm 33.30mm 76.00mm 70.00mm
9022-32-32 Steel 2-11" 2-11" 45.00mm 45.00mm 68.00mm 70.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
