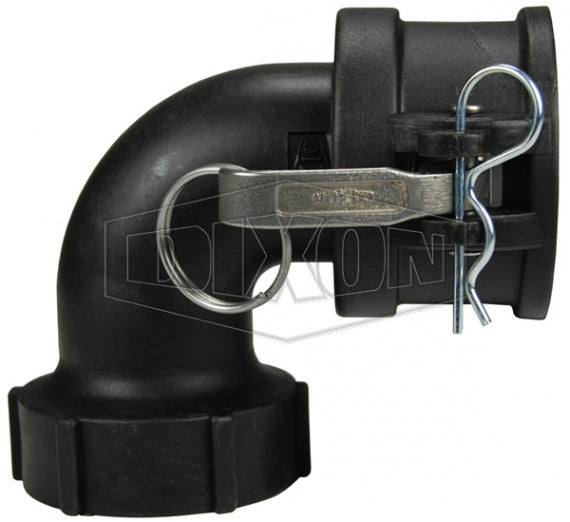

90PPD200 by Dixon Valve | Cam & Groove Coupler | 90° Elbow | Type D | 2" Coupler x 2" Female NPT | Polypropylene

Save $8.62 Save $8.62
Original price $26.79
Original price $26.79 - Original price $26.79
Original price $26.79
Current price $18.17
$18.17 - $18.17
Current price $18.17

Dixon Valve
Cam & Groove | Type D | 90° Elbow | Coupler x Female NPT

Designed for use with liquids.


Specifications for Variant SKU: 90PPD200 Dixon
Shape (Orientation): 90 Degree
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
Material(s): Polypropylene
Seal Material(s): EPDM
Construction:
  • Manufactured from glass-filled polypropylene.
  • EPDM gaskets.
  • 304 stainless steel handles and pins.
Specifications:
  • Maximum operating pressure: 100 PSI (1-1/2" - 2"); recommendations based on the use of mating Dixon fittings at an ambient temperature of 70°F (21°C) with standard seal installed.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
  • NOT recommended for use with PTFE gaskets, polypropylene cam & groove should not be mixed with metal fittings.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
Glass-Filled PolypropylenePart Number Size Max. Operating Pressure
90PPD150 1-1/2" 100 PSI
90PPD200 2" 100 PSI
