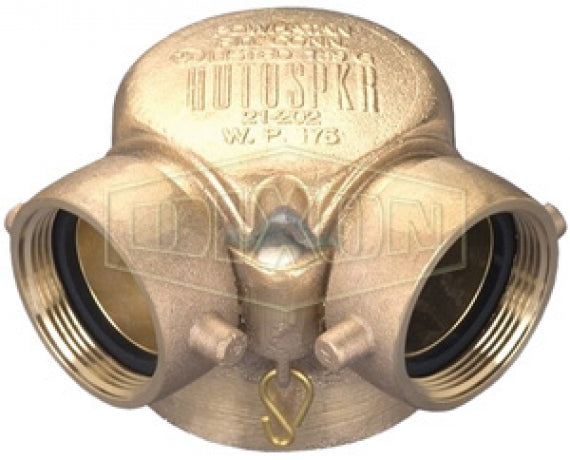

90SCS4025F Dixon Auto-Spkr Cast Brass 90 deg. Single Clapper Siamese Connection - Bottom Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

90SCS4025F Dixon Auto-Spkr Cast Brass 90 deg. Single Clapper Siamese Connection - Bottom Outlet - 4" Female NPT Outlet x Two 2-1/2" Female NST(NH) Inlets

Save $38.56 Save $38.56
$470.33
$470.33 - $470.33
$470.33
$431.77
$431.77 - $431.77
$431.77

Dixon Fire Fittings
Single Clapper Siamese Connections - Bottom Outlet - Cast Brass

Provides the required 500 GPM minimum to supplement the fire protection as an auxiliary inlet connection to the water supply. (250 GPM minimum per inlet.)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 90SCS4025F Dixon
Shape (Orientation): Y
Ends Configuration: 4in Female NPT, 2-1/2in Female NST
Material(s): Brass
Features:
  • UL listed.
  • ULC listed.
  • Branding: Auto-Spkr.
  • The swing clapper design provides an unobstructed waterway.
  • Exposed Fire Department Connections (FDC) provide an economical method of satisfying local fire codes.
  • Single swing clapper with (2) pin lug swivel inlets.
  • Maximum operating pressure: 250 PSI at 70°F (21°C).
Size A B
4" x 2-1/2" x 2-1/2" (Dimensions match 90SCS4025F) 6-7/8" 9-7/8"
Part Number Inlet (2) Outlets Weight
(Lbs.)
90SCS4025F 4" Female NPT 2-1/2" Female NST (NH) 12.4000
90ISCS4025F* 4" Female NPT 2-1/2" Female NST (NH) 8.0000

* Parts are Imported, all others made in the USA

Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
