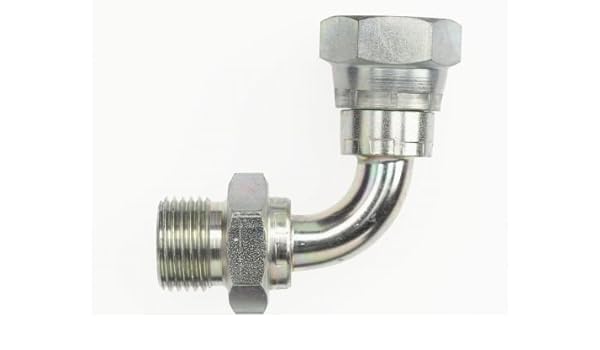

9224-L-06-06 by Brennan Inc. | -06 Male BSPP x -06 Female BSPP Swivel | 90° Elbow | Long | Steel

9224-L-06-06 by Brennan Inc. | -06 Male BSPP x -06 Female BSPP Swivel | 90° Elbow | Long | Steel

$21.45 - $21.45
$21.45
$27.21
$27.21 - $27.21
$27.21

Brennan Inc.
Conversion Adapters: 9224-L - Male BSPP x Female BSPP Swivel 90° Elbow (Long)
Specifications for Variant SKU: 9224-L-06-06 Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male BSPP, 3/8in Female BSPP, Some Ends Match
Material(s): Steel
Special Properties: Long
Part Number Material B1BSPP B2BSPP B1Drill B2Drill LLength MLength C1Hex C2Hex
9224-L-04-04 Steel - - - - - - - -
9224-L-06-06 Steel 3/8-19" 3/8-19" 9.70mm 7.50mm 40.00mm 44.00mm 22.00mm 22.00mm
9224-L-08-08 Steel 1/2-14" 1/2-14" 11.10mm 11.10mm 50.00mm 53.50mm 27.00mm 27.00mm
9224-L-12-12 Steel 3/4-14" 3/4-14" 16.70mm 16.70mm 2.15mm 2.30mm 32.00mm 32.00mm
9224-L-16-16 Steel 1-11" 1-11" 22.20mm 22.20mm 75.00mm 72.00mm 41.00mm 41.00mm
9224-L-24-24 Steel 1-1/2-11" 1-1/2-11" 33.30mm 33.30mm 104.00mm 100.00mm 55.00mm 55.00mm
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
