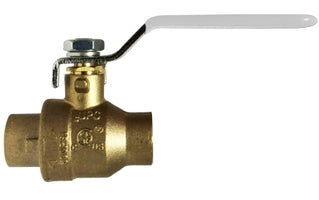

941166LF Midland Lead Free Ball Valve - 1-1/4" SWT x 1-1/4" SWT - Brass

941166LF by Midland | Lead Free Ball Valve | 1-1/4" SWT x 1-1/4" SWT | Brass

Save $24.10 Save $24.10
$60.25
$60.25 - $60.25
$60.25
$36.15
$36.15 - $36.15
$36.15

Midland Industries
Lead Free Ball Valve - Full Port - SWT x SWT - Brass

Inventory @ Manufacturers Warehouse: 1696 Units
Specifications for Variant SKU: 941166LF Midland
Shape (Orientation): Straight
Ends Configuration: 1-1/4in Sweat End, 1-1/4in Sweat End, Some Ends Match
Material(s): Lead Free Brass
Applicable Specs & Approvals: NSF 61, NSF 372, IGC-157, Lead Free as per the Safe Drinking Water Act
Special Properties: Lead Free
Features:
  • NSF Listed-Threaded and Sweat
  • Lead Free and dezincification resistant (DZR) material
  • Vacuum Services 29.92 inches Hg
  • 600 psi (WOG) 150 psi (WSP) Service
  • Temperature Range : -40° F to 365° F
  • Made in China
  • Lead Free Lead Free Info (PDF)
Construction:
  • Forging Brass Body
  • PTFE Ball Seats
  • Blow Out Proof Brass Stem
  • Stainless Steel Ball
  • Steel Handle with Vinyl Grip
Specifications:
  • IAMPO IGC 157 - 2004b
  • IAPMO listed to NSF/ANSI-61, NSF/ANSI-372 ,IGC-157
  • CSA listed to NSF/ANSI-61, NSF/ANSI-372 ,IGC-157
  • Threads conform to ANSI B1.20.1
Number Item Quantity Material
1 Body 1 Lead Free Brass
2 Seat 2 PTFE
3 Ball 1 Stainless Steel
4 Stem 1 Brass
5 Handle Nut 1 Plated Steel
6 Lock Washer 1 Plated Steel
7 Packing Nut 1 Brass
8 Packing 1 PTFE
9 Handle 1 Plated Steel
10 Cap 1 Lead Free Brass
Part Number Size DN A B C E G H Weight
lbs
941163LF 1/2" 0.524 1.945" 1.73" 3.35" 0.504" 1.083" 2.276" 0.38
941164LF 3/4" 0.748 2.654" 1.89" 3.35" 0.748" 1.378" 2.579" 0.65
941165LF 1" 0.984 3.315" 2.14" 4.29" 0.909" 1.772" 3.031" 0.93
941166LF 1-1/4" 1.240 3.741" 3.32" 4.29" 0.968" 2.165" 3.398" 1.35
941167LF 1-1/2" 1.476 4.252" 2.66" 5.63" 1.091" 2.50" 3.909" 1.88
941168LF 2" 1.949 5.38" 3.01" 5.63" 1.343" 3.244" 4.638" 3.62
