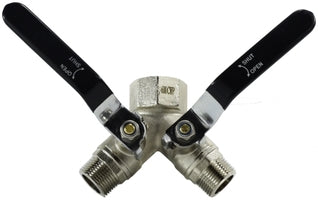

947125 (947-125) Midland Full Port 3-Way Wye Ball Valve - Non Vented - 1" Female NPT Inlet x 3/4" Male NPT Outlets - Nickel Plated Brass

947125 by Midland | Full Port 3-Way Ball Valve | Non Vented | 1" Female NPT Inlet x 3/4" Male NPT Outlets | Wye | Nickel Plated Brass

Save $4.04

$56.94

$56.94 - $56.94

$56.94

$52.90

$52.90 - $52.90

$52.90

Midland Industries
Full Port 3-Way Wye Ball Valve - Female NPT x Male NPT - Brass

Designed for the portable air compressor industry, these valves control the flow of water, oil, and inert gases in two directions and are great for mixing and diverting.

Inventory @ Manufacturers Warehouse: 46 Units

Quantity

Specifications for Variant SKU: 947125 Midland
Shape (Orientation):	Y
Ends Configuration:	1in Female NPT, 3/4in Male NPT, 3/4in Male NPT, Some Ends Match
Material(s):	Nickel Plated Brass
Seal Material(s):	Viton

Features:
Max. pressure: W.O.G.(water, oil, inert gas) Unvented Valve: 600 PSI @ 70ºF Vented Valve: 250 PSI @ 70ºF Max. pressure: W.S.P.(working steam pressure) Unvented Valve: 150 PSI @ 365ºF Vented Valve: Not related Vacuum Rating: 29" Hg Temperature Range: -40ºF to 365ºF Ports: Full Single female inlet, two male outlets with two ball valves Vented valves have a drilled hole on the two valve balls and body that vents compressed air in the line when valve is closed. Not lead free
Construction:
Brass Nickel Plated Chrome-plated brass balls Brass blow-out proof stems PTFE seats and seals Steel lever handles with vinyl grips Made in China

Part Number	Part Name	Material
1	Body	Brass Nickel Plated
2	Seat	PTFE
3	Ball	Brass, Cr. Plated
4	Cap	Brass Nickel Plated
5	Stem	Brass
6	O-Ring	Viton


Part Number	Ball	E	F	A	B	C	D	G	Weight
947125 (947-125)	Non-vented	1" Female	3/4" Male	5.18"	2.5"	2.05"	0.59"	90°	1.43
947126 (947-126)	Vented	1" Female	3/4" Male	5.18"	2.5"	2.05"	0.59"	90°	1.43

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
