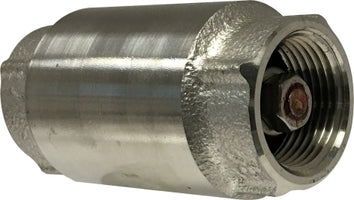

949431 (949-431) Midland In-Line Check Valve - 3/4" Female NPT x 3/4" Female NPT - 304 Stainless Steel

949431 by Midland | In-Line Check Valve | 3/4" Female NPT x 3/4" Female NPT | 304 Stainless Steel

Save $33.63 Save $33.63
$84.07
$84.07 - $84.07
$84.07
$50.44
$50.44 - $50.44
$50.44

Midland Industries
In-Line Check Valve - Female NPT x Female NPT - 304 Stainless Steel

Inventory @ Manufacturers Warehouse: 134 Units
Specifications for Variant SKU: 949431 Midland
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): 304 Stainless Steel
Seal Material(s): Viton
Features:
  • No Lead
  • Opens & Closes with flow of media
  • No cracking pressure
Construction:
  • Made in Taiwan
Note:
  • Water wells need a check valve installed above the pumps between lengths of drop pipes.
Part Part Name Material
1 Body 304 Stainless Steel
2 Stopper 304 Stainless Steel
3 O-Ring Viton
4 Washer PE
5 Spring 304 Stainless Steel
6 Cap 304 Stainless Steel
7 Nut 304 Stainless Steel
Part Number Size A
NPT		 B C
949430
(949-430)		 1/2" 1/2" 1.26" 2.43"
949431
(949-431)		 3/4" 3/4" 1.50" 2.72"
949432
(949-432)		 1" 1" 1.77" 3.23"
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
