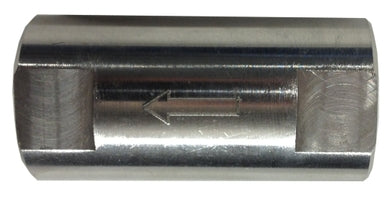

949453 (949-453) Midland Spring Check Valve - 1/2" Female Pipe x 1/2" Female Pipe - 316 Stainless Steel

949453 by Midland | Spring Check Valve | 1/2" Female Pipe x 1/2" Female Pipe | 316 Stainless Steel

Save $2.47 Save $2.47
$34.65
$34.65 - $34.65
$34.65
$32.18
$32.18 - $32.18
$32.18

Midland Industries
Spring Check Valve - Female Pipe x Female Pipe - 316 Stainless Steel

Working Pressure: 1500 PSI (PN100)

Inventory @ Manufacturers Warehouse: 242 Units
Specifications for Variant SKU: 949453 Midland
Shape (Orientation): Straight
Ends Configuration: 1/2in Female NPT, 1/2in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Features:
  • Working Temperature: -10°C -150°C
  • Opening Pressure: 2~3PSI
  • Suitable Medium: W.O.G.
Construction:
  • Made in China
Number Part Material QTY
1 Body 316 Stainless Steel 1
2 Ring Rubber 1
3 Spring 304 Stainless Steel 1
4 Cap CF8M 1
5 Spool 304/316 Stainless Steel 1
6 Spring Ring 304 Stainless Steel 1
Part Number Size L C D B E Weight
lbs.
949451
(949-451)		 1/4" 2.165" 0.217" 0.748" 0.699" 0.394" 0.19
949452
(949-452)		 3/8" 2.165" 0.295" 0.866" 0.787" 0.394" 0.21
949453
(949-453)		 1/2" 2.165" 0.413" 1.063" 0.945" 0.472" 0.31
949454
(949-454)		 3/4" 2.677" 0.591" 1.417" 1.26" 0.472" 0.71
949455
(949-455)		 1" 3.268" 0.787" 1.693" 1.496" 0.591" 1.14
