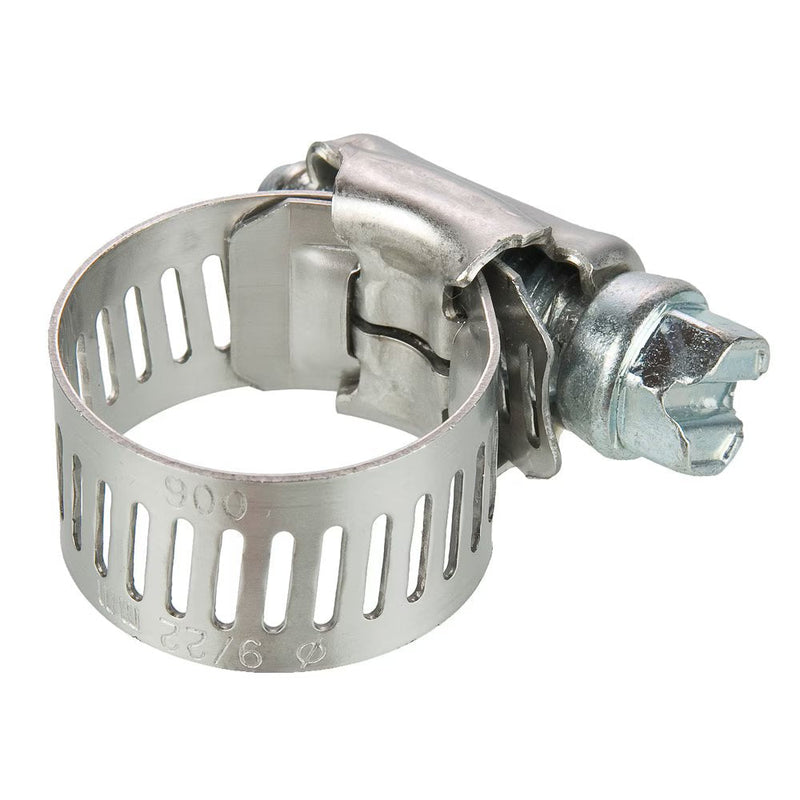

97HC-6 by Parker | Drive Clamp | .38" Min to .87" Max Clamp | .31" Hex | 1.40" Length | .50" Width | Stainless Steel | Pack of 50

97HC-6 by Parker | Drive Clamp | .38" Min to .87" Max Clamp | .31" Hex | 1.40" Length | .50" Width | Stainless Steel | Pack of 50

Save $30.38 Save $30.38
$232.38
$232.38 - $232.38
$232.38
$202.00
$202.00 - $202.00
$202.00

by Parker Hannifin
Hose Barb Fittings:Stainless Steel Worm Drive Clamp 97HC

Package Quantity: 50 Units

Specifications for Variant SKU: 97HC-6 Parker | 50 |
Series: 97HC Series
Shape (Orientation): No Orientation
Material(s): Stainless Steel, Plated Steel
Special Properties: Reuseable
Product Features:
  • All brass construction
  • Fluorocarbon O-rings
  • NPTF, SAE straight thread, metric thread ends
  • Reusable
  • Clamp required
Markets:
  • Industrial
  • Construction
  • Heavy duty truck
  • Mobile
Applications:
  • Air Lines
  • Water Line
  • Cooling Lines
Specification:
Temperature Range: -40° to +160° F (-40° to +71.1° C)
Pressure Range: Up to 150 PSI (10.3 bar)
Part Number Max (D) Min (D) Hex (C) Max (H) W
97HC-3 .62" .25" .25" 1.00" .31"
97HC-6 .87" .38" .31" 1.40" .50"
97HC-8 1.00" .44" .31" 1.53" .50"
97HC-12 1.25" .50" .31" 1.80" .50"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
