9DP16MO16XMJ16-NI-ETP by Super Swivel | DP6945-NI-ETP | Dual Plane Swivel | 1-5/16-12 Male O-Ring ORB x 1-5/16-12 Male 37° JIC | 0.484" Through Hole | 90° Elbow | Electroless Nickel | Extreme Viton® Seal

Save $28.32

$254.90

$254.90 - $254.90

$254.90

$226.58

$226.58 - $226.58

$226.58

Super Swivels
90° Dual Plane Swivels - Male O-Ring ORB X Male 37 deg. JIC

Quantity

Specifications for Variant SKU: 9DP16MO16XMJ16-NI-ETP Super Swivels #DP6945
Shape (Orientation):	90 Degree
Ends Configuration:	1in Male O-Ring Boss, 1in Male JIC
Material(s):	Nickel-Plated Carbon Steel
Seal Material(s):	Viton/FKM

Features:

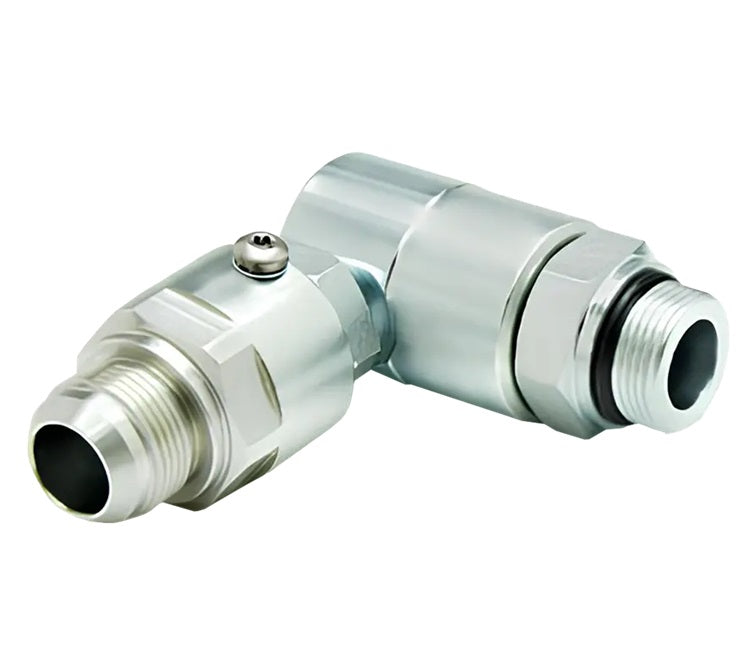

90° Dual Plane Swivels rotating joints provide free rotation on two axis's with a right-angle change of path. By having two lines with full rotation the complexity of hose lines can be reduced providing minimal friction and allowing free movement of hoses and piping. 90° Dual Plane Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation on two paths.
Notes:
Super Swivels are not recommended for breathing air/oxygen or steam. All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure. Any series stem will fit with the same series body.
Base Material and Plating:
Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc. Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
(V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F) (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F) (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

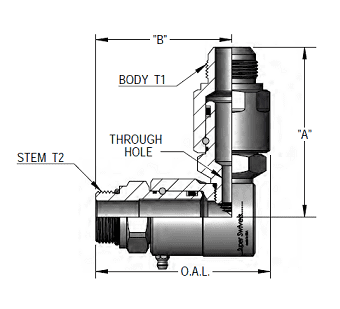

Part Number	Material	Seal	Overall Length	Dim. B	Body	Wrench / Hex	Body T1	Stem T2	Dim. A	Max PSIG	Through Hole
9DP4MO4XMJ4-Z-V	Zinc	Viton	2.792"	2.215"	1.000"	0.625"	7/16-20 NPTF	7/16-20 NPTF	2.689"	5000 PSIG	0.172"
9DP4MO4XMJ4-Z-AL	Zinc	AFLAS	2.792"	2.215"	1.000"	0.625"	7/16-20 NPTF	7/16-20 NPTF	2.689"	5000 PSIG	0.172"
9DP4MO4XMJ4-Z-ETP	Zinc	Extreme Viton®	2.792"	2.215"	1.000"	0.625"	7/16-20 NPTF	7/16-20 NPTF	2.689"	5000 PSIG	0.172"
9DP4MO4XMJ4-NI-V	Electroless Nickel	Viton	2.792"	2.215"	1.000"	0.625"	7/16-20 NPTF	7/16-20 NPTF	2.689"	5000 PSIG	0.172"
9DP4MO4XMJ4-NI-AL	Electroless Nickel	AFLAS	2.792"	2.215"	1.000"	0.625"	7/16-20 NPTF	7/16-20 NPTF	2.689"	5000 PSIG	0.172"
9DP4MO4XMJ4-NI-ETP	Electroless Nickel	Extreme Viton®	2.792"	2.215"	1.000"	0.625"	7/16-20 NPTF	7/16-20 NPTF	2.689"	5000 PSIG	0.172"

9DP4MO6XMJ6-Z-V	Zinc	Viton	2.792"	2.215"	1.000"	0.750"	9/16-18 NPTF	9/16-18 NPTF	2.689"	5000 PSIG	0.250"
9DP4MO6XMJ6-Z-AL	Zinc	AFLAS	2.792"	2.215"	1.000"	0.750"	9/16-18 NPTF	9/16-18 NPTF	2.689"	5000 PSIG	0.250"
9DP4MO6XMJ6-Z-ETP	Zinc	Extreme Viton®	2.792"	2.215"	1.000"	0.750"	9/16-18 NPTF	9/16-18 NPTF	2.689"	5000 PSIG	0.250"
9DP4MO6XMJ6-NI-V	Electroless Nickel	Viton	2.792"	2.215"	1.000"	0.750"	9/16-18 NPTF	9/16-18 NPTF	2.689"	5000 PSIG	0.250"
9DP4MO6XMJ6-NI-AL	Electroless Nickel	AFLAS	2.792"	2.215"	1.000"	0.750"	9/16-18 NPTF	9/16-18 NPTF	2.689"	5000 PSIG	0.250"
9DP4MO6XMJ6-NI-ETP	Electroless Nickel	Extreme Viton®	2.792"	2.215"	1.000"	0.750"	9/16-18 NPTF	9/16-18 NPTF	2.689"	5000 PSIG	0.250"

9DP8MO8XMJ8-Z-V	Zinc	Viton	3.021"	2.376"	1.375"	1.000"	3/4-16 NPTF	3/4-16 NPTF	3.103"	5000 PSIG	0.297"
9DP8MO8XMJ8-Z-AL	Zinc	AFLAS	3.021"	2.376"	1.375"	1.000"	3/4-16 NPTF	3/4-16 NPTF	3.103"	5000 PSIG	0.297"
9DP8MO8XMJ8-Z-ETP	Zinc	Extreme Viton®	3.021"	2.376"	1.375"	1.000"	3/4-16 NPTF	3/4-16 NPTF	3.103"	5000 PSIG	0.297"
9DP8MO8XMJ8-NI-V	Electroless Nickel	Viton	3.021"	2.376"	1.375"	1.000"	3/4-16 NPTF	3/4-16 NPTF	3.103"	5000 PSIG	0.297"
9DP8MO8XMJ8-NI-AL	Electroless Nickel	AFLAS	3.021"	2.376"	1.375"	1.000"	3/4-16 NPTF	3/4-16 NPTF	3.103"	5000 PSIG	0.297"
9DP8MO8XMJ8-NI-ETP	Electroless Nickel	Extreme Viton®	3.021"	2.376"	1.375"	1.000"	3/4-16 NPTF	3/4-16 NPTF	3.103"	5000 PSIG	0.297"

9DP8MO10XMJ10-Z-V	Zinc	Viton	3.291"	2.498"	1.375"	1.000"	7/8-14 NPTF	7/8-14 NPTF	3.253"	5000 PSIG	0.297"
9DP8MO10XMJ10-Z-AL	Zinc	AFLAS	3.291"	2.498"	1.375"	1.000"	7/8-14 NPTF	7/8-14 NPTF	3.253"	5000 PSIG	0.297"
9DP8MO10XMJ10-Z-ETP	Zinc	Extreme Viton®	3.291"	2.498"	1.375"	1.000"	7/8-14 NPTF	7/8-14 NPTF	3.253"	5000 PSIG	0.297"
9DP8MO10XMJ10-NI-V	Electroless Nickel	Viton	3.291"	2.498"	1.375"	1.000"	7/8-14 NPTF	7/8-14 NPTF	3.253"	5000 PSIG	0.297"
9DP8MO10XMJ10-NI-AL	Electroless Nickel	AFLAS	3.291"	2.498"	1.375"	1.000"	7/8-14 NPTF	7/8-14 NPTF	3.253"	5000 PSIG	0.297"
9DP8MO10XMJ10-NI-ETP	Electroless Nickel	Extreme Viton®	3.291"	2.498"	1.375"	1.000"	7/8-14 NPTF	7/8-14 NPTF	3.253"	5000 PSIG	0.297"

9DP12MO12XMJ12-Z-V	Zinc	Viton	3.615"	2.749"	1.560"	1.375"	1-1/16-12 NPTF	1-1/16-12 NPTF	3.465"	4500 PSIG	0.391"
9DP12MO12XMJ12-Z-AL	Zinc	AFLAS	3.615"	2.749"	1.560"	1.375"	1-1/16-12 NPTF	1-1/16-12 NPTF	3.465"	4500 PSIG	0.391"
9DP12MO12XMJ12-Z-ETP	Zinc	Extreme Viton®	3.615"	2.749"	1.560"	1.375"	1-1/16-12 NPTF	1-1/16-12 NPTF	3.465"	4500 PSIG	0.391"
9DP12MO12XMJ12-NI-V	Electroless Nickel	Viton	3.615"	2.749"	1.560"	1.375"	1-1/16-12 NPTF	1-1/16-12 NPTF	3.465"	4500 PSIG	0.391"
9DP12MO12XMJ12-NI-AL	Electroless Nickel	AFLAS	3.615"	2.749"	1.560"	1.375"	1-1/16-12 NPTF	1-1/16-12 NPTF	3.465"	4500 PSIG	0.391"
9DP12MO12XMJ12-NI-ETP	Electroless Nickel	Extreme Viton®	3.615"	2.749"	1.560"	1.375"	1-1/16-12 NPTF	1-1/16-12 NPTF	3.465"	4500 PSIG	0.391"

9DP16MO16XMJ16-Z-V	Zinc	Viton	4.370"	3.411"	1.810"	1.625"	1-5/16-12 NPTF	1-5/16-12 NPTF	4.260"	4000 PSIG	0.484"
9DP16MO16XMJ16-Z-AL	Zinc	AFLAS	4.370"	3.411"	1.810"	1.625"	1-5/16-12 NPTF	1-5/16-12 NPTF	4.260"	4000 PSIG	0.484"
9DP16MO16XMJ16-Z-ETP	Zinc	Extreme Viton®	4.370"	3.411"	1.810"	1.625"	1-5/16-12 NPTF	1-5/16-12 NPTF	4.260"	4000 PSIG	0.484"
9DP16MO16XMJ16-NI-V	Electroless Nickel	Viton	4.370"	3.411"	1.810"	1.625"	1-5/16-12 NPTF	1-5/16-12 NPTF	4.260"	4000 PSIG	0.484"
9DP16MO16XMJ16-NI-AL	Electroless Nickel	AFLAS	4.370"	3.411"	1.810"	1.625"	1-5/16-12 NPTF	1-5/16-12 NPTF	4.260"	4000 PSIG	0.484"
9DP16MO16XMJ16-NI-ETP	Electroless Nickel	Extreme Viton®	4.370"	3.411"	1.810"	1.625"	1-5/16-12 NPTF	1-5/16-12 NPTF	4.260"	4000 PSIG	0.484"

9DP20MO20XMJ20-Z-V	Zinc	Viton	4.934"	3.755"	2.188"	1.875"	1-5/8-12 NPTF	1-5/8-12 NPTF	4.796"	4000 PSIG	0.718"
9DP20MO20XMJ20-Z-AL	Zinc	AFLAS	4.934"	3.755"	2.188"	1.875"	1-5/8-12 NPTF	1-5/8-12 NPTF	4.796"	4000 PSIG	0.718"
9DP20MO20XMJ20-Z-ETP	Zinc	Extreme Viton®	4.934"	3.755"	2.188"	1.875"	1-5/8-12 NPTF	1-5/8-12 NPTF	4.796"	4000 PSIG	0.718"
9DP20MO20XMJ20-NI-V	Electroless Nickel	Viton	4.934"	3.755"	2.188"	1.875"	1-5/8-12 NPTF	1-5/8-12 NPTF	4.796"	4000 PSIG	0.718"
9DP20MO20XMJ20-NI-AL	Electroless Nickel	AFLAS	4.934"	3.755"	2.188"	1.875"	1-5/8-12 NPTF	1-5/8-12 NPTF	4.796"	4000 PSIG	0.718"
9DP20M020XMJ20-NI-ETP	Electroless Nickel	Extreme Viton®	4.934"	3.755"	2.188"	1.875"	1-5/8-12 NPTF	1-5/8-12 NPTF	4.796"	4000 PSIG	0.718"

9DP24MO24XMJ24-NI-V	Electroless Nickel	Viton	5.810"	4.540"	2.375"	2.125"	1-7/8-12 NPTF	1-7/8-12 NPTF	5.510"	4000 PSIG	0.844"
9DP24MO24XMJ24-NI-AL	Electroless Nickel	AFLAS	5.810"	4.540"	2.375"	2.125"	1-7/8-12 NPTF	1-7/8-12 NPTF	5.510"	4000 PSIG	0.844"
9DP24MO24XMJ24-NI-ETP	Electroless Nickel	Extreme Viton®	5.810"	4.540"	2.375"	2.125"	1-7/8-12 NPTF	1-7/8-12 NPTF	5.510"	4000 PSIG	0.844"

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
