9DP24MO24XMJ24-NI-V (DP6963-NI-V) Super Swivel 90° Dual Plane 1-7/8-12 Male O-Ring ORB x 1-7/8-12 Male 37 deg. JIC - 0.844" Through Hole - Electroless Nickel - Viton Seal

  • $464.35
Features:
  • 90° Dual Plane Swivels rotating joints provide free rotation on two axis's with a right-angle change of path.
  • By having two lines with full rotation the complexity of hose lines can be reduced providing minimal friction and allowing free movement of hoses and piping.
  • 90° Dual Plane Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation on two paths.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

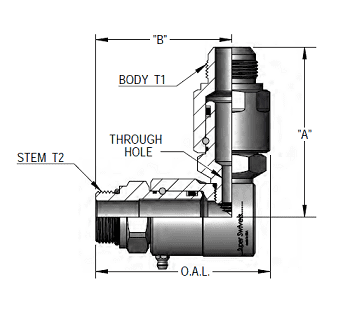

Part Number Material Seal Overall
Length
Dim.
B
Body Wrench / Hex Body T1 Stem T2 Dim.
A
Max
PSIG
Through
Hole
9DP4MO4XMJ4-Z-V Zinc Viton 2.792" 2.215" 1.000" 0.625" 7/16-20 NPTF 7/16-20 NPTF 2.689" 5000 PSIG 0.172"
9DP4MO4XMJ4-Z-AL Zinc AFLAS
9DP4MO4XMJ4-Z-PFA Zinc Teflon
9DP4MO4XMJ4-Z-ETP Zinc Extreme Viton®
9DP4MO4XMJ4-NI-V Electroless Nickel Viton
9DP4MO4XMJ4-NI-AL Electroless Nickel AFLAS
9DP4MO4XMJ4-NI-PFA Electroless Nickel Teflon
9DP4MO4XMJ4-NI-ETP Electroless Nickel Extreme Viton®
9DP4MO6XMJ6-Z-V Zinc Viton 2.792" 2.215" 1.000" 0.750" 9/16-18 NPTF 9/16-18 NPTF 2.689" 5000 PSIG 0.250"
9DP4MO6XMJ6-Z-AL Zinc AFLAS
9DP4MO6XMJ6-Z-PFA Zinc Teflon
9DP4MO6XMJ6-Z-ETP Zinc Extreme Viton®
9DP4MO6XMJ6-NI-V Electroless Nickel Viton
9DP4MO6XMJ6-NI-AL Electroless Nickel AFLAS
9DP4MO6XMJ6-NI-PFA Electroless Nickel Teflon
9DP4MO6XMJ6-NI-ETP Electroless Nickel Extreme Viton®
9DP8MO8XMJ8-Z-V Zinc Viton 3.021" 2.376" 1.375" 1.000" 3/4-16 NPTF 3/4-16 NPTF 3.103" 5000 PSIG 0.297"
9DP8MO8XMJ8-Z-AL Zinc AFLAS
9DP8MO8XMJ8-Z-PFA Zinc Teflon
9DP8MO8XMJ8-Z-ETP Zinc Extreme Viton®
9DP8MO8XMJ8-NI-V Electroless Nickel Viton
9DP8MO8XMJ8-NI-AL Electroless Nickel AFLAS
9DP8MO8XMJ8-NI-PFA Electroless Nickel Teflon
9DP8MO8XMJ8-NI-ETP Electroless Nickel Extreme Viton®
9DP8MO10XMJ10-Z-V Zinc Viton 3.291" 2.498" 1.375" 1.000" 7/8-14 NPTF 7/8-14 NPTF 3.253" 5000 PSIG 0.297"
9DP8MO10XMJ10-Z-AL Zinc AFLAS
9DP8MO10XMJ10-Z-PFA Zinc Teflon
9DP8MO10XMJ10-Z-ETP Zinc Extreme Viton®
9DP8MO10XMJ10-NI-V Electroless Nickel Viton
9DP8MO10XMJ10-NI-AL Electroless Nickel AFLAS
9DP8MO10XMJ10-NI-PFA Electroless Nickel Teflon
9DP8MO10XMJ10-NI-ETP Electroless Nickel Extreme Viton®
9DP12MO12XMJ12-Z-V Zinc Viton 3.615" 2.749" 1.560" 1.375" 1-1/16-12 NPTF 1-1/16-12 NPTF 3.465" 4500 PSIG 0.391"
9DP12MO12XMJ12-Z-AL Zinc AFLAS
9DP12MO12XMJ12-Z-PFA Zinc Teflon
9DP12MO12XMJ12-Z-ETP Zinc Extreme Viton®
9DP12MO12XMJ12-NI-V Electroless Nickel Viton
9DP12MO12XMJ12-NI-AL Electroless Nickel AFLAS
9DP12MO12XMJ12-NI-PFA Electroless Nickel Teflon
9DP12MO12XMJ12-NI-ETP Electroless Nickel Extreme Viton®
9DP16MO16XMJ16-Z-V Zinc Viton 4.370" 3.411" 1.810" 1.625" 1-5/16-12 NPTF 1-5/16-12 NPTF 4.260" 4000 PSIG 0.484"
9DP16MO16XMJ16-Z-AL Zinc AFLAS
9DP16MO16XMJ16-Z-PFA Zinc Teflon
9DP16MO16XMJ16-Z-ETP Zinc Extreme Viton®
9DP16MO16XMJ16-NI-V Electroless Nickel Viton
9DP16MO16XMJ16-NI-AL Electroless Nickel AFLAS
9DP16MO16XMJ16-NI-PFA Electroless Nickel Teflon
9DP16MO16XMJ16-NI-ETP Electroless Nickel Extreme Viton®
9DP20MO20XMJ20-Z-V Zinc Viton 4.934" 3.755" 2.188" 1.875" 1-5/8-12 NPTF 1-5/8-12 NPTF 4.796" 4000 PSIG 0.718"
9DP20MO20XMJ20-Z-AL Zinc AFLAS
9DP20MO20XMJ20-Z-PFA Zinc Teflon
9DP20MO20XMJ20-Z-ETP Zinc Extreme Viton®
9DP20MO20XMJ20-NI-V Electroless Nickel Viton
9DP20MO20XMJ20-NI-AL Electroless Nickel AFLAS
9DP20M020XMJ20-NI-PFA Electroless Nickel Teflon
9DP20M020XMJ20-NI-ETP Electroless Nickel Extreme Viton®
9DP24MO24XMJ24-NI-V Electroless Nickel Viton 5.810" 4.540" 2.375" 2.125" 1-7/8-12 NPTF 1-7/8-12 NPTF 5.510" 4000 PSIG 0.844"
9DP24MO24XMJ24-NI-AL Electroless Nickel AFLAS
9DP24MO24XMJ24-NI-PFA Electroless Nickel Teflon
9DP24MO24XMJ24-NI-ETP Electroless Nickel Extreme Viton®
