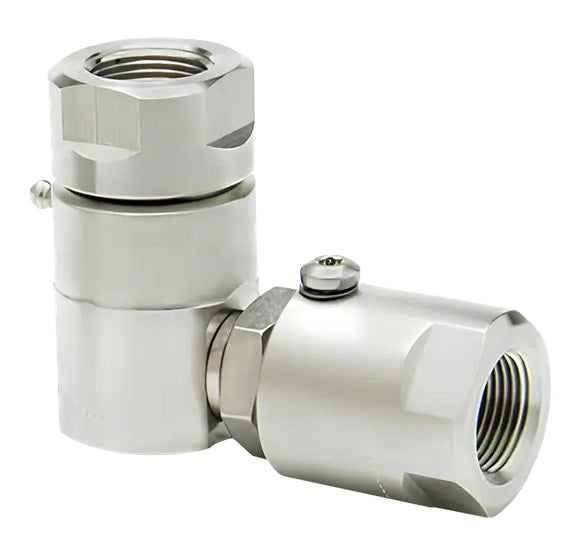

9DP8FP38XFP38-NI-AL (DP5014-NI-AL) Super Swivel 90° Dual Plane 3/8-18 Female Pipe NPTF x 3/8-18 Female Pipe NPTF - 0.297" Through Hole - Electroless Nickel - AFLAS Seal

  • $79.24
Features:
  • 90° Dual Plane Swivels rotating joints provide free rotation on two axis's with a right-angle change of path.
  • By having two lines with full rotation the complexity of hose lines can be reduced providing minimal friction and allowing free movement of hoses and piping.
  • 90° Dual Plane Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation on two paths.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

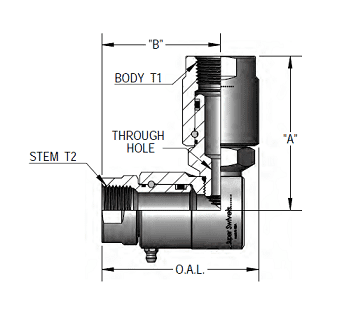

Part Number Material Seal Overall
Length
Dim.
B
Body Wrench / Hex Body T1 Stem T2 Dim.
A
Max
PSIG
Through
Hole
9DP4FP25XFP25-Z-V Zinc Viton 2.480" 2.000" 0.875" 0.750" 1/4-18 NPTF 1/4-18 NPTF 2.689" 5000 PSIG 0.250"
9DP4FP25XFP25-Z-AL Zinc AFLAS
9DP4FP25XFP25-Z-PFA Zinc Teflon
9DP4FP25XFP25-NI-V Electroless Nickel Viton
9DP4FP25XFP25-NI-AL Electroless Nickel AFLAS
9DP4FP25XFP25-NI-PFA Electroless Nickel Teflon
9DP4FP25XFP25-NI-ETP Electroless Nickel Extreme Viton®
9DP8FP38XFP38-Z-V Zinc Viton 2.770" 2.120" 1.125" 0.875" 3/8-18 NPTF 3/8-18 NPTF 3.063" 5000 PSIG 0.297"
9DP8FP38XFP38-Z-AL Zinc AFLAS
9DP8FP38XFP38-Z-PFA Zinc Teflon
9DP8FP38XFP38-Z-ETP Zinc Extreme Viton®
9DP8FP38XFP38-NI-V Electroless Nickel Viton
9DP8FP38XFP38-NI-AL Electroless Nickel AFLAS
9DP8FP38XFP38-NI-PFA Electroless Nickel Teflon
9DP8FP38XFP38-NI-ETP Electroless Nickel Extreme Viton®
9DP8FP50XFP50-Z-V Zinc Viton 2.920" 2.270" 1.250" 1.125" 1/2-14 NPTF 1/2-14 NPTF 3.053" 5000 PSIG 0.297"
9DP8FP50XFP50-Z-AL Zinc AFLAS
9DP8FP50XFP50-Z-PFA Zinc Teflon
9DP8FP50XFP50-Z-ETP Zinc Extreme Viton®
9DP8FP50XFP50-NI-V Electroless Nickel Viton
9DP8FP50XFP50-NI-AL Electroless Nickel AFLAS
9DP8FP50XFP50-NI-PFA Electroless Nickel Teflon
9DP8FP50XFP50-NI-ETP Electroless Nickel Extreme Viton®
9DP12FP75XFP75-Z-V Zinc Viton 3.200" 2.360" 1.500" 1.375" 3/4-14 NPTF 3/4-14 NPTF 3.190" 4500 PSIG 0.391"
9DP12FP75XFP75-Z-AL Zinc AFLAS
9DP12FP75XFP75-Z-PFA Zinc Teflon
9DP12FP75XFP75-Z-ETP Zinc Extreme Viton®
9DP12FP75XFP75-NI-V Electroless Nickel Viton
9DP12FP75XFP75-NI-AL Electroless Nickel AFLAS
9DP12FP75XFP75-NI-PFA Electroless Nickel Teflon
9DP12FP75XFP75-NI-ETP Electroless Nickel Extreme Viton®
9DP16FP100XFP100-Z-V Zinc Viton 3.940" 2.980" 1.750" 1.625" 1-11-1/2 NPTF 1-11-1/2 NPTF 4.090" 4000 PSIG 0.484"
9DP16FP100XFP100-Z-AL Zinc AFLAS
9DP16FP100XFP100-Z-PFA Zinc Teflon
9DP16FP100XFP100-Z-ETP Zinc Extreme Viton®
PDP16FP100XFP100-NI-V Electroless Nickel Viton
9DP16FP100XFP100-NI-AL Electroless Nickel AFLAS
9DP16FP100XFP100-NI-PFA Electroless Nickel Teflon
9DP16FP100XFP100-NI-ETP Electroless Nickel Extreme Viton®
9DP20FP125XFP125-Z-V Zinc Viton 4.460" 3.285" 2.125" 2.000" 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 4.631" 4000 PSIG 0.718"
9DP20FP125XFP125-Z-AL Zinc AFLAS
9DP20FP125XFP125-Z-PFA Zinc Teflon
9DP20FP125XFP125-Z-ETP Zinc Extreme Viton®
9DP20FP125XFP125-NI-V Electroless Nickel Viton
9DP20FP125XFP125-NI-AL Electroless Nickel AFLAS
9DP20FP125XFP125-NI-PFA Electroless Nickel Teflon
9DP20FP125XFP125-NI-ETP Electroless Nickel Extreme Viton®
9DP24FP150XFP150-NI-V Electroless Nickel Viton 5.310" 4.040" 2.375" 2.375" 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 5.351" 4000 PSIG 0.844"
9DP24FP150XFP150-NI-AL Electroless Nickel AFLAS
9DP24FP150XFP150-NI-PFA Electroless Nickel Teflon
9DP24FP150XFP150-NI-ETP Electroless Nickel Extreme Viton®
