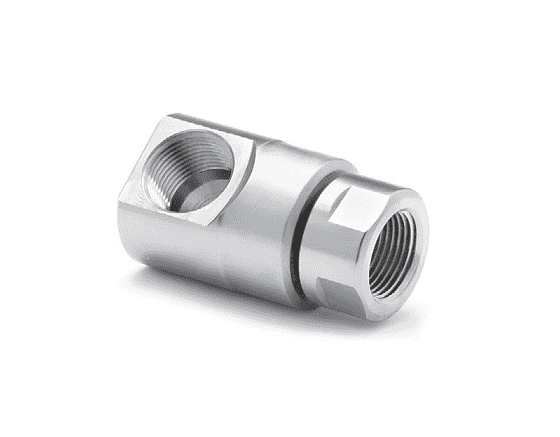

9SS12FP75XFP75-NI-86-TFE by Super Swivel | 24059-NI-86-TFE | Automatic Car Wash Swivel | 3/4-14 Female Pipe NPTF x 3/4-14 Female Pipe NPTF | 90° Elbow | Electroless Nickel | TFE Seal

9SS12FP75XFP75-NI-86-TFE by Super Swivel | 24059-NI-86-TFE | Automatic Car Wash Swivel | 3/4-14 Female Pipe NPTF x 3/4-14 Female Pipe NPTF | 90° Elbow | Electroless Nickel | TFE Seal

Save $67.36 Save $67.36
$168.40
$168.40 - $168.40
$168.40
$101.04
$101.04 - $101.04
$101.04

Super Swivels
Automatic Car Wash Industy - 90° - Female Pipe NPTF X Female Pipe NPTF
Specifications for Variant SKU: 9SS12FP75XFP75-NI-86-TFE Super Swivels #24059
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female NPTF, 3/4in Female NPTF, Some Ends Match
Material(s): Nickel-Plated Carbon Steel
Seal Material(s): TFE
Overview:
  • Super Swivels offers a large variety of sizes and configurations to fulfill industry applications. Their superior alloy steel construction and stainless steel ball bearings resist heavy side loads and provide a long life of service. Quality patented design coupled with meticulous construction, combined with rebuilding kits assure the best value and longest life in tough use.
Features:
  • Rated To 5000 PSI
  • Heat Treated
  • Nickel Plated
  • Superior Quality Alloy Steel
  • Withstands Heavy Side Loads
  • Full Flow - Low Pressure Drop
  • Burnished (Micro Smooth) Barrel Bores
  • Stainless Steel Ball Bearings
  • TFE or UHMW Piston Ring Seals
Seal Rebuilding Kits:
Part Number Material Seal Overall
Length		 Diameter Female
Pipe NPTF		 Female
Pipe NPTF		 Max
RPM		 Max
Working
Pressure		 Rebuild Kit
9SS12FP75XFP75-NI-86-TFE Electroless Nickel TFE 3.03" 1.71" 3/4-14 NPTF 3/4-14 NPTF 5 RPM 3000 PSI SS-12-KIT-TFE
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
