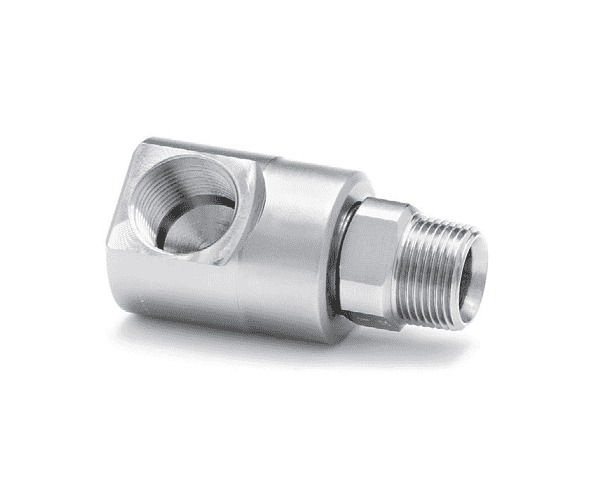

9SS12MP75XFP75-NI-86-TFE by Super Swivel | 24022-NI-86-TFE | Automatic Car Wash Swivel | 3/4-14 Male Pipe NPTF x 3/4-14 Female Pipe NPTF | 90° Elbow | Electroless Nickel | TFE Seal

9SS12MP75XFP75-NI-86-TFE by Super Swivel | 24022-NI-86-TFE | Automatic Car Wash Swivel | 3/4-14 Male Pipe NPTF x 3/4-14 Female Pipe NPTF | 90° Elbow | Electroless Nickel | TFE Seal

Save $4.27 Save $4.27
$92.81
$92.81 - $92.81
$92.81
$88.54
$88.54 - $88.54
$88.54

Super Swivels
Automatic Car Wash Industy - 90° - Male Pipe NPTF X Female Pipe NPTF
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: 9SS12MP75XFP75-NI-86-TFE Super Swivels #24022
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Male NPTF, 3/4in Female NPTF
Material(s): Nickel-Plated Carbon Steel
Seal Material(s): TFE
Overview:
  • Super Swivels offers a large variety of sizes and configurations to fulfill industry applications. Their superior alloy steel construction and stainless steel ball bearings resist heavy side loads and provide a long life of service. Quality patented design coupled with meticulous construction, combined with rebuilding kits assure the best value and longest life in tough use.
Features:
  • Rated To 5000 PSI
  • Heat Treated
  • Nickel Plated
  • Superior Quality Alloy Steel
  • Withstands Heavy Side Loads
  • Full Flow - Low Pressure Drop
  • Burnished (Micro Smooth) Barrel Bores
  • Stainless Steel Ball Bearings
  • TFE or UHMW Piston Ring Seals
Seal Rebuilding Kits:
Part Number Material Seal Overall
Length		 Diameter Male
Pipe NPTF		 Female
Pipe NPTF		 Max
RPM		 Max
Working
Pressure		 Rebuild Kit
9SS12MP75XFP75-NI-86-TFE Electroless Nickel TFE 3.40" 1.71" 3/4-14 NPTF 3/4-14 NPTF 5 RPM 3000 PSI SS-12-KIT-TFE
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
