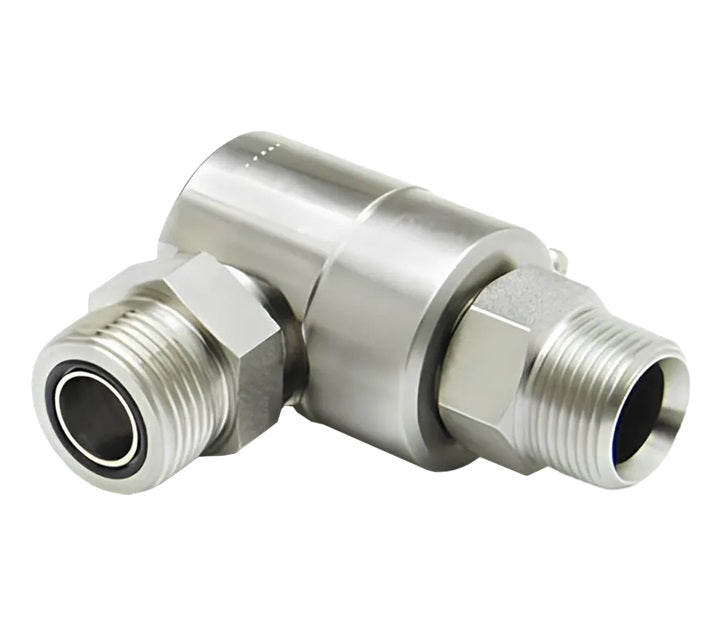

9SS12MP75XMFS12-NI-V (8563-NI-V) Super Swivel 90° 3/4-14 Male Pipe NPTF x 13/16-12 Male Face Seal MFS - 0.389" Through Hole - Electroless Nickel - Viton Seal

  • $67.40
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

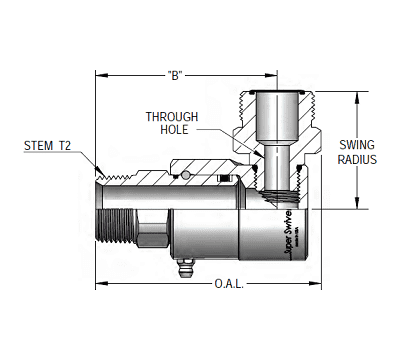

Part Number Material Seal Overall
Length
Dim.
B
Wrench/Hex Port T1 Stem T2 SWG.
Radius
Max
PSIG
Through
Hole
9SS4MP25XMFS6-Z-V Zinc Viton 2.640" 2.130" 0.625" 11/16-16 UN 1/4-18 NPTF 1.314" 5000 PSIG 0.265"
9SS4MP25XMFS6-Z-AL Zinc AFLAS
9SS4MP25XMFS6-Z-PFA Zinc Teflon
9SS4MP25XMFS6-Z-ETP Zinc Extreme Viton®
9SS4MP25XMFS6-NI-V Electroless Nickel Viton
9SS4MP25XMFS6-NI-AL Electroless Nickel AFLAS
9SS4MP25XMFS6-NI-PFA Electroless Nickel Teflon
9SS4MP25XMFS6-NI-ETP Electroless Nickel Extreme Viton®
9SS4MP38XMFS6-Z-V Zinc Viton 2.720" 2.210" 0.750" 11/16-16 UN 3/8-18 NPTF 1.314" 5000 PSIG 0.265"
9SS4MP38XMFS6-Z-AL Zinc AFLAS
9SS4MP38XMFS6-Z-PFA Zinc Teflon
9SS4MP38XMFS6-Z-ETP Zinc Extreme Viton®
9SS4MP38XMFS6-NI-V Electroless Nickel Viton
9SS4MP38XMFS6-NI-AL Electroless Nickel AFLAS
9SS4MP38XMFS6-NI-PFA Electroless Nickel Teflon
9SS4MP38XMFS6-NI-ETP Electroless Nickel Extreme Viton®
9SS8MP38XMFS6-Z-V Zinc Viton 2.670" 2.125" 1.000" 11/16-16 UN 3/8-18 NPTF 1.432" 5000 PSIG 0.265"
9SS8MP38XMFS6-Z-AL Zinc AFLAS
9SS8MP38XMFS6-Z-PFA Zinc Teflon
9SS8MP38XMFS6-Z-ETP Zinc Extreme Viton®
9SS8MP38XMFS6-NI-V Electroless Nickel Viton
9SS8MP38XMFS6-NI-AL Electroless Nickel AFLAS
9SS8MP38XMFS6-NI-PFA Electroless Nickel Teflon
9SS8MP38XMFS6-NI-ETP Electroless Nickel Extreme Viton®
9SS8MP38XMFS8-Z-V Zinc Viton 2.670" 2.125" 1.000" 13/16-16 UN 3/8-18 NPTF 1.669" 5000 PSIG 0.265"
9SS8MP38XMFS8-Z-AL Zinc AFLAS
9SS8MP38XMFS8-Z-PFA Zinc Teflon
9SS8MP38XMFS8-Z-ETP Zinc Extreme Viton®
9SS8MP38XMFS8-NI-V Electroless Nickel Viton
9SS8MP38XMFS8-NI-AL Electroless Nickel AFLAS
9SS8MP38XMFS8-NI-PFA Electroless Nickel Teflon
9SS8MP38XMFS8-NI-ETP Electroless Nickel Extreme Viton®
9SS8MP50XMFS8-Z-V Zinc Viton 3.170" 2.620" 1.000" 13/16-16 UN 1/2-14 NPTF 1.669" 5000 PSIG 0.265"
9SS8MP50XMFS8-Z-AL Zinc AFLAS
9SS8MP50XMFS8-Z-PFA Zinc Teflon
9SS8MP50XMFS8-Z-ETP Zinc Extreme Viton®
9SS8MP50XMFS8-NI-V Electroless Nickel Viton
9SS8MP50XMFS8-NI-AL Electroless Nickel AFLAS
9SS8MP50XMFS8-NI-PFA Electroless Nickel Teflon
9SS8MP50XMFS8-NI-ETP Electroless Nickel Extreme Viton®
9SS8MP50XMFS10-Z-V Zinc Viton 3.170" 2.620" 1.000" 1-14 UN 1/2-14 NPTF 1.826" 5000 PSIG 0.265"
9SS8MP50XMFS10-Z-AL Zinc AFLAS
9SS8MP50XMFS10-Z-PFA Zinc Teflon
9SS8MP50XMFS10-Z-ETP Zinc Extreme Viton®
9SS8MP50XMFS10-NI-V Electroless Nickel Viton
9SS8MP50XMFS10-NI-AL Electroless Nickel AFLAS
9SS8MP50XMFS10-NI-PFA Electroless Nickel Teflon
9SS8MP50XMFS10-NI-ETP Electroless Nickel Extreme Viton®
9SS12MP75XMFS12-Z-V Zinc Viton 3.400" 2.760" 1.125" 1-3/16-12 UN 3/4-14 NPTF 2.089" 4500 PSIG 0.389"
9SS12MP75XMFS12-Z-AL Zinc AFLAS
9SS12MP75XMFS12-Z-PFA Zinc Teflon
9SS12MP75XMFS12-Z-ETP Zinc Extreme Viton®
9SS12MP75XMFS12-NI-V Electroless Nickel Viton
9SS12MP75XMFS12-NI-AL Electroless Nickel AFLAS
9SS12MP75XMFS12-NI-PFA Electroless Nickel Teflon
9SS12MP75XMFS12-NI-ETP Electroless Nickel Extreme Viton®
9SS16MP100XMFS16-Z-V Zinc Viton 4.320" 3.462" 1.375" 1-7/16-12 UN 1-11-1/2 NPTF 2.255" 4000 PSIG 0.484"
9SS16MP100XMFS16-Z-AL Zinc AFLAS
9SS16MP100XMFS16-Z-PFA Zinc Teflon
9SS16MP100XMFS16-Z-ETP Zinc Extreme Viton®
9SS16MP100XMFS16-NI-V Electroless Nickel Viton
9SS16MP100XMFS16-NI-AL Electroless Nickel AFLAS
9SS16MP100XMFS16-NI-PFA Electroless Nickel Teflon
9SS16MP100XMFS16-NI-ETP Electroless Nickel Extreme Viton®
9SS20MP125XMFS20-Z-V Zinc Viton 4.800" 3.795" 1.750" 1-11/16-12 UN 1-1/4-11-1/2 NPTF 2.658" 4000 PSIG 0.718"
9SS20MP125XMFS20-Z-AL Zinc AFLAS
9SS20MP125XMFS20-Z-PFA Zinc Teflon
9SS20MP125XMFS20-Z-ETP Zinc Extreme Viton®
9SS20MP125XMFS20-NI-V Electroless Nickel Viton
9SS20MP125XMFS20-NI-AL Electroless Nickel AFLAS
9SS20MP125XMFS20-NI-PFA Electroless Nickel Teflon
9SS20MP125XMFS20-NI-ETP Electroless Nickel Extreme Viton®
9SS24MP150XMFS24-NI-V Electroless Nickel Viton 5.846" 4.620" 1.995" 2-12 UN 1-1/4-11-1/2 NPTF 2.904" 4000 PSIG 0.844"
9SS24MP150XMFS24-NI-AL Electroless Nickel AFLAS
9SS24MP150XMFS24-NI-PFA Electroless Nickel Teflon
9SS24MP150XMFS24-NI-ETP Electroless Nickel Extreme Viton®
