Specifications for Variant SKU: 9SS16MJ16XFO16-Z-V Super Swivels #5240
Shape (Orientation):	90 Degree
Ends Configuration:	1in Male JIC, 1in Female O-Ring Boss
Material(s):	Zink-Plated Carbon Steel
Seal Material(s):	Viton/FKM

Features:

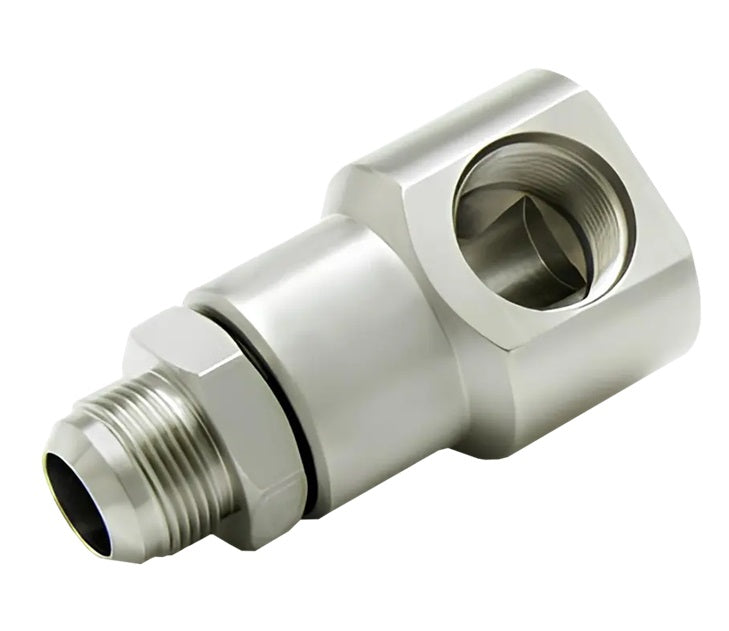

90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path. They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping. 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation. Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks. Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics. No Kinks - No Hose Twisting.
Notes:
Super Swivels are not recommended for breathing air/oxygen or steam. All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure. Any series stem will fit with the same series body.
Base Material and Plating:
Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc. Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
(V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F) (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F) (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

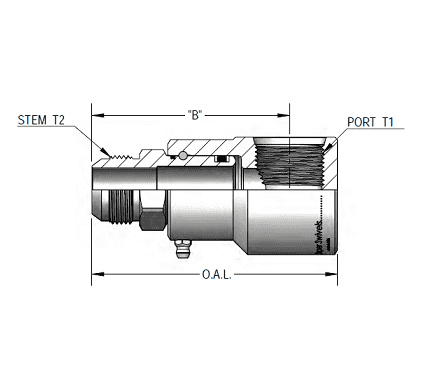

Part Number	Material	Seal	Overall Length	Dim. B	Dim. D Ø	Wrench/Hex	Port T1	Stem T2	SWG. Radius	Max PSIG	Through Hole
9SS4MJ4XFO6-Z-V	Zinc	Viton	2.837"	2.325"	1.292"	0.625"	9/16-18 UN	7/16-20 UN	0.541"	5000 PSIG	0.172"
9SS4MJ4XFO6-Z-AL	Zinc	AFLAS	2.837"	2.325"	1.292"	0.625"	9/16-18 UN	7/16-20 UN	0.541"	5000 PSIG	0.172"
9SS4MJ4XFO6-Ni-V	Electroless Nickel	Viton	2.837"	2.325"	1.292"	0.625"	9/16-18 UN	7/16-20 UN	0.541"	5000 PSIG	0.172"
9SS4MJ4XFO6-Ni-AL	Electroless Nickel	AFLAS	2.837"	2.325"	1.292"	0.625"	9/16-18 UN	7/16-20 UN	0.541"	5000 PSIG	0.172"

9SS4MJ6XFO6-Z-V	Zinc	Viton	2.857"	2.345"	1.292"	0.625"	9/16-18 UN	9/16-18 UN	0.541"	5000 PSIG	0.250"
9SS4MJ6XFO6-Z-AL	Zinc	AFLAS	2.857"	2.345"	1.292"	0.625"	9/16-18 UN	9/16-18 UN	0.541"	5000 PSIG	0.250"
9SS4MJ6XFO6-Z-ETP	Zinc	Extreme Viton®	2.857"	2.345"	1.292"	0.625"	9/16-18 UN	9/16-18 UN	0.541"	5000 PSIG	0.250"
9SS4MJ6XFO6-Ni-V	Electroless Nickel	Viton	2.857"	2.345"	1.292"	0.625"	9/16-18 UN	9/16-18 UN	0.541"	5000 PSIG	0.250"
9SS4MJ6XFO6-Ni-AL	Electroless Nickel	AFLAS	2.857"	2.345"	1.292"	0.625"	9/16-18 UN	9/16-18 UN	0.541"	5000 PSIG	0.250"
9SS4MJ6XFO6-Ni-ETP	Electroless Nickel	Extreme Viton®	2.857"	2.345"	1.292"	0.625"	9/16-18 UN	9/16-18 UN	0.541"	5000 PSIG	0.250"

9SS8MJ8XFO8-Z-V	Zinc	Viton	3.070"	2.520"	1.662"	1.000"	3/4-16 UN	3/4-16 UN	0.703"	5000 PSIG	0.391"
9SS8MJ8XFO8-Z-AL	Zinc	AFLAS	3.070"	2.520"	1.662"	1.000"	3/4-16 UN	3/4-16 UN	0.703"	5000 PSIG	0.391"
9SS8MJ8XFO8-Z-ETP	Zinc	Extreme Viton®	3.070"	2.520"	1.662"	1.000"	3/4-16 UN	3/4-16 UN	0.703"	5000 PSIG	0.391"
9SS8MJ8XFO8-Ni-V	Electroless Nickel	Viton	3.070"	2.520"	1.662"	1.000"	3/4-16 UN	3/4-16 UN	0.703"	5000 PSIG	0.391"
9SS8MJ8XFO8-Ni-AL	Electroless Nickel	AFLAS	3.070"	2.520"	1.662"	1.000"	3/4-16 UN	3/4-16 UN	0.703"	5000 PSIG	0.391"
9SS8MJ8XFO8-Ni-ETP	Electroless Nickel	Extreme Viton®	3.070"	2.520"	1.662"	1.000"	3/4-16 UN	3/4-16 UN	0.703"	5000 PSIG	0.391"

9SS8MJ10XFO8-Z-V	Zinc	Viton	3.170"	2.600"	1.662"	1.000"	3/4-16 UN	7/8-14 UN	0.703"	5000 PSIG	0.484"
9SS8MJ10XFO8-Z-AL	Zinc	AFLAS	3.170"	2.600"	1.662"	1.000"	3/4-16 UN	7/8-14 UN	0.703"	5000 PSIG	0.484"
9SS8MJ10XFO8-Z-ETP	Zinc	Extreme Viton®	3.170"	2.600"	1.662"	1.000"	3/4-16 UN	7/8-14 UN	0.703"	5000 PSIG	0.484"
9SS8MJ10XFO8-Ni-V	Electroless Nickel	Viton	3.170"	2.600"	1.662"	1.000"	3/4-16 UN	7/8-14 UN	0.703"	5000 PSIG	0.484"
9SS8MJ10XFO8-Ni-AL	Electroless Nickel	AFLAS	3.170"	2.600"	1.662"	1.000"	3/4-16 UN	7/8-14 UN	0.703"	5000 PSIG	0.484"
9SS8MJ10XFO8-Ni-ETP	Electroless Nickel	Extreme Viton®	3.170"	2.600"	1.662"	1.000"	3/4-16 UN	7/8-14 UN	0.703"	5000 PSIG	0.484"

9SS12MJ12XFO12-Z-V	Zinc	Viton	3.845"	3.020"	2.172"	1.125"	1-1/16-12 UN	1-1/16-12 UN	0.900"	4500 PSIG	0.609"
9SS12MJ12XFO12-Z-AL	Zinc	AFLAS	3.845"	3.020"	2.172"	1.125"	1-1/16-12 UN	1-1/16-12 UN	0.900"	4500 PSIG	0.609"
9SS12MJ12XFO12-Z-ETP	Zinc	Extreme Viton®	3.845"	3.020"	2.172"	1.125"	1-1/16-12 UN	1-1/16-12 UN	0.900"	4500 PSIG	0.609"
9SS12MJ12XFO12-Ni-V	Electroless Nickel	Viton	3.845"	3.020"	2.172"	1.125"	1-1/16-12 UN	1-1/16-12 UN	0.900"	4500 PSIG	0.609"
9SS12MJ12XFO12-Ni-AL	Electroless Nickel	AFLAS	3.845"	3.020"	2.172"	1.125"	1-1/16-12 UN	1-1/16-12 UN	0.900"	4500 PSIG	0.609"
9SS12MJ12XFO12-Ni-ETP	Electroless Nickel	Extreme Viton®	3.845"	3.020"	2.172"	1.125"	1-1/16-12 UN	1-1/16-12 UN	0.900"	4500 PSIG	0.609"

9SS16MJ16XFO16-Z-V	Zinc	Viton	4.695"	3.780"	2.482"	1.375"	1-5/16-12 UN	1-5/16-12 UN	1.009"	4000 PSIG	0.827"
9SS16MJ16XFO16-Z-AL	Zinc	AFLAS	4.695"	3.780"	2.482"	1.375"	1-5/16-12 UN	1-5/16-12 UN	1.009"	4000 PSIG	0.827"
9SS16MJ16XFO16-Z-ETP	Zinc	Extreme Viton®	4.695"	3.780"	2.482"	1.375"	1-5/16-12 UN	1-5/16-12 UN	1.009"	4000 PSIG	0.827"
9SS16MJ16XFO16-Ni-V	Electroless Nickel	Viton	4.695"	3.780"	2.482"	1.375"	1-5/16-12 UN	1-5/16-12 UN	1.009"	4000 PSIG	0.827"
9SS16MJ16XFO16-Ni-AL	Electroless Nickel	AFLAS	4.695"	3.780"	2.482"	1.375"	1-5/16-12 UN	1-5/16-12 UN	1.009"	4000 PSIG	0.827"
9SS16MJ16XFO16-Ni-ETP	Electroless Nickel	Extreme Viton®	4.695"	3.780"	2.482"	1.375"	1-5/16-12 UN	1-5/16-12 UN	1.009"	4000 PSIG	0.827"

9SS20MJ20XFO20-Z-V	Zinc	Viton	5.207"	4.124"	2.977"	1.750"	1-5/8-12 UN	1-5/8-12 UN	1.184"	4000 PSIG	1.078"
9SS20MJ20XFO20-Z-AL	Zinc	AFLAS	5.207"	4.124"	2.977"	1.750"	1-5/8-12 UN	1-5/8-12 UN	1.184"	4000 PSIG	1.078"
9SS20MJ20XFO20-Z-ETP	Zinc	Extreme Viton®	5.207"	4.124"	2.977"	1.750"	1-5/8-12 UN	1-5/8-12 UN	1.184"	4000 PSIG	1.078"
9SS20MJ20XFO20-Ni-V	Electroless Nickel	Viton	5.207"	4.124"	2.977"	1.750"	1-5/8-12 UN	1-5/8-12 UN	1.184"	4000 PSIG	1.078"
9SS20MJ20XF020-Ni-AL	Electroless Nickel	AFLAS	5.207"	4.124"	2.977"	1.750"	1-5/8-12 UN	1-5/8-12 UN	1.184"	4000 PSIG	1.078"
9SS20MJ20XFO20-Ni-ETP	Electroless Nickel	Extreme Viton®	5.207"	4.124"	2.977"	1.750"	1-5/8-12 UN	1-5/8-12 UN	1.184"	4000 PSIG	1.078"
