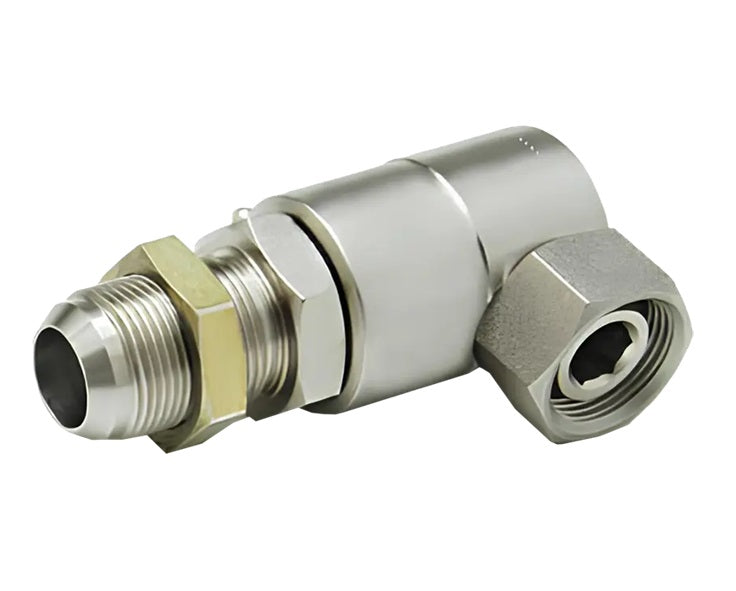

Continue Shopping9SS16MJB16XPS100-Ni-V (6653-Ni-V) Super Swivel 90° 1-5/16-12 Male 37 deg. JIC Bulkhead x 1-11-1/2 Female Pipe Swivel NPSM - 0.590" Through Hole - Electroless Nickel - Viton Seal
- $93.48
| Features: | |||
|---|---|---|---|
|
|||
| Notes: | |||
|
|||
| Base Material and Plating: | |||
|
|||
| Seal Material: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Seal | Overall Length |
Dim. B |
Swivel Hex |
Wrench/Hex | Swivel Nut T1 |
Stem T2 | SWG. Radius |
Max PSIG |
Through Hole |
| 9SS4MJB6XPS25-Z-V | Zinc | Viton | 3.500" | 2.990" | 0.688" | 0.812" | 1/4-18 NPSM | 9/16-18 UN | 1.350" | 3500 PSIG | 0.250" |
| 9SS4MJB6XPS25-Z-AL | Zinc | AFLAS | |||||||||
| 9SS4MJB6XPS25-Z-PFA | Zinc | Teflon | |||||||||
| 9SS4MJB6XPS25-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS4MJB6XPS25-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS4MJB6XPS25-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB8XPS38-Z-V | Zinc | Viton | 3.805" | 3.258" | 0.875" | 1.000" | 3/8-18 NPSM | 3/4-16 UN | 1.437" | 3500 PSIG | 0.327" |
| 9SS8MJB8XPS38-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB8XPS38-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB8XPS38-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB8XPS38-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB8XPS38-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB8XPS38-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB8XPS38-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS8MJB8XPS50-Z-V | Zinc | Viton | 3.835" | 3.258" | 1.000" | 1.000" | 1/2-14 NPSM | 3/4-16 UN | 1.521" | 3500 PSIG | 0.327" |
| 9SS8MJB8XPS50-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB8XPS50-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB8XPS50-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB8XPS50-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB8XPS50-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB8XPS50-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB8XPS50-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS8MJB10XPS50-Z-V | Zinc | Viton | 4.055" | 3.478" | 1.000" | 1.125" | 1/2-14 NPSM | 7/8-14 UN | 1.521" | 3500 PSIG | 0.390" |
| 9SS8MJB10XPS50-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB10XPS50-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB10XPS50-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB10XPS50-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB10XPS50-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB10XPS50-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB10XPS50-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS12MJB12XPS75-Z-V | Zinc | Viton | 4.526" | 3.805" | 1.250" | 1.375" | 3/4-14 NPSM | 1-1/16-12 UN | 1.664" | 3500 PSIG | 0.521" |
| 9SS12MJB12XPS75-Z-AL | Zinc | AFLAS | |||||||||
| 9SS12MJB12XPS75-Z-PFA | Zinc | Teflon | |||||||||
| 9SS12MJB12XPS75-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS12MJB12XPS75-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS12MJB12XPS75-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS12MJB12XPS75-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS12MJB12XPS75-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS16MJB16XPS100-Z-V | Zinc | Viton | 5.182" | 4.317" | 1.500" | 1.625" | 1-11-1/2 NPSM | 1-5/16-12 UN | 1.956" | 3500 PSIG | 0.590" |
| 9SS16MJB16XPS100-Z-AL | Zinc | AFLAS | |||||||||
| 9SS16MJB16XPS100-Z-PFA | Zinc | Teflon | |||||||||
| 9SS16MJB16XPS100-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS16MJB16XPS100-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS16MJB16XPS100-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS16MJB16XPS100-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS16MJB16XPS100-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS20MJB20XPS125-Z-V | Zinc | Viton | 5.812" | 4.730" | 1.875" | 1.875" | 1-1/4-11-1/2 NPSM | 1-5/8-12 UN | 2.570" | 3500 PSIG | 0.906" |
| 9SS20MJB20XPS125-Z-AL | Zinc | AFLAS | |||||||||
| 9SS20MJB20XPS125-Z-PFA | Zinc | Teflon | |||||||||
| 9SS20MJB20XPS125-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS20MJB20XPS125-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS20MJB20XPS125-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS20MJB20XPS125-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS20MJB20XPS125-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
