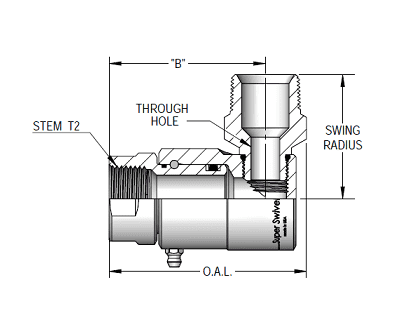

9SS20FP125XMP125-Z-V (7170-Z-V) Super Swivel 90° 1-1/4-11-1/2 Female Pipe NPTF x 1-1/4-11-1/2 Male Pipe NPTF - 0.827" Through Hole - Zinc - Viton Seal

  • $115.76
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)
Part Number Material Seal Overall
Wrench/Hex Port T1 Stem T2 SWG.
9SS4FP25XMP25-Z-V Zinc Viton 2.510" 2.000" 0.750" 1/4-18 NPTF 1/4-18 NPTF 1.440" 3500 PSIG 0.250"
9SS4FP25XMP25-Z-PFA Zinc Teflon
9SS4FP25XMP25-Z-ETP Zinc Extreme Viton®
9SS4FP25XMP25-Ni-V Electroless Nickel Viton
9SS4FP25XMP25-Ni-AL Electroless Nickel AFLAS
9SS4FP25XMP25-Ni-PFA Electroless Nickel Teflon
9SS4FP25XMP25-Ni-ETP Electroless Nickel Extreme Viton®
9SS8FP38XMP38-Z-V Zinc Viton 2.670" 2.120" 0.875" 3/8-18 NPTF 3/8-18 NPTF 1.440" 3500 PSIG 0.297"
9SS8FP38XMP38-Z-PFA Zinc Teflon
9SS8FP38XMP38-Z-ETP Zinc Extreme Viton®
9SS8FP38XMP38-Ni-V Electroless Nickel Viton
9SS8FP38XMP38-Ni-AL Electroless Nickel AFLAS
9SS8FP38XMP38-Ni-PFA Electroless Nickel Teflon
9SS8FP38XMP38-Ni-ETP Electroless Nickel Extreme Viton®
9SS8FP38XMP50-Z-V Zinc Viton 2.670" 2.120" 0.875" 1/2-14 NPTF 3/8-18 NPTF 1.440" 3500 PSIG 0.297"
9SS8FP38XMP50-Z-PFA Zinc Teflon
9SS8FP38XMP50-Z-ETP Zinc Extreme Viton®
9SS8FP38XMP50-Ni-V Electroless Nickel Viton
9SS8FP38XMP50-Ni-AL Electroless Nickel AFLAS
9SS8FP38XMP50-Ni-PFA Electroless Nickel Teflon
9SS8FP38XMP50-Ni-ETP Electroless Nickel Extreme Viton®
9SS8FP50XMP38-Z-V Zinc Viton 2.850" 2.270" 1.125" 3/8-18 NPTF 1/2-14 NPTF 1.556" 3500 PSIG 0.297"
9SS8FP50XMP38-Z-PFA Zinc Teflon
9SS8FP50XMP38-Z-ETP Zinc Extreme Viton®
9SS8FP50XMP38-Ni-V Electroless Nickel Viton
9SS8FP50XMP38-Ni-AL Electroless Nickel AFLAS
9SS8FP50XMP38-Ni-PFA Electroless Nickel Teflon
9SS8FP50XMP38-Ni-ETP Electroless Nickel Extreme Viton®
9SS8FP50XMP50-Z-V Zinc Viton 2.850" 2.270" 1.125" 1/2-14 NPTF 1/2-14 NPTF 1.848" 3500 PSIG 0.297"
9SS8FP50XMP50-Z-PFA Zinc Teflon
9SS8FP50XMP50-Z-ETP Zinc Extreme Viton®
9SS8FP50XMP50-Ni-V Electroless Nickel Viton
9SS8FP50XMP50-Ni-AL Electroless Nickel AFLAS
9SS8FP50XMP50-Ni-PFA Electroless Nickel Teflon
9SS8FP50XMP50-Ni-ETP Electroless Nickel Extreme Viton®
9SS12FP75XMP75-Z-V Zinc Viton 3.000" 2.360" 1.375" 3/4-14 NPTF 3/4-14 NPTF 1.998" 3500 PSIG 0.484"
9SS12FP75XMP75-Z-PFA Zinc Teflon
9SS12FP75XMP75-Z-ETP Zinc Extreme Viton®
9SS12FP75XMP75-Ni-V Electroless Nickel Viton
9SS12FP75XMP75-Ni-AL Electroless Nickel AFLAS
9SS12FP75XMP75-Ni-PFA Electroless Nickel Teflon
9SS12FP75XMP75-Ni-ETP Electroless Nickel Extreme Viton®
9SS16FP100XMP100-Z-V Zinc Viton 3.780" 3.020" 1.625" 1-11-1/2 NPTF 1-11-1/2 NPTF 2.370" 3500 PSIG 0.550"
9SS16FP100XMP100-Z-AL Zinc AFLAS
9SS16FP100XMP100-Z-PFA Zinc Teflon
9SS16FP100XMP100-Z-ETP Zinc Extreme Viton®
9SS16FP100XMP100-Ni-V Electroless Nickel Viton
9SS16FP100XMP100-Ni-AL Electroless Nickel AFLAS
9SS16FP100XMP100-Ni-PFA Electroless Nickel Teflon
9SS16FP100XMP100-Ni-ETP Electroless Nickel Extreme Viton®
9SS20FP125XMP125-Z-V Zinc Viton 4.300" 3.285" 2.000" 1-1/4-11-1/2 NPTF 1-1/4-11-1/2 NPTF 2.987" 3500 PSIG 0.827"
9SS20FP125XMP125-Z-AL Zinc AFLAS
9SS20FP125XMP125-Z-PFA Zinc Teflon
9SS20FP125XMP125-Z-ETP Zinc Extreme Viton®
9SS20FP125XMP125-Ni-V Electroless Nickel Viton
9SS20FP125XMP125-Ni-AL Electroless Nickel AFLAS
9SS20FP125XMP125-Ni-PFA Electroless Nickel Teflon
9SS20FP125XMP125-Ni-ETP Electroless Nickel Extreme Viton®
9SS24FP150XMP150-Ni-V Electroless Nickel Viton 5.190" 4.040" 2.375" 1-1/2-11-1/2 NPTF 1-1/2-11-1/2 NPTF 3.050" 3500 PSIG 0.944"
9SS24FP150XMP150-Ni-AL Electroless Nickel AFLAS
9SS24FP150XMP150-Ni-PFA Electroless Nickel Teflon
9SS24FP150XMP150-Ni-ETP Electroless Nickel Extreme Viton®
