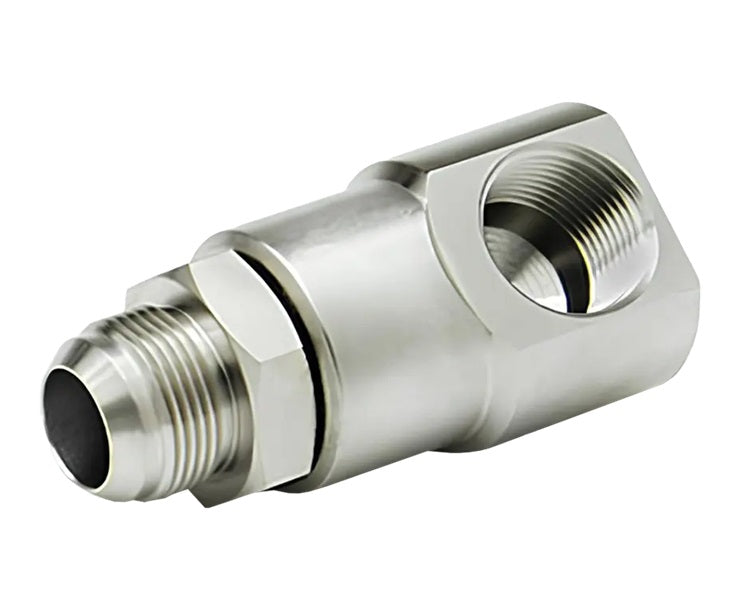

9SS20MJ20XFP125-Z-AL (5861-Z-AL) Super Swivel 90° 1-5/8-12 Male 37 deg. JIC x 1-1/4-11-1/2 Female Pipe NPTF - 1.078" Through Hole - Zinc - AFLAS Seal

  • $99.44
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

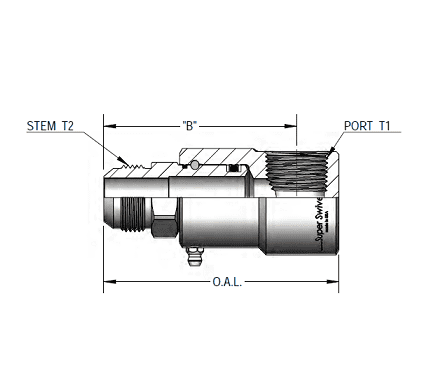

Part Number Material Seal Overall
Length
Dim.
B
Dim.
D Ø
Wrench/Hex Port T1 Stem T2 SWG.
Radius
Max
PSIG
Through
Hole
9SS4MJ4XFP25-Z-V Zinc Viton 2.570" 2.200" 1.192" 0.625" 1/4-18 NPTF 7/16-20 UN 0.525" 5000 PSIG 0.172"
9SS4MJ4XFP25-Z-AL Zinc AFLAS
9SS4MJ4XFP25-Z-PFA Zinc Teflon
9SS4MJ4XFP25-Ni-V Electroless Nickel Viton
9SS4MJ4XFP25-Ni-AL Electroless Nickel AFLAS
9SS4MJ4XFP25-Ni-PFA Electroless Nickel Teflon
9SS4MJ6XFP25-Z-V Zinc Viton 2.590" 2.220" 1.192" 0.625" 1/4-18 NPTF 9/16-18 UN 0.525" 5000 PSIG 0.250"
9SS4MJ6XFP25-Z-AL Zinc AFLAS
9SS4MJ6XFP25-Z-PFA Zinc Teflon
9SS4MJ6XFP25-Z-ETP Zinc Extreme Viton®
9SS4MJ6XFP25-Ni-V Electroless Nickel Viton
9SS4MJ6XFP25-Ni-AL Electroless Nickel AFLAS
9SS4MJ6XFP25-Ni-PFA Electroless Nickel Teflon
9SS4MJ6XFP25-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ8XFP38-Z-V Zinc Viton 3.080" 2.460" 2.530" 1.000" 3/8-18 NPTF 3/4-16 UN 0.651" 5000 PSIG 0.391"
9SS8MJ8XFP38-Z-AL Zinc AFLAS
9SS8MJ8XFP38-Z-PFA Zinc Teflon
9SS8MJ8XFP38-Z-ETP Zinc Extreme Viton®
9SS8MJ8XFP38-Ni-V Electroless Nickel Viton
9SS8MJ8XFP38-Ni-AL Electroless Nickel AFLAS
9SS8MJ8XFP38-Ni-PFA Electroless Nickel Teflon
9SS8MJ8XFP38-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ10XFP38-Z-V Zinc Viton 3.173" 2.560" 2.630" 1.000" 3/8-18 NPTF 7/8-14 UN 0.651" 5000 PSIG 0.484"
9SS8MJ10XFP38-Z-AL Zinc AFLAS
9SS8MJ10XFP38-Z-PFA Zinc Teflon
9SS8MJ10XFP38-Z-ETP Zinc Extreme Viton®
9SS8MJ10XFP38-Ni-V Electroless Nickel Viton
9SS8MJ10XFP38-Ni-AL Electroless Nickel AFLAS
9SS8MJ10XFP38-Ni-PFA Electroless Nickel Teflon
9SS8MJ10XFP38-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ8XFP50-Z-V Zinc Viton 3.070" 2.523" 1.495" 1.000" 1/2-14 NPTF 3/4-16 UN 0.581" 5000 PSIG 0.391"
9SS8MJ8XFP50-Z-AL Zinc AFLAS
9SS8MJ8XFP50-Z-PFA Zinc Teflon
9SS8MJ8XFP50-Z-ETP Zinc Extreme Viton®
9SS8MJ8XFP50-Ni-V Electroless Nickel Viton
9SS8MJ8XFP50-Ni-AL Electroless Nickel AFLAS
9SS8MJ8XFP50-Ni-PFA Electroless Nickel Teflon
9SS8MJ8XFP50-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ10XFP50-Z-V Zinc Viton 3.170" 2.623" 1.495" 1.000" 1/2-14 NPTF 7/8-14 UN 0.581" 5000 PSIG 0.484"
9SS8MJ10XFP50-Z-AL Zinc AFLAS
9SS8MJ10XFP50-Z-PFA Zinc Teflon
9SS8MJ10XFP50-Z-ETP Zinc Extreme Viton®
9SS8MJ10XFP50-Ni-V Electroless Nickel Viton
9SS8MJ10XFP50-Ni-AL Electroless Nickel AFLAS
9SS8MJ10XFP50-Ni-PFA Electroless Nickel Teflon
9SS8MJ10XFP50-Ni-ETP Electroless Nickel Extreme Viton®
9SS12MJ12XFP75-Z-V Zinc Viton 3.555" 2.890" 1.710" 1.125" 3/4-14 NPTF 1-1/16-12 UN 0.643" 4500 PSIG 0.609"
9SS12MJ12XFP75-Z-AL Zinc AFLAS
9SS12MJ12XFP75-Z-PFA Zinc Teflon
9SS12MJ12XFP75-Z-ETP Zinc Extreme Viton®
9SS12MJ12XFP75-Ni-V Electroless Nickel Viton
9SS12MJ12XFP75-Ni-AL Electroless Nickel AFLAS
9SS12MJ12XFP75-Ni-PFA Electroless Nickel Teflon
9SS12MJ12XFP75-Ni-ETP Electroless Nickel Extreme Viton®
9SS16MJ16XFP100-Z-V Zinc Viton 4.495" 3.687" 2.162" 1.375" 1-11-1/2 NPTF 1-1/16-12 UN 0.741" 4000 PSIG 0.827"
9SS16MJ16XFP100-Z-AL Zinc AFLAS
9SS16MJ16XFP100-Z-PFA Zinc Teflon
9SS16MJ16XFP100-Z-ETP Zinc Extreme Viton®
9SS16MJ16XFP100-Ni-V Electroless Nickel Viton
9SS16MJ16XFP100-Ni-AL Electroless Nickel AFLAS
9SS16MJ16XFP100-Ni-PFA Electroless Nickel Teflon
9SS16MJ16XFP100-Ni-ETP Electroless Nickel Extreme Viton®
9SS20MJ20XFP125-Z-V Zinc Viton 4.913" 3.945" 2.702" 1.750" 1-1/4-11-1/2 NPTF 1-5/8-12 UN 1.049" 4000 PSIG 1.078"
9SS20MJ20XFP125-Z-AL Zinc AFLAS
9SS20MJ20XFP125-Z-PFA Zinc Teflon
9SS20MJ20XFP125-Z-ETP Zinc Extreme Viton®
9SS20MJ20XFP125-Ni-V Electroless Nickel Viton
9SS20MJ20XFP125-Ni-AL Electroless Nickel AFLAS
9SS20MJ20XFP125-Ni-PFA Electroless Nickel Teflon
9SS20MJ20XFP125-Ni-ETP Electroless Nickel Extreme Viton®
9SS24MJ24XFP150-Ni-V Electroless Nickel Viton 6.275" 5.045" 2.917" 2.000" 1-1/2-11-1/2 NPTF 1-7/8-12 UN 1.072" 4000 PSIG 1.312"
9SS24MJ24XFP150-Ni-AL Electroless Nickel AFLAS
9SS24MJ24XFP150-Ni-PFA Electroless Nickel Teflon
9SS24MJ24XFP150-Ni-ETP Electroless Nickel Extreme Viton®
