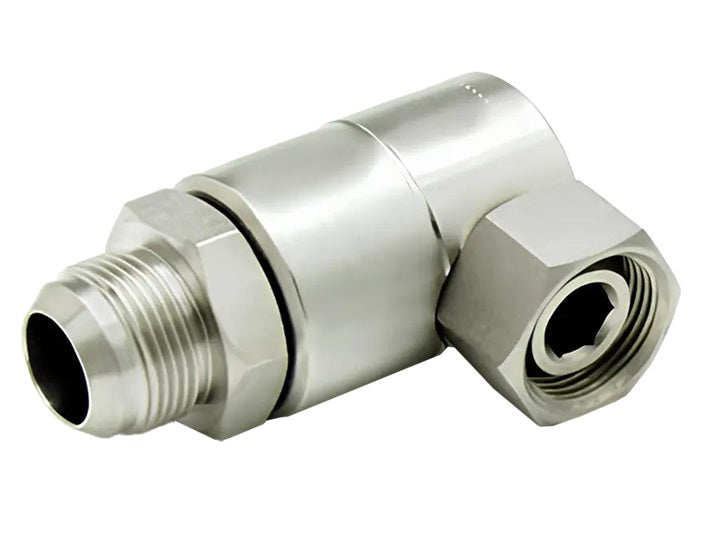

9SS20MJ20XPS125-Z-AL (6561-Z-AL) Super Swivel 90° 1-5/8-12 Male 37 deg. JIC x 1-1/4-11-1/2 Female Pipe Swivel NPSM - 0.906" Through Hole - Zinc - AFLAS Seal

  • $107.18
Features:
  • 90° Swivels rotating joints provide free rotation on one axis with a right-angle change of path.
  • They reduce the complexity of hose lines providing for minimal friction and allowing free movement of hoses and piping.
  • 90° Super Swivels allow for sharp corners with reduced risk of kinks and flow restriction and free rotation.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • Super Swivels connect directly to hose lines without adapters reducing overall costs of hydraulics.
  • No Kinks - No Hose Twisting.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
  • 304 Stainless Steel (304) is recommended for low pressure corrosive environments.
  • 440C Stainless Steel (440) is a martensitic, high carbon, magnetic stainless steel, heat-treated to maintain a high-pressure rating. Not as corrosion resistant as 300 Series Stainless Steel.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
  • (PFA) PFA Teflon® - High resistance to many individual chemicals where Teflon seals are required. (1,500 max psi) (-15 deg. F to 400 deg. F)
  • (ETP) Extreme Viton® - High resistance to many individual chemicals. (-6ºF to 437ºF)

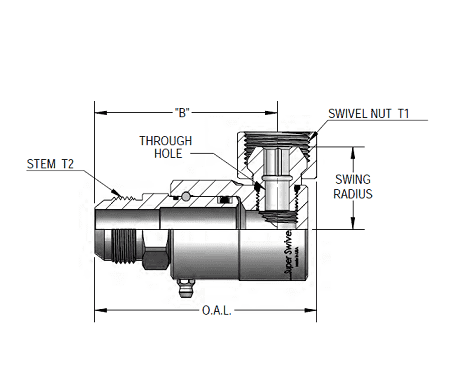

Part Number Material Seal Overall
Length
Dim.
B
Swivel
Hex
Wrench/Hex Swivel
Nut T1
Stem T2 SWG.
Radius
Max
PSIG
Through
Hole
9SS4MJ4XPS25-Z-V Zinc Viton 2.867" 2.355" 0.687" 0.625" 1/4-18 NPSM 7/16-20 UN 1.326" 3500 PSIG 0.172"
9SS4MJ4XPS25-Z-AL Zinc AFLAS
9SS4MJ4XPS25-Z-PFA Zinc Teflon
9SS4MJ4XPS25-Ni-V Electroless Nickel Viton
9SS4MJ4XPS25-Ni-AL Electroless Nickel AFLAS
9SS4MJ4XPS25-Ni-PFA Electroless Nickel Teflon
9SS4MJ6XPS25-Z-V Zinc Viton 2.887" 2.375" 0.687" 0.625" 1/4-18 NPSM 9/16-18 UN 1.326" 3500 PSIG 0.218"
9SS4MJ6XPS25-Z-AL Zinc AFLAS
9SS4MJ6XPS25-Z-PFA Zinc Teflon
9SS4MJ6XPS25-Z-ETP Zinc Extreme Viton®
9SS4MJ6XPS25-Ni-V Electroless Nickel Viton
9SS4MJ6XPS25-Ni-AL Electroless Nickel AFLAS
9SS4MJ6XPS25-Ni-PFA Electroless Nickel Teflon
9SS4MJ6XPS25-Ni-ETP Electroless Nickel Extreme Viton®
9SS4MJ6XPS38-Z-V Zinc Viton 2.887" 2.375" 0.875" 0.625" 3/8-18 NPSM 9/16-18 UN 1.555" 3500 PSIG 0.250"
9SS4MJ6XPS38-Z-AL Zinc AFLAS
9SS4MJ6XPS38-Z-PFA Zinc Teflon
9SS4MJ6XPS38-Z-ETP Zinc Extreme Viton®
9SS4MJ6XPS38-Ni-V Electroless Nickel Viton
9SS4MJ6XPS38-Ni-AL Electroless Nickel AFLAS
9SS4MJ6XPS38-Ni-PFA Electroless Nickel Teflon
9SS4MJ6XPS38-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ8XPS38-Z-V Zinc Viton 3.070" 2.523" 0.875" 1.000" 3/8-18 NPSM 3/4-16 UN 1.437" 3500 PSIG 0.327"
9SS8MJ8XPS38-Z-AL Zinc AFLAS
9SS8MJ8XPS38-Z-PFA Zinc Teflon
9SS8MJ8XPS38-Z-ETP Zinc Extreme Viton®
9SS8MJ8XPS38-Ni-V Electroless Nickel Viton
9SS8MJ8XPS38-Ni-AL Electroless Nickel AFLAS
9SS8MJ8XPS38-Ni-PFA Electroless Nickel Teflon
9SS8MJ8XPS38-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ8XPS50-Z-V Zinc Viton 3.100" 2.523" 1.000" 1.000" 1/2-14 NPSM 3/4-16 UN 1.521" 3500 PSIG 0.390"
9SS8MJ8XPS50-Z-AL Zinc AFLAS
9SS8MJ8XPS50-Z-PFA Zinc Teflon
9SS8MJ8XPS50-Z-ETP Zinc Extreme Viton®
9SS8MJ8XPS50-Ni-V Electroless Nickel Viton
9SS8MJ8XPS50-Ni-AL Electroless Nickel AFLAS
9SS8MJ8XPS50-Ni-PFA Electroless Nickel Teflon
9SS8MJ8XPS50-Ni-ETP Electroless Nickel Extreme Viton®
9SS8MJ10XPS50-Z-V Zinc Viton 3.200" 2.623" 1.000" 1.000" 1/2-14 NPSM 7/8-14 UN 1.521" 3500 PSIG 0.390"
9SS8MJ10XPS50-Z-AL Zinc AFLAS
9SS8MJ10XPS50-Z-PFA Zinc Teflon
9SS8MJ10XPS50-Z-ETP Zinc Extreme Viton®
9SS8MJ10XPS50-Ni-V Electroless Nickel Viton
9SS8MJ10XPS50-Ni-AL Electroless Nickel AFLAS
9SS8MJ10XPS50-Ni-PFA Electroless Nickel Teflon
9SS8MJ10XPS50-Ni-ETP Electroless Nickel Extreme Viton®
9SS12MJ12XPS75-Z-V Zinc Viton 3.606" 2.885" 1.250" 1.125" 3/4-14 NPSM 1-1/16-12 UN 1.664" 3500 PSIG 0.521"
9SS12MJ12XPS75-Z-AL Zinc AFLAS
9SS12MJ12XPS75-Z-PFA Zinc Teflon
9SS12MJ12XPS75-Z-ETP Zinc Extreme Viton®
9SS12MJ12XPS75-Ni-V Electroless Nickel Viton
9SS12MJ12XPS75-Ni-AL Electroless Nickel AFLAS
9SS12MJ12XPS75-Ni-PFA Electroless Nickel Teflon
9SS12MJ12XPS75-Ni-ETP Electroless Nickel Extreme Viton®
9SS16MJ16XPS100-Z-V Zinc Viton 4.348" 3.482" 1.500" 1.375" 1-11-1/2 NPSM 1-5/16-12 UN 1.956" 3500 PSIG 0.590"
9SS16MJ16XPS100-Z-AL Zinc AFLAS
9SS16MJ16XPS100-Z-PFA Zinc Teflon
9SS16MJ16XPS100-Z-ETP Zinc Extreme Viton®
9SS16MJ16XPS100-Ni-V Electroless Nickel Viton
9SS16MJ16XPS100-Ni-AL Electroless Nickel AFLAS
9SS16MJ16XPS100-Ni-PFA Electroless Nickel Teflon
9SS16MJ16XPS100-Ni-ETP Electroless Nickel Extreme Viton®
9SS20MJ20XPS125-Z-V Zinc Viton 4.917" 3.835" 1.875" 1.750" 1-1/4-11-1/2 NPSM 1-5/8-12 UN 2.570" 3500 PSIG 0.906"
9SS20MJ20XPS125-Z-AL Zinc AFLAS
9SS20MJ20XPS125-Z-PFA Zinc Teflon
9SS20MJ20XPS125-Z-ETP Zinc Extreme Viton®
9SS20MJ20XPS125-Ni-V Electroless Nickel Viton
9SS20MJ20XPS125-Ni-AL Electroless Nickel AFLAS
9SS20MJ20XPS125-Ni-PFA Electroless Nickel Teflon
9SS20MJ20XPS125-Ni-ETP Electroless Nickel Extreme Viton®
9SS24MJ24XPS150-Ni-V Electroless Nickel Viton 5.930" 4.710" 2.125" 2.000" 1-1/2-11-1/2 NPSM 1-7/8-12 UN 2.630" 3500 PSIG 1.040"
9SS24MJ24XPS150-Ni-AL Electroless Nickel AFLAS
9SS24MJ24XPS150-Ni-PFA Electroless Nickel Teflon
9SS24MJ24XPS150-Ni-ETP Electroless Nickel Extreme Viton®
