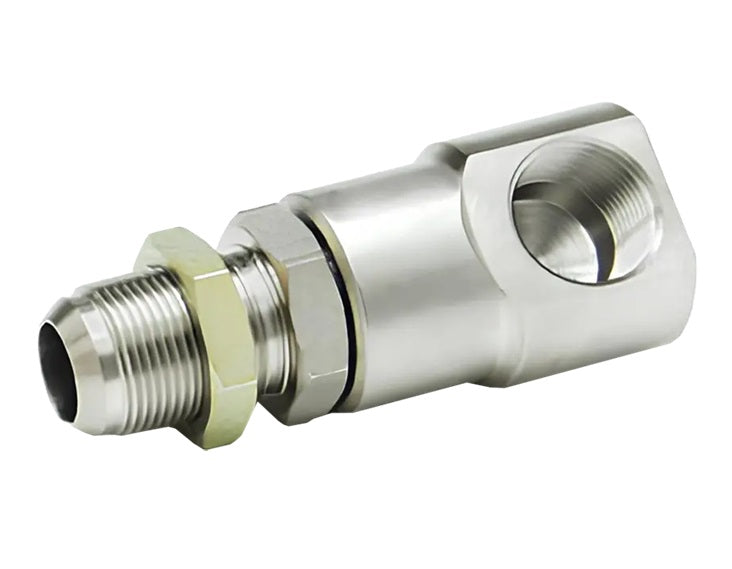

Continue Shopping9SS20MJB20XFP125-Ni-AL (6164-Ni-AL) Super Swivel 90° 1-5/8-12 Male 37 deg. JIC Bulkhead x 1-1/4-11-1/2 Female Pipe NPTF - 1.073" Through Hole - Electroless Nickel - AFLAS Seal
- $125.84
| Features: | |||
|---|---|---|---|
|
|||
| Notes: | |||
|
|||
| Base Material and Plating: | |||
|
|||
| Seal Material: | |||
|
 |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Seal | Overall Length |
Dim. B |
Dim. D Ø |
Wrench/Hex | Port T1 | Stem T2 | SWG. Radius |
Max PSIG |
Through Hole |
| 9SS4MJB6XFP25-Z-V | Zinc | Viton | 3.230" | 2.860" | 1.190" | .812" | 1/4-18 NPTF | 9/16-18 UN | 0.530" | 5000 PSIG | 0.250" |
| 9SS4MJB6XFP25-Z-AL | Zinc | AFLAS | |||||||||
| 9SS4MJB6XFP25-Z-PFA | Zinc | Teflon | |||||||||
| 9SS4MJB6XFP25-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS4MJB6XFP25-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS4MJB6XFP25-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB8XFP38-Z-V | Zinc | Viton | 3.810" | 3.260" | 1.495" | 1.000" | 3/8-18 NPTF | 3/4-16 UN | 0.651" | 5000 PSIG | 0.406" |
| 9SS8MJB8XFP38-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB8XFP38-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB8XFP38-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB8XFP38-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB8XFP38-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB8XFP38-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB8XFP38-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS8MJB8XFP50-Z-V | Zinc | Viton | 3.805" | 3.258" | 1.495" | 1.000" | 1/2-14 NPTF | 3/4-16 UN | 0.581" | 5000 PSIG | 0.406" |
| 9SS8MJB8XFP50-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB8XFP50-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB8XFP50-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB8XFP50-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB8XFP50-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB8XFP50-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB8XFP50-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS8MJB10XFP38-Z-V | Zinc | Viton | 4.025" | 3.478" | 1.495" | 1.125" | 3/8-18 NPTF | 7/8-14 UN | 0.650" | 5000 PSIG | 0.484" |
| 9SS8MJB10XFP38-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB10XFP38-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB10XFP38-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB10XFP38-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB10XFP38-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB10XFP38-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB10XFP38-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS8MJB10XFP50-Z-V | Zinc | Viton | 4.025" | 3.478" | 1.495" | 1.125" | 1/2-14 NPTF | 7/8-14 UN | 0.581" | 5000 PSIG | 0.484" |
| 9SS8MJB10XFP50-Z-AL | Zinc | AFLAS | |||||||||
| 9SS8MJB10XFP50-Z-PFA | Zinc | Teflon | |||||||||
| 9SS8MJB10XFP50-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS8MJB10XFP50-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS8MJB10XFP50-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS8MJB10XFP50-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS8MJB10XFP50-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS12MJB12XFP75-Z-V | Zinc | Viton | 4.475" | 3.810" | 1.710" | 1.375" | 3/4-14 NPTF | 1-1/16-12 UN | 0.643" | 4500 PSIG | 0.609" |
| 9SS12MJB12XFP75-Z-AL | Zinc | AFLAS | |||||||||
| 9SS12MJB12XFP75-Z-PFA | Zinc | Teflon | |||||||||
| 9SS12MJB12XFP75-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS12MJB12XFP75-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS12MJB12XFP75-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS12MJB12XFP75-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS12MJB12XFP75-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS16MJB16XFP100-Z-V | Zinc | Viton | 5.330" | 4.522" | 2.162" | 1.625" | 1-11-1/2 NPTF | 1-5/16-12 UN | 0.741" | 4000 PSIG | 0.827" |
| 9SS16MJB16XFP100-Z-AL | Zinc | AFLAS | |||||||||
| 9SS16MJB16XFP100-Z-PFA | Zinc | Teflon | |||||||||
| 9SS16MJB16XFP100-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS16MJB16XFP100-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS16MJB16XFP100-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS16MJB16XFP100-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS16MJB16XFP100-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
| 9SS20MJB20XFP125-Z-V | Zinc | Viton | 5.808" | 4.840" | 2.702" | 1.875" | 1-1/4-11-1/2 NPTF | 1-5/8-12 UN | 1.049" | 4000 PSIG | 1.073" |
| 9SS20MJB20XFP125-Z-AL | Zinc | AFLAS | |||||||||
| 9SS20MJB20XFP125-Z-PFA | Zinc | Teflon | |||||||||
| 9SS20MJB20XFP125-Z-ETP | Zinc | Extreme Viton® | |||||||||
| 9SS20MJB20XFP125-Ni-V | Electroless Nickel | Viton | |||||||||
| 9SS20MJB20XFP125-Ni-AL | Electroless Nickel | AFLAS | |||||||||
| 9SS20MJB20XFP125-Ni-PFA | Electroless Nickel | Teflon | |||||||||
| 9SS20MJB20XFP125-Ni-ETP | Electroless Nickel | Extreme Viton® | |||||||||
