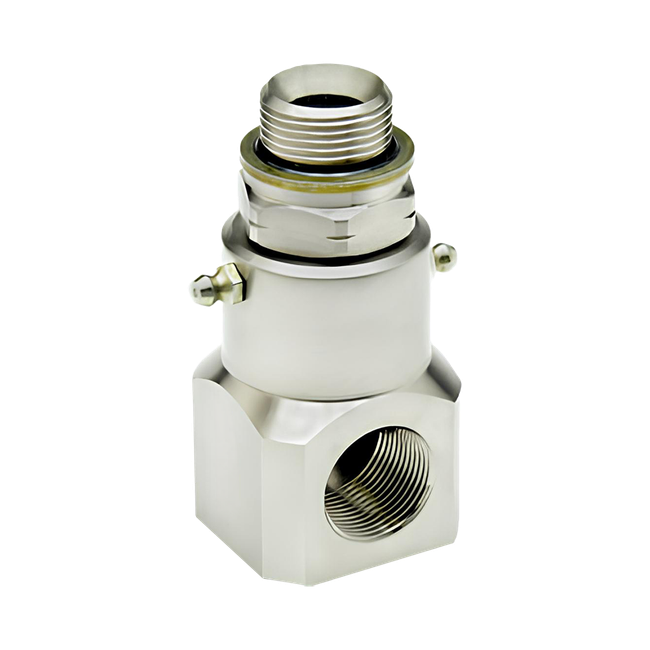

9SS6MBSPP6XFBSPP6-Z-ETP by Super Swivel | #40202 | G 3/8-19 Male BSPP x G 3/8-19 Female BSPP | 0.312" Through Hole | 90° Elbow | Zinc | Viton Extreme Seal

9SS6MBSPP6XFBSPP6-Z-ETP by Super Swivel | #40202 | G 3/8-19 Male BSPP x G 3/8-19 Female BSPP | 0.312" Through Hole | 90° Elbow | Zinc | Viton Extreme Seal

Save $9.13 Save $9.13
$82.17
$82.17 - $82.17
$82.17
$73.04
$73.04 - $73.04
$73.04

Super Swivels
BSPP 90° Swivels - Male BSPP X Female BSPP
Specifications for Variant SKU: 9SS6MBSPP6XFBSPP6-Z-ETP Super Swivels #40202
Shape (Orientation): 90 Degree
Ends Configuration: 3/8in Male BSPP, 3/8in Female BSPP
Seal Material(s): Viton Extreme
Features:
  • BSPP Swivels (British Standard Parallel Pipe) are most common in the UK, Europe, Asia, Australia, New Zealand and South Africa.
  • A parallel thread fitting uses a bonded seal ring.
  • This bonded ring seal is sandwiched in-between a shoulder on the male fitting and the face of the female fitting and is squeezed in place with no thread sealant required.
  • Super Swivels ball bearing race design withstands heavy side loads preventing premature seal wear and leaks.
  • BSPP sizes range from 1/4" through 11/2" body thread with multiple fittings and seal configurations including Inline and 90° Swivels.
Notes:
  • Super Swivels are not recommended for breathing air/oxygen or steam.
  • All swivels have 4 to 1 proof pressure, except 10,000 PSI = 3 to 1 proof pressure.
  • Any series stem will fit with the same series body.
Base Material and Plating:
  • Super Swivels are manufactured from Carbon Steel or 304 and 440C Stainless Steel
  • Carbon Steel Zinc (Z) Plating is recommended for non-corrosive applications, i.e. hydraulic, pneumatic, etc.
  • Carbon Steel Nickel (NI) Plating is recommended for mildly corrosive environments, i.e. water, mild chemicals, solvents, etc.
Seal Material:
  • (V) Viton® (Fluorocarbon) - For most petroleum based applications. (-15 deg. F to 250 deg. F)
  • (AL) Aflas® (Tetrafluoroethylene-propylene copolymer) - Better resistance to many individual chemicals. For service in high temperature environments. (Low temperature limitations.) (+32 deg. F to 400 deg. F)
Part Number Material Seal Overall
Length		 Dim.
B		 Dim.
D Ø		 Dim.
E		 Wrench
Hex		 Port T1 Stem T2 Dim.
F		 Max
Pressure		 Through
Hole
9SS4MBSPP4XFBSPP4-Z-V Zinc Viton 2.810"
71.4mm		 2.350"
59.7mm		 1.318"
33.5mm		 1.858"
47.2mm		 0.812"
20.6mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.519"
13.2mm		 5,000 PSI
345 BAR		 0.250"
6.3mm
9SS4MBSPP4XFBSPP4-Z-AL Zinc AFLAS
9SS4MBSPP4XFBSPP4-Z-ETP Zinc Viton Extreme
9SS4MBSPP4XFBSPP4-NI-V Electroless Nickel Viton 2.810"
71.4mm		 2.350"
59.7mm		 1.318"
33.5mm		 1.858"
47.2mm		 0.812"
20.6mm		 G 1/4-19 BSPP G 1/4-19 BSPP 0.519"
13.2mm		 5,000 PSI
345 BAR		 0.250"
6.3mm
9SS4MBSPP4XFBSPP4-NI-AL Electroless Nickel AFLAS
9SS4MBSPP4XFBSPP4-NI-ETP Electroless Nickel Viton Extreme
9SS6MBSPP6XFBSPP6-Z-V Zinc Viton 2.947"
74.9mm		 2.367"
60.1mm		 1.450"
36.8mm		 1.992"
50.6mm		 0.937"
23.8mm		 G 3/8-19 BSPP G 3/8-19 BSPP 0.552"
14.0mm		 5,000 PSI
345 BAR		 0.312"
7.9mm
9SS6MBSPP6XFBSPP6-Z-AL Zinc AFLAS
9SS6MBSPP6XFBSPP6-Z-ETP Zinc Viton Extreme
9SS6MBSPP6XFBSPP6-NI-V Electroless Nickel Viton 2.947"
74.9mm		 2.367"
60.1mm		 1.450"
36.8mm		 1.992"
50.6mm		 0.937"
23.8mm		 G 3/8-19 BSPP G 3/8-19 BSPP 0.552"
14.0mm		 5,000 PSI
345 BAR		 0.312"
7.9mm
9SS6MBSPP6XFBSPP6-NI-AL Electroless Nickel AFLAS
9SS6MBSPP6XFBSPP6-NI-ETP Electroless Nickel Viton Extreme
9SS8DBMBSPP8XFBSPP8-Z-V Zinc Viton 3.412"
86.7mm		 2.781"
70.6mm		 1.724"
43.8mm		 2.170"
55.1mm		 1.125"
28.6mm		 G 1/2-14 BSPP G 1/2-14 BSPP 0.653"
16.6mm		 5,000 PSI
345 BAR		 0.406"
10.3mm
9SS8DBMBSPP8XFBSPP8-Z-AL Zinc AFLAS
9SS8DBMBSPP8XFBSPP8-Z-ETP Zinc Viton Extreme
9SS8DBMBSPP8XFBSPP8-NI-V Electroless Nickel Viton 3.412"
86.7mm		 2.781"
70.6mm		 1.724"
43.8mm		 2.170"
55.1mm		 1.125"
28.6mm		 G 1/2-14 BSPP G 1/2-14 BSPP 0.653"
16.6mm		 5,000 PSI
345 BAR		 0.406"
10.3mm
9SS8DBMBSPP8XFBSPP8-NI-AL Electroless Nickel AFLAS
9SS8DBMBSPP8XFBSPP8-NI-ETP Electroless Nickel Viton Extreme
9SS12DBMBSPP12XFBSPP12-Z-V Zinc Viton 3.922"
99.6mm		 3.142"
79.8mm		 2.184"
55.5mm		 2.370"
66.3mm		 1.312"
33.3mm		 G 3/4-14 BSPP G 3/4-14 BSPP 0.849"
21.6mm		 5000 PSI
345 BAR		 0.630"
16.0mm
9SS12DBMBSPP12XFBSPP12-Z-AL Zinc AFLAS
9SS12DBMBSPP12XFBSPP12-Z-ETP Zinc Viton Extreme
9SS12DBMBSPP12XFBSPP12-NI-V Electroless Nickel Viton 3.922"
99.6mm		 3.142"
79.8mm		 2.184"
55.5mm		 2.370"
66.3mm		 1.312"
33.3mm		 G 3/4-14 BSPP G 3/4-14 BSPP 0.849"
21.6mm		 5000 PSI
345 BAR		 0.630"
16.0mm
9SS12DBMBSPP12XFBSPP12-NI-AL Electroless Nickel AFLAS
9SS12DBMBSPP12XFBSPP12-NI-ETP Electroless Nickel Viton Extreme
9SS16DBMBSPP16XFBSPP16-Z-V Zinc Viton 4.648"
118.1mm		 3.733"
94.8mm		 2.588"
65.7mm		 2.610"
66.3mm		 1.625"
41.3mm		 G 1-11 BSPP G 1-11 BSPP 0.982"
24.9mm		 4,500 PSI
310 BAR		 0.787"
20.0mm
9SS16DBMBSPP16XFBSPP16-Z-AL Zinc AFLAS
9SS16DBMBSPP16XFBSPP16-Z-ETP Zinc Viton Extreme
9SS16DBMBSPP16XFBSPP16-NI-V Electroless Nickel Viton 4.648"
118.1mm		 3.733"
94.8mm		 2.588"
65.7mm		 2.610"
66.3mm		 1.625"
41.3mm		 G 1-11 BSPP G 1-11 BSPP 0.982"
24.9mm		 4,500 PSI
310 BAR		 0.787"
20.0mm
9SS16DBMBSPP16XFBSPP16-NI-AL Electroless Nickel AFLAS
9SS16DBMBSPP16XFBSPP16-NI-ETP Electroless Nickel Viton Extreme
9SS20MBSPP20XFBSPP20-Z-V Zinc Viton 5.115"
129.9mm		 4.015"
102.0mm		 3.088"
78.4mm		 3.050"
77.5mm		 2.000"
50.8mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 1.149"
29.2mm		 4,000 PSI
275 BAR		 0.984"
25.0mm
9SS20MBSPP20XFBSPP20-Z-AL Zinc AFLAS
9SS20MBSPP20XFBSPP20-Z-ETP Zinc Viton Extreme
9SS20MBSPP20XFBSPP20-NI-V Electroless Nickel Viton 5.115"
129.9mm		 4.015"
102.0mm		 3.088"
78.4mm		 3.050"
77.5mm		 2.000"
50.8mm		 G 1-1/4-11 BSPP G 1-1/4-11 BSPP 1.149"
29.2mm		 4,000 PSI
275 BAR		 0.984"
25.0mm
9SS20MBSPP20XFBSPP20-NI-AL Electroless Nickel AFLAS
9SS20MBSPP20XFBSPP20-NI-ETP Electroless Nickel Viton Extreme
9SS24MBSPP24XFBSPP24-NI-ETP Electroless Nickel Viton Extreme 6.385"
162.2mm		 5.115"
129.9mm		 3.576"
90.8mm		 3.240"
82.3mm		 2.250"
57.1mm		 G 1-1/2-11 BSPP G 1-1/2-11 BSPP 1.366"
34.7mm		 4,000 PSI
275 BAR		 1.260"
32.0mm
Super Swivels

Super Swivels

Super Swivels® was established in 1986 and is a leader in the design and manufacture of hydraulic live swivels. Super Swivels are used in a wide variety of applications, i.e. hose reels, hydraulic log loaders, paint equipment, automatic car washes, wrecker trucks, horizontal directional drilling, machine tool indexers, hydraulic wheel motors, hot tar applicators, robotics, power line equipment, railroad equipment, and mining equipment, to mention a few.
