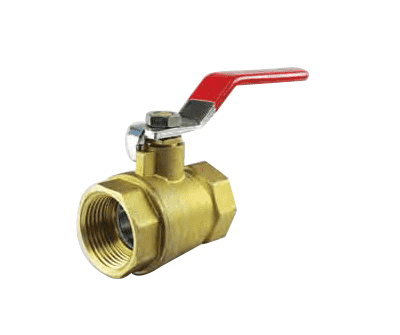

BV025BF by Jason Industrial | Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass

BV025BF by Jason Industrial | Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass

Save $2.44 Save $2.44
$8.53
$8.53 - $8.53
$8.53
$6.09
$6.09 - $6.09
$6.09

Jason Industrial Inc. Couplings & Accessories - Accessories - Brass Ball Valves - Female NPT x Female NPT
Specifications for Variant SKU: BV025BF Jason
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Features:
  • Sizes to 2" rated 600 WOG
  • 2-1/2", 3" and 4" rated 400 WOG
  • Brass ball is chromium plated
  • Ball seat is Teflon®
Ball Valve Components:
  • Valve Body: Brass
  • Valve Cap: Brass
  • O-Ring: PTFE
  • Ball: Brass, chrome-plated
  • Stem Spacer/Gasket: PTFE
  • Stem: Brass
  • Nut: Brass
  • Cap: Brass
  • Handle: Carbon Steel
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Femlae NPT Thread
in. mm
BV025BF 1/4" 6.4" 1/4" NPT
BV038BF 3/8" 9.9" 3/8" NPT
BV050BF 1/2" 14.0" 1/2" NPT
BV075BF 3/4" 19.0" 3/4" NPT
BV100BF 1" 24.0" 1" NPT
BV125BF 1-1/4" 31.0" 1-1/4" NPT
BV150BF 1-1/2" 38.0" 1-1/2" NPT
BV200BF 2" 49.0" 2" NPT
BV250BF 2-1/2" 64.0" 2-1/2" NPT
BV300BF 3" 79.0" 3" NPT
BV400BF 4" 99.0" 4" NPT
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
