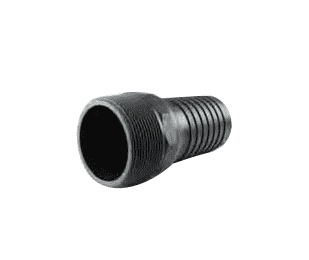

CN100PP by Jason Industrial | Combination Hose Nipple | 1" Hose ID | Male NPT x Hose Shank | Black | Polypropylene

CN100PP by Jason Industrial | Combination Hose Nipple | 1" Hose ID | Male NPT x Hose Shank | Black | Polypropylene

Save $0.01 Save $0.01
$1.20
$1.20 - $1.20
$1.20
$1.19
$1.19 - $1.19
$1.19

Jason Industrial Inc. Couplings & Accessories - Nipples & Accessories - Combination Hose Nipples
Specifications for Variant SKU: CN100PP Jason
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1in Hose Barb
Material(s): Polypropylene
Overview:
  • CN's are used in a variety of fluid applications. They are available in unplated steel, plated steel, polypropylene, Victaulic-type and 304 stainless steel. End (male) threads are NPT (will mate with foot valves, strainers, cam and groove part A, D etc.) and are the same size as shank. Not for use with crimp ferrule.
Features:
  • Polypropylene is Black Schedule 80.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Hose ID Unplated Steel Part Number Plated Steel Part Number 304 Stainless Steel Part Number Polypropylene Part Number Victaulic-Type Part Number
1/2" CN050 CN050P CN050S CN050PP CN050V
3/4" CN075 CN075P CN075S CN075PP CN075V
1" CN100 CN100P CN100S CN100PP CN100V
1-1/4" CN125 CN125P CN125S CN125PP CN125V
1-1/2" CN150 CN150P CN150S CN150PP CN150V
2" CN200 CN200P CN200S CN200PP CN200V
2-1/2" CN250 CN250P CN250S CN250PP CN250V
3" CN300 CN300P CN300S CN300PP CN300V
4" CN400 CN400P CN400S CN400PP CN400V
5" CN500 CN500P CN500S --- CN500V
6" CN600 CN600P CN600S --- CN600V
8" CN800 CN800P --- --- CN800V
10" CN1000 CN1000P --- --- CN1000V
12" CN1200 CN1200P --- --- ---
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
