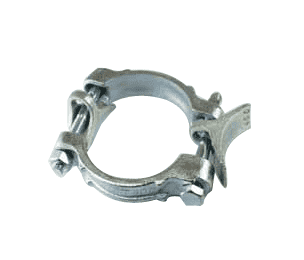

DB094 by Jason Industrial | Double Bolt Hose Clamp | Hose OD Range: 3-1/2" to 3-11/16" | Malleable Iron

DB094 by Jason Industrial | Double Bolt Hose Clamp | Hose OD Range: 3-1/2" to 3-11/16" | Malleable Iron

Save $0.10 Save $0.10
$10.21
$10.21 - $10.21
$10.21
$10.11
$10.11 - $10.11
$10.11

Jason Industrial Inc. Couplings & Accessories - Double Bolt Hose Clamps
Specifications for Variant SKU: DB094 Jason
Material(s): Malleable Iron
Minimum Clamp I.D.: 3.5
Maximum Clamp I.D.: 3.6875
Overview:
  • Reusable, these clamps provide an efficient means of securing couplings for low pressure discharge or suction service. Double bolt hose clamps are sized for hose OD's from 1-5/8" through 17-1/2". As the bolts are tightened, the double-tongue saddles fill the gap between the bolt lugs preventing pinching of the hose OD. Fully tightened, the double bolt clamps secure the full circumference of the hose. Plated malleable iron.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Hose OD Range Torque
From To
DB049 1-5/8" 1-15/16" 20 lbs./ft
DB060 1-7/8" 2-3/8" 20 lbs./ft
DB076 2-3/8" 3-7/16" 20 lbs./ft
DB094 3-1/2" 3-11/16" 40 lbs./ft
DB400 3-1/2" 4" 40 lbs./ft
DB463 4-1/16" 4-7/16" 40 lbs./ft
DB525 4-3/16" 5" 60 lbs./ft
DB550 5" 5-1/2" 60 lbs./ft
DB600 5-1/2" 6-1/16" 60 lbs./ft
DB675 6-1/8" 6-7/8" 60 lbs./ft
DB769 6-15/16" 7-5/8" 60 lbs./ft
DB818 7-11/16" 8-3/16" 125 lbs./ft
DB875 8-1/4" 8-7/8" 125 lbs./ft
DB988 8-15/16" 9-7/8" 125 lbs./ft
DB1125 9-15/16" 11-3/8" 125 lbs./ft
DB1275 11-3/16" 13" 125 lbs./ft
DB1360 12-3/16" 14" 200 lbs./ft
DB1450 13-3/16" 15" 200 lbs./ft
DB1700 15-1/16" 17-1/2" 260 lbs./ft
Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
Jason Industrial

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
