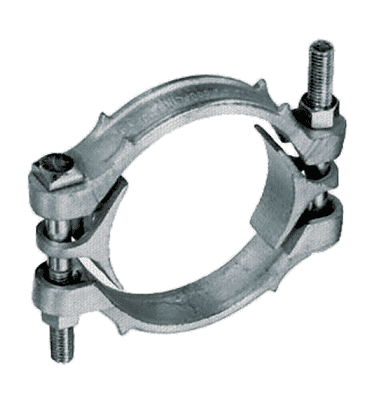

DB40 Kuriyama Zinc Plated Ductile Iron Double Bolt Hose Clamp - Size Range: 1-5/16" - 1-19/32" - Torque: 20 ft. lbs.

DB40 by Kuriyama | Double Bolt Hose Clamp | Finish: Zinc Plated | Size Range: 1-5/16" - 1-19/32" | Torque: 20 ft. lbs. | Ductile Iron

Save $0.72 Save $0.72
$3.79
$3.79 - $3.79
$3.79
$3.07
$3.07 - $3.07
$3.07

Kuriyama Couplings™ - Double Bolt Hose Clamp - Zinc Plated Ductile Iron

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DB40 Kuriyama
Material(s): Zink-Plated Ductile Iron
Minimum Clamp I.D.: 1.3125
Maximum Clamp I.D.: 1.59375
Applications:
  • Agriculture, Construction, Material Handling
  • For use with Kuriyama Hoses
Features:
  • N/A
Materials:
  • Zinc Plated Ductile Iron
Part Number Size Range (in.) Torque (ft. lbs.) Weight (Lbs.)
DB29 7/8" - 1 9/64" 20ft 0.29 lbs
DB34 1-5/32" - 1-11/32" 20ft 0.31 lbs
DB40 1-5/16" - 1-19/32" 20ft 0.43 lbs
DB49 1-5/8" - 1-15/16" 20ft 0.56 lbs
DB60 1-7/8" - 2-3/8" 20ft 0.64 lbs
DB76 2-3/8" - 3-1/64" 40ft 0.73 lbs
DB94 3-1/32" - 3-11/16" 40ft 1.30 lbs
DB400 3-1/2 - 4" 40ft" 1.54 lbs
DB463 4-1/16" - 4-7/16" 40ft 1.79 lbs
DB525 4-3/16" - 5" 60ft" 2.14 lbs
DB550 5" - 5-1/2" 60ft 2.27 lbs
DB600 5-1/2 - 6-1/16" 60ft 2.65 lbs
DB675 6-1/8" - 6-7/8" 60ft 2.98 lbs
DB769 6-15/16 - 7-5/8" 60ft 3.81 lbs
DB818 7-11/16" - 8-3/16" 125ft 5.11 lbs
DB875 8-1/4" - 8-7/8" 125ft 5.64 lbs
DB988 8-15/16" - 9-7/8" 125ft 6.15 lbs
DB1125 9-15/16" - 11-3/8" 125ft 9.48 lbs
DB1275 11-3/16" - 12-1/2" 125ft 9.61 lbs
DB1360 12-3/16" - 14" 200ft 15.43 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
