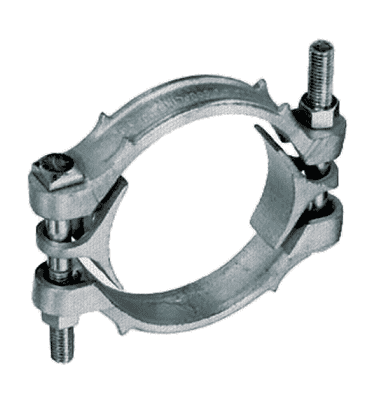

DB550 Kuriyama Zinc Plated Ductile Iron Double Bolt Hose Clamp - Size Range: 5" - 5-1/2" - Torque: 60 ft. lbs.

DB550 by Kuriyama | Double Bolt Hose Clamp | Finish: Zinc Plated | Size Range: 5" - 5-1/2" | Torque: 60 ft. lbs. | Ductile Iron

Save $2.61

$13.73

$13.73 - $13.73

$13.73

$11.12

$11.12 - $11.12

$11.12

Kuriyama Couplings™ - Double Bolt Hose Clamp - Zinc Plated Ductile Iron

Quantity

Specifications for Variant SKU: DB550 Kuriyama
Material(s):	Zink-Plated Ductile Iron
Minimum Clamp I.D.:	5
Maximum Clamp I.D.:	5.5

Applications:
Agriculture, Construction, Material Handling For use with Kuriyama Hoses
Features:
N/A
Materials:
Zinc Plated Ductile Iron

Part Number	Size Range (in.)	Torque (ft. lbs.)	Weight (Lbs.)
DB29	7/8" - 1 9/64"	20ft	0.29 lbs
DB34	1-5/32" - 1-11/32"	20ft	0.31 lbs
DB40	1-5/16" - 1-19/32"	20ft	0.43 lbs
DB49	1-5/8" - 1-15/16"	20ft	0.56 lbs
DB60	1-7/8" - 2-3/8"	20ft	0.64 lbs
DB76	2-3/8" - 3-1/64"	40ft	0.73 lbs
DB94	3-1/32" - 3-11/16"	40ft	1.30 lbs
DB400	3-1/2 - 4"	40ft"	1.54 lbs
DB463	4-1/16" - 4-7/16"	40ft	1.79 lbs
DB525	4-3/16" - 5"	60ft"	2.14 lbs
DB550	5" - 5-1/2"	60ft	2.27 lbs
DB600	5-1/2 - 6-1/16"	60ft	2.65 lbs
DB675	6-1/8" - 6-7/8"	60ft	2.98 lbs
DB769	6-15/16 - 7-5/8"	60ft	3.81 lbs
DB818	7-11/16" - 8-3/16"	125ft	5.11 lbs
DB875	8-1/4" - 8-7/8"	125ft	5.64 lbs
DB988	8-15/16" - 9-7/8"	125ft	6.15 lbs
DB1125	9-15/16" - 11-3/8"	125ft	9.48 lbs
DB1275	11-3/16" - 12-1/2"	125ft	9.61 lbs
DB1360	12-3/16" - 14"	200ft	15.43 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
