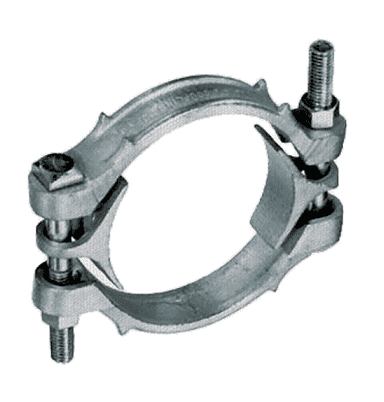

DB988 Kuriyama Zinc Plated Ductile Iron Double Bolt Hose Clamp - Size Range: 8-15/16" - 9-7/8" - Torque: 125 ft. lbs.

DB988 by Kuriyama | Double Bolt Hose Clamp | Finish: Zinc Plated | Size Range: 8-15/16" - 9-7/8" | Torque: 125 ft. lbs. | Ductile Iron

Save $12.35 Save $12.35
$43.23
$43.23 - $43.23
$43.23
$30.88
$30.88 - $30.88
$30.88

Kuriyama Couplings™ - Double Bolt Hose Clamp - Zinc Plated Ductile Iron

Specifications for Variant SKU: DB988 Kuriyama
Material(s): Zink-Plated Ductile Iron
Minimum Clamp I.D.: 8.9375
Maximum Clamp I.D.: 9.875
Applications:
  • Agriculture, Construction, Material Handling
  • For use with Kuriyama Hoses
Features:
  • N/A
Materials:
  • Zinc Plated Ductile Iron
Part Number Size Range (in.) Torque (ft. lbs.) Weight (Lbs.)
DB29 7/8" - 1 9/64" 20ft 0.29 lbs
DB34 1-5/32" - 1-11/32" 20ft 0.31 lbs
DB40 1-5/16" - 1-19/32" 20ft 0.43 lbs
DB49 1-5/8" - 1-15/16" 20ft 0.56 lbs
DB60 1-7/8" - 2-3/8" 20ft 0.64 lbs
DB76 2-3/8" - 3-1/64" 40ft 0.73 lbs
DB94 3-1/32" - 3-11/16" 40ft 1.30 lbs
DB400 3-1/2 - 4" 40ft" 1.54 lbs
DB463 4-1/16" - 4-7/16" 40ft 1.79 lbs
DB525 4-3/16" - 5" 60ft" 2.14 lbs
DB550 5" - 5-1/2" 60ft 2.27 lbs
DB600 5-1/2 - 6-1/16" 60ft 2.65 lbs
DB675 6-1/8" - 6-7/8" 60ft 2.98 lbs
DB769 6-15/16 - 7-5/8" 60ft 3.81 lbs
DB818 7-11/16" - 8-3/16" 125ft 5.11 lbs
DB875 8-1/4" - 8-7/8" 125ft 5.64 lbs
DB988 8-15/16" - 9-7/8" 125ft 6.15 lbs
DB1125 9-15/16" - 11-3/8" 125ft 9.48 lbs
DB1275 11-3/16" - 12-1/2" 125ft 9.61 lbs
DB1360 12-3/16" - 14" 200ft 15.43 lbs
