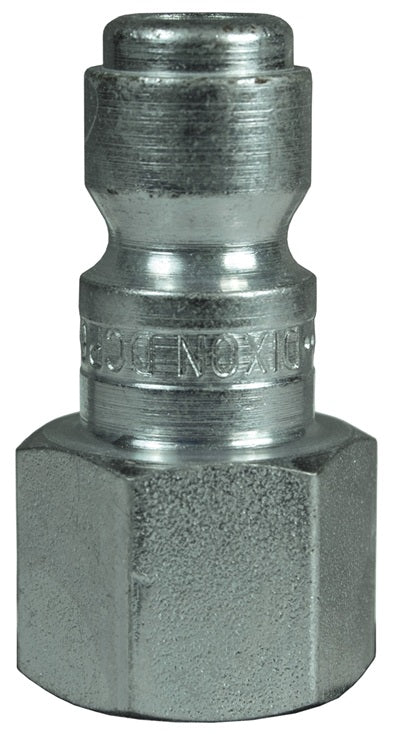

DCP624 Air Chief by Dixon Valve | Pneumatic Automotive Interchange Plug | Semi-Automatic | 1/2" Female NPT x 3/8" Body Size | Steel

Save $1.06 Save $1.06
Original price $6.67
Original price $6.67 - Original price $6.67
Original price $6.67
Current price $5.61
$5.61 - $5.61
Current price $5.61

Air Chief Automotive Interchange Quick-Connect Plugs Air Chief automotive quick-connect plugs will interchange with the popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton and Truflate. There are some makes however, which do not interchange with any others. If you plan to interchange these couplings, make sure you have plug ends with the proper configuration. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: DCP624 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Male Tru-Flate QD Interchange, 1/2in Female NPT
Material(s): Steel
Compatibility & Interchange:
  • Interchange with popular makes of automotive quick-connect fittings such as Amflo, Dill, Milton, and Tru-Flate, some designs do not interchange with others.
  • If you plan to interchange these couplings, make sure you have plug ends with the proper configuration.
Specifications:
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Pneumatic Automotive Interchange Plug | Semi-Automatic | Female NPT
Part Number Coupling Type Material Body Size Female NPT Flow Rating
at 100 PSI
DCP221 Plug/Male Steel 1/4" 1/8" Female NPT 37 CFM
DCP2 Plug/Male Steel 1/4" 1/4" Female NPT 37 CFM
DCP223 Plug/Male Steel 1/4" 3/8" Female NPT 37 CFM
DCP8 Plug/Male Steel 3/8" 1/4" Female NPT 70 CFM
DCP6 Plug/Male Steel 3/8" 3/8" Female NPT 70 CFM
DCP624 Plug/Male Steel 3/8" 1/2" Female NPT 70 CFM
Pneumatic Automotive Interchange Coupler/Socket | Semi-Automatic | Female NPT
Brass
Part Number
Steel
Part Number
Coupling Type Body Size Female NPT Flow Rating
at 100 PSI
DC221 Socket/Female Brass 1/4" 1/8" 37 CFM
DC2 Socket/Female Brass 1/4" 1/4" 37 CFM
DC223 Socket/Female Brass 1/4" 3/8" 37 CFM
DC8 Socket/Female Steel 3/8" 1/4" 70 CFM
DC6 Socket/Female Steel 3/8" 3/8" 70 CFM
DC624 Socket/Female Steel 3/8" 1/2" 70 CFM
