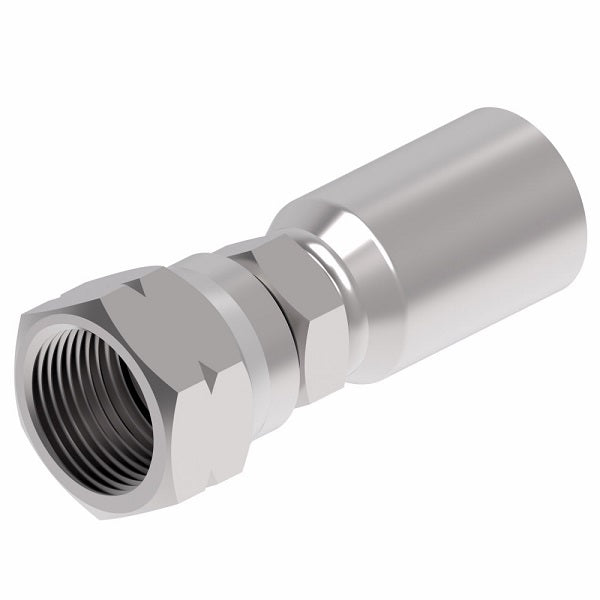

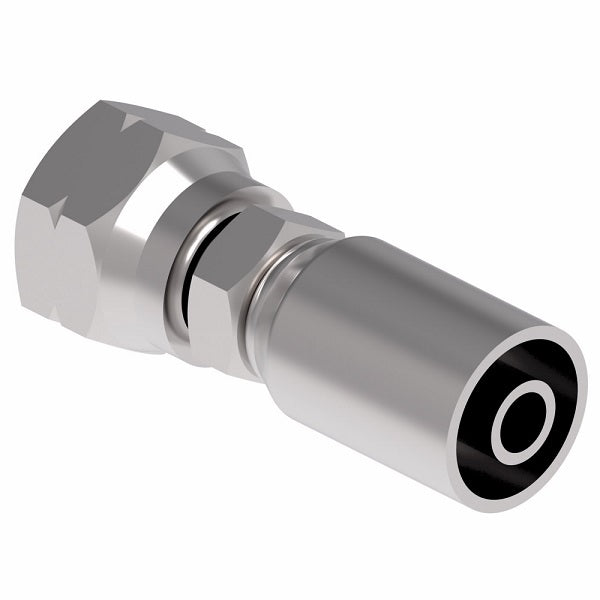

FC7216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel
FC7216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel
FC7216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel
FC7216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel

FC7216-1010S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel

$22.32 - $22.32
$22.32
$22.32 - $22.32
$22.32

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FC7216-1010S Danfoss
Shape (Orientation): Straight
Ends Configuration: 5/8in Female SAE 45 Flare, 5/8in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: 2807 Series  |   FC465 Series  |   S-TW Series  |   SC-TW Series
Technical Info:

Component Part Numbers

Complete Fitting
Part Number 		Nipple Assembly
Part Number 		Socket
Part Number 		Thread Hose Size A D E&Oslash Hex 1

 Hex 2
- FC6216-0403S - - -03 - - - - -
FC7216-0404S FC6216-0404S FC3596-04S 7/16-20 -04 1.55" 0.96" 0.12" 9/16" 7/16"
- FC6216-0505S FC3443-04S 1/2-20 -05 1.50" 1.01" 0.19" 5/8" 1/2"
FC7216-0606S FC6216-0606S FC3443-05S 5/8-18 -06 1.63" 1.14" 0.25" 3/4" 9/16"
FC7216-0808S FC6216-0808S FC3596-08S 3/4-16 -08 2.10" 1.21" 0.34" 7/8" 11/16"
- FC6216-1008S - - -08 - - - - -
FC7216-1010S FC6216-1010S FC3443-08S 7/8-14 -10 2.21" 1.32" 0.44" 1" 13/16"
FC7216-1212S FC6216-1212S FC3596-12S 1-1/16-14 -12 2.29" 1.41" 0.56" 1-1/4" 1"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
