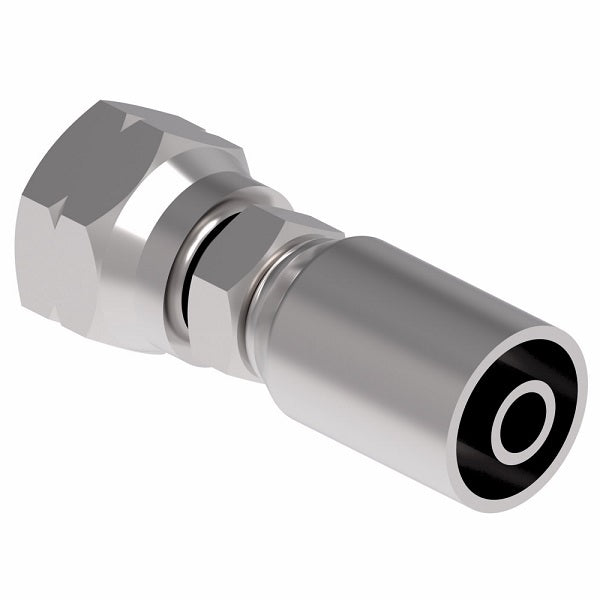

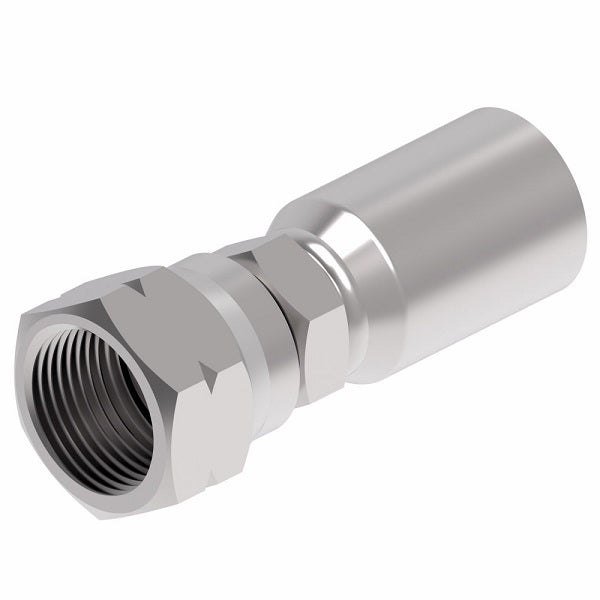

FC7216-1212S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Female SAE 45° Swivel x -12 Hose Barb | Steel

FC7216-1212S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Female SAE 45° Swivel x -12 Hose Barb | Steel

Name: FC7216-1212S Aeroquip by Danfoss | Female SAE 45° Swivel PTFE Crimp Fitting | FC Series | Complete Fitting | -12 Female SAE 45° Swivel x -12 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FC7216-1212S Danfoss
Price: 39.58 USD
Availability: InStock

$39.58 - $39.58

$39.58

$39.58 - $39.58

$39.58

Aeroquip® by Danfoss
Teflon* PTFE Crimp Fitting - Female SAE 45° Swivel - Straight - Steel

FC Series

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FC7216-1212S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female SAE 45 Flare, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	2807 Series \| FC465 Series \| S-TW Series \| SC-TW Series

Technical Info:
Crimp Fitting Socket Data.PDF


	Component Part Numbers
Complete Fitting Part Number	Nipple Assembly Part Number	Socket Part Number	Thread	Hose Size	A	D	E&Oslash	Hex 1	Hex 2
-	FC6216-0403S	-	-	-03	-	-	-	-	-
FC7216-0404S	FC6216-0404S	FC3596-04S	7/16-20	-04	1.55"	0.96"	0.12"	9/16"	7/16"
-	FC6216-0505S	FC3443-04S	1/2-20	-05	1.50"	1.01"	0.19"	5/8"	1/2"
FC7216-0606S	FC6216-0606S	FC3443-05S	5/8-18	-06	1.63"	1.14"	0.25"	3/4"	9/16"
FC7216-0808S	FC6216-0808S	FC3596-08S	3/4-16	-08	2.10"	1.21"	0.34"	7/8"	11/16"
-	FC6216-1008S	-	-	-08	-	-	-	-	-
FC7216-1010S	FC6216-1010S	FC3443-08S	7/8-14	-10	2.21"	1.32"	0.44"	1"	13/16"
FC7216-1212S	FC6216-1212S	FC3596-12S	1-1/16-14	-12	2.29"	1.41"	0.56"	1-1/4"	1"

* Teflon™ is a trademark of The Chemours Company FC, LLC used under license by Eaton.
