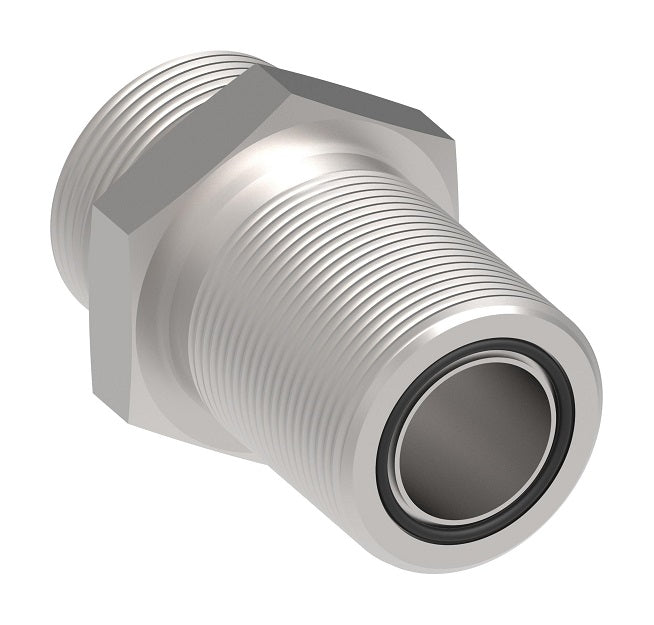

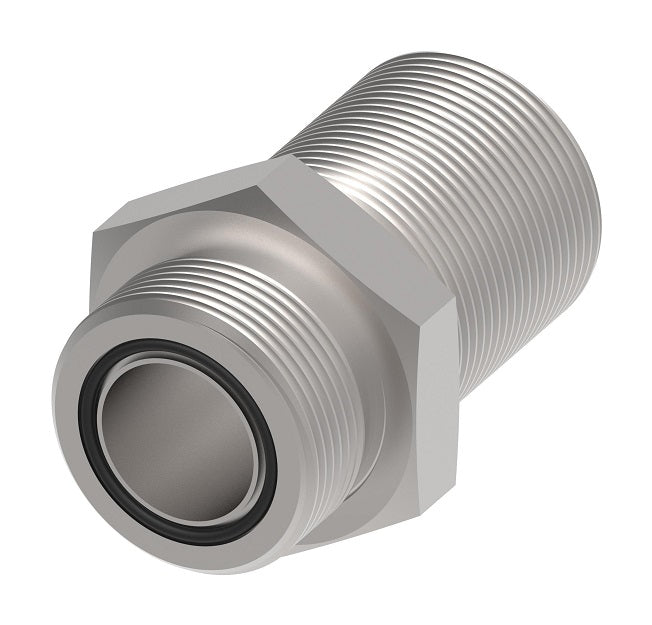

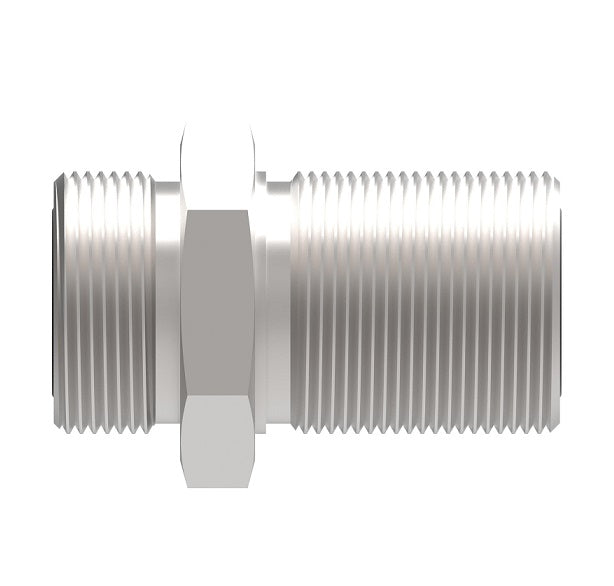

FF1994H4-0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel
FF1994H4-0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel
FF1994H4-0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel
FF1994H4-0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

FF1994H4-0606S Aeroquip by Danfoss | Male ORS/ORS Bulkhead Adapter without Nut | -06 Male O-Ring Face Seal x -06 Male O-Ring Face Seal | Steel

$15.45 - $15.45
$15.45
$15.45 - $15.45
$15.45

Aeroquip® by Danfoss
Male ORS/ORS Bulkhead Adapter
Male O-Ring Face Seal x Male O-Ring Face Seal
Straight

Formerly Weatherhead Series 4325x

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF1994H4-0606S Danfoss
Brand: Aeroquip
Ends Configuration: 3/8in Male O-Ring Face Seal, 3/8in Male O-Ring Face Seal, Some Ends Match
Material(s): Steel
Specifications:
  • Ref. SAE 520601
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Steel
Part Number
without Nut		 Tube OD Thread T1 Thread T2 A B Hex 1
FF1994T0404S - 0.25" 9/16-18 9/16-18 1.90" 1.24" 0.81"
FF1994T0606S FF1994H4-0606S 0.38" 11/16-16 11/16-16 2.09" 1.34" 1.00"
FF1994T0608S - 0.38" 11/16-16 13/16-16 2.24" 1.44" 1.12"
FF1994T0808S FF1994H4-0808S 0.50" 13/16-16 13/16-16 2.30" 1.44" 1.12"
FF1994T1010S FF1994H4-1010S 0.63" 1-14 1-14 2.62" 1.60" 1.31"
FF1994T1212S FF1994H4-1212S 0.75" 1-3/16-12 1-3/16-12 2.72" 1.64" 1.50"
FF1994T1616S FF1994H4-1616S 1.00" 1-7/16-12 1-7/16-12 2.76" 1.66" 1.75"
FF1994T2016S - 1.25" 1-11/16-12 1-7/16-12 2.76" 1.66" 1.75"
FF1994T2020S - 1.25" 1-11/16-12 1-11/16-12 2.76" 1.66" 2.00"
FF1994T2424S - 1.50" 2-12 2-12 2.76" 1.66" 2.38"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
