FJX90-14-16-R5 by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 90 Degree Bent Tube | Swivel | for 7/8" Hose ID

Save $24.66

$61.65

$61.65 - $61.65

$61.65

$36.99

$36.99 - $36.99

$36.99

by Kurt Hydraulics
FJX90-R5 - 37 deg. JIC Female 90 deg. Bent Tube Swivel - R5 Couplings

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX90-14-16-R5 Kurt
Series:	R5 Series
Shape (Orientation):	90 Degree
Ends Configuration:	7/8in Hose Barb, 1in Female JIC
Special Properties:	Swivel, Jump Size

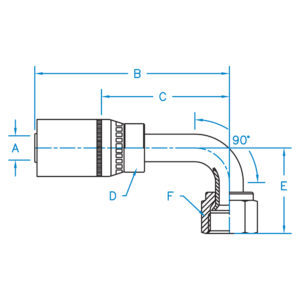

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX90-03-04-R5	0.187	1.893	0.953	7/16	0.875	9/16	3/16"	7/16-20
FJX90-03-05-R5	0.187	N/A	N/A	N/A	N/A	N/A	3/16	1/2-20
For FJX90-04-04-R5 Use: FJX90-04-04
For FJX90-04-05-R6 Use: FJX90-04-05
For FJX90-04-06-R7 Use: FJX90-04-06
FJX90-05-04-R5	0.312	3.025	1.715	5/8	0.830	9/16	5/16"	7/16-20
FJX90-05-05-R5	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FJX90-05-06-R5	0.312	3.174	1.864	5/8	0.906	11/16	5/16"	9/16-18
FJX90-07-06-R5	0.437	3.334	1.864	3/4	0.906	11/16	7/16"	9/16-18
For FJX90-08-08-R5 Use: FJX90-08-08
For FJX90-08-10-R6 Use: FJX90-08-10
FJX90-07-08-R5	0.437	3.626	2.156	7/8	1.130	7/8	7/16"	3/4-16
FJX90-10-10-R5	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FJX90-10-12-R5	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FJX90-14-16-R5	0.875	4.750	2.312	1-1/2	2.500	1-1/2	7/8"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
