K7300-16X25 Kuri-Tec by Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1" ID | 1.464" OD | 25ft Length

K7300-16X25 Kuri-Tec by Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1" ID | 1.464" OD | 25ft Length

Save $53.88 Save $53.88
$188.58
$188.58 - $188.58
$188.58
$134.70
$134.70 - $134.70
$134.70

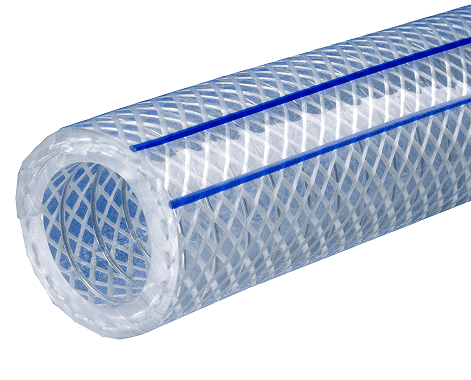

Kuriyama Kuri Tec® POLYWIRE® PLUS Series K7300 Hose Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose A unique crystal clear PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

Package Quantity: 25 FT

Specifications for Variant SKU: K7300-16X25 Kuriyama | 25 |
Brand: Kuri Tec
Series: K7300 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.464in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant

SPECIFICATIONS

Application: Pressure and vacuum applications which require excellent kink resistance, Ideal for applications which require the hose to withstand both high vacuum and pressure, Water transfer, Liquid food transfer, SAE Rating: N/A
Other Ratings: N/A Tube: The inner food contact surface is made with PVC compound formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement: High tensile yarns and helically-wound spring steel wire Cover: N/A
Temperature Range: +15 deg. F (-9 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), USDA(17)
Other Features:
  • Wire helix reinforcement prevents kinking or collapsing, hose diameter will not expand under normal rated working pressures.
  • 29.9" Hg vacuum rating @ 70 deg. F.
  • Electrogalvanized helical steel wire can be used for static dissipation (see below **).
  • Yarn reinforcement provides higher working pressure.
  • Heavy duty construction prevents hose O.D. from expanding and I.D. from collapsing.
  • Crystal clear - allows visual confirmation of product flow Glass-smooth interior - reduces material buildup.
  • Inner contact surface material is NSF certified for food applications (standard 51). It also meets other criteria such as 3A and USDA.
  • Resistant to chemicals (see chemical-resistance chart in Kuri Tec Catalog).
  • Self-extinguishing.
  • Non-marking.
  • Non-toxic.
  • Silicone-free.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg Min. Bend Radius
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils @ 70 deg. F
K7300-08X100 1/2" 12.7mm .906" 23.0mm 250 PSI 125 PSI 100 ft. 26 lbs. 2"
K7300-08X50 1/2" 12.7mm .906" 23.0mm 250 PSI 125 PSI 50 ft. 13 lbs. 2"
K7300-08X25 1/2" 12.7mm .906" 23.0mm 250 PSI 125 PSI 25 ft. 6.5 lbs. 2"
K7300-12X100 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 100 ft. 40 lbs. 2-1/2"
K7300-12X50 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 50 ft. 20 lbs. 2-1/2"
K7300-12X25 3/4" 19.1mm 1.196" 30.4mm 225 PSI 112 PSI 25 ft. 10 lbs. 2-1/2"
K7300-16X100 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 100 ft. 53lbs. 3-1/2"
K7300-16X50 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 50 ft. 26.5lbs. 3-1/2"
K7300-16X25 1" 25.4mm 1.464" 37.2mm 225 PSI 112 PSI 25 ft. 13.3 lbs. 3-1/2"
K7300-20X50 1-1/4" 31.8mm 1.780" 45.2mm 175 PSI 87 PSI 50 ft. 37 lbs. 4-1/2"
K7300-20X25 1-1/4" 31.8mm 1.780" 45.2mm 175 PSI 87 PSI 25 ft. 18.5 lbs. 4-1/2"
K7300-24X50 1-1/2" 38.1mm 2.030" 51.6mm 175 PSI 87 PSI 50 ft. 43 lbs. 5-1/2"
K7300-24X25 1-1/2" 38.1mm 2.030" 51.6mm 175 PSI 87 PSI 25 ft. 43 lbs. 5-1/2"
K7300-32X50 2" 50.8mm 2.600" 66.0mm 150 PSI 75 PSI 50 ft. 64 lbs. 7"
K7300-32X25 2" 50.8mm 2.600" 66.0mm 150 PSI 75 PSI 25 ft. 32 lbs. 7"
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. ** Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.
