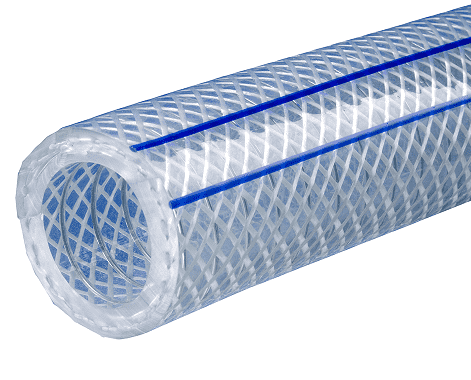

K7300-20X25 Kuri-Tec by Kuriyama | Polywire Plus K7300 Series | Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose | 1-1/4" ID | 1.780" OD | 25ft Length

Save $86.46

$302.61

$302.61 - $302.61

$302.61

$216.15

$216.15 - $216.15

$216.15

Kuriyama Kuri Tec® POLYWIRE® PLUS Series K7300 Hose Heavy Wall Wire-Yarn Reinforced Vacuum/Pressure Hose A unique crystal clear PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

Package Quantity: 25 FT

Specifications for Variant SKU: K7300-20X25 Kuriyama \| 25 \|
Brand:	Kuri Tec
Series:	K7300 Series
Hose Color(s):	White/Off-White & Clear/Semi-Clear
Internal Diameter:	1.25in
Outer Diameter:	1.78in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant

SPECIFICATIONS

Other Features:
Application:	Pressure and vacuum applications which require excellent kink resistance, Ideal for applications which require the hose to withstand both high vacuum and pressure, Water transfer, Liquid food transfer,	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	The inner food contact surface is made with PVC compound formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13) and RoHS(15) criteria.
Reinforcement:	High tensile yarns and helically-wound spring steel wire	Cover:	N/A
Temperature Range:	+15 deg. F (-9 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), FDA(03), NSF(13), RoHS(15), USDA(17)
Wire helix reinforcement prevents kinking or collapsing, hose diameter will not expand under normal rated working pressures. 29.9" Hg vacuum rating @ 70 deg. F. Electrogalvanized helical steel wire can be used for static dissipation (see below **). Yarn reinforcement provides higher working pressure. Heavy duty construction prevents hose O.D. from expanding and I.D. from collapsing. Crystal clear - allows visual confirmation of product flow Glass-smooth interior - reduces material buildup. Inner contact surface material is NSF certified for food applications (standard 51). It also meets other criteria such as 3A and USDA. Resistant to chemicals (see chemical-resistance chart in Kuri Tec Catalog). Self-extinguishing. Non-marking. Non-toxic. Silicone-free.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg	Min. Bend Radius
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coils		@ 70 deg. F
K7300-08X100	1/2"	12.7mm	.906"	23.0mm	250 PSI	125 PSI	100 ft.	26 lbs.	2"
K7300-08X50	1/2"	12.7mm	.906"	23.0mm	250 PSI	125 PSI	50 ft.	13 lbs.	2"
K7300-08X25	1/2"	12.7mm	.906"	23.0mm	250 PSI	125 PSI	25 ft.	6.5 lbs.	2"
K7300-12X100	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	100 ft.	40 lbs.	2-1/2"
K7300-12X50	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	50 ft.	20 lbs.	2-1/2"
K7300-12X25	3/4"	19.1mm	1.196"	30.4mm	225 PSI	112 PSI	25 ft.	10 lbs.	2-1/2"
K7300-16X100	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	100 ft.	53lbs.	3-1/2"
K7300-16X50	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	50 ft.	26.5lbs.	3-1/2"
K7300-16X25	1"	25.4mm	1.464"	37.2mm	225 PSI	112 PSI	25 ft.	13.3 lbs.	3-1/2"
K7300-20X50	1-1/4"	31.8mm	1.780"	45.2mm	175 PSI	87 PSI	50 ft.	37 lbs.	4-1/2"
K7300-20X25	1-1/4"	31.8mm	1.780"	45.2mm	175 PSI	87 PSI	25 ft.	18.5 lbs.	4-1/2"
K7300-24X50	1-1/2"	38.1mm	2.030"	51.6mm	175 PSI	87 PSI	50 ft.	43 lbs.	5-1/2"
K7300-24X25	1-1/2"	38.1mm	2.030"	51.6mm	175 PSI	87 PSI	25 ft.	43 lbs.	5-1/2"
K7300-32X50	2"	50.8mm	2.600"	66.0mm	150 PSI	75 PSI	50 ft.	64 lbs.	7"
K7300-32X25	2"	50.8mm	2.600"	66.0mm	150 PSI	75 PSI	25 ft.	32 lbs.	7"

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. ** Caution: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
